Home page » Electronics»Smart home»Security cameras»Dahua HFW3549T1-ZAS-PV-S5 IP Network camera 5MP / 2.7-13.5

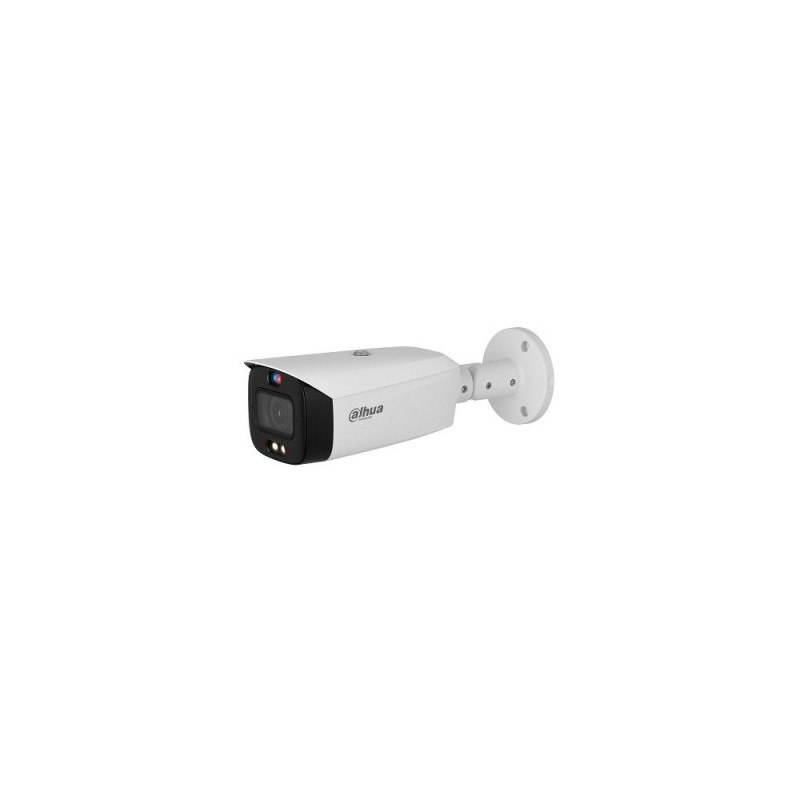

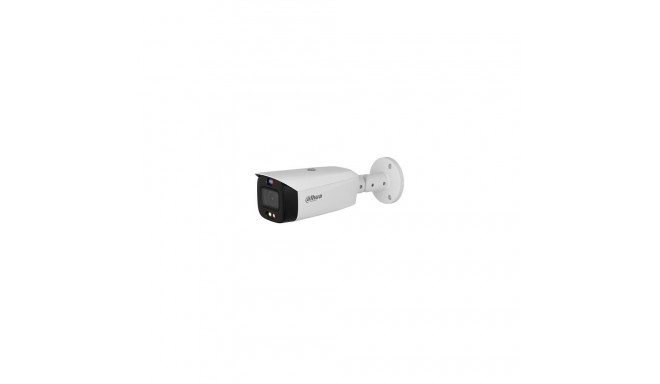

Dahua HFW3549T1-ZAS-PV-S5 IP Network camera 5MP / 2.7-13.5

579 €

Monthly payment starting from 19,73 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Camera Image Sensor 1/2.7" CMOS Max. Resolution 2960 (H) x 1668 (V) ROM 256 MB RAM 1 GB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s Min. Illumination 0.003 lux@F1.0 (Color, 30 IRE) 0.0003 lux@F1.0 (B/W, 30 IRE)

Warning: Last items in stock!

Add to cart

Delivery in 3-5 working days

Free delivery

14 14 days return policy when purchasing online

Camera

Image Sensor
1/2.7" CMOS

Max. Resolution
2960 (H) x 1668 (V)

ROM
256 MB

RAM
1 GB

Scanning System
Progressive

Electronic Shutter Speed
Auto/Manual 1/3 s–1/100,000 s

Min. Illumination
0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

56 dB

Illumination Distance
Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control
Auto; Manual

Illuminator Number
2 (IR LED)
2 (warm light)

Angle Adjustment
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type
Motorized vari-focal

Lens Mount
?16

Focal Length
2.7 mm–13.5 mm

Max. Aperture
F1.0

Field of View
H: 113°–36°
V: 57°–20°
D: 137°–40°

Iris Control
Fixed

Close Focus Distance
1.5 m (4.92 ft)

DORI Distance

Lens Detect Observe Recognize Identify
W 65.2 m (213.91 ft) 26.1 m (85.63 ft) 13.0 m (42.65 ft) 6.5 m (21.33 ft)
T 186.6 m (612.20 ft) 74.6 m (244.75 ft) 37.3 m (122.38 ft) 18.7 m (61.35 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

IVS (Perimeter Protection)
Intrusion, tripwire (the two functions support the classification and accurate detection of vehicles and humans)

SMD
SMD 4.0

AcuPick
Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

AI SSA
Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

Smart Search
Works together with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos.

Video

Video Compression
H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

Smart Codec
Smart H.265+; Smart H.264+

AI Coding
AI H.265; AI H.264

Video Frame Rate
Main stream: 2880 x 1620/2960 x 1668@(1–20 fps)/2688 x 1520 @(1–30 fps)
Sub stream: 704 x 576@(1–25 fps)/704 x 480@(1–30 fps)
Third stream: 1920 x 1080@(1–25/30 fps)
The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability
3 streams

Resolution
5M (2880 x 1620/2960 x 1668)
4M (2688 x 1520/2560 x 1440)
3M (2304 x 1296/2048 x 1536)
1080p (1920 x 1080)
1.3M (1280 x 960)
720p (1280 x 720)
D1 (704 x 576/704 x 480)
VGA (640 x 480)
CIF (352 x 288/352 x 240)

Bit Rate Control
CBR/VBR/ABR

Video Bit Rate
H.264: 3 kbps–16384 kbps
H.265: 3 kbps–16384 kbps

Day/Night
Auto(ICR)/Color/B/W

BLC
Yes

HLC
Yes

WDR
120 dB

Scene Self-adaptation (SSA)
Yes

White Balance
Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control
Auto/Manual

Noise Reduction
3D NR

Motion Detection
OFF/ON (4 areas, rectangular)

Region of Interest (RoI)
Yes (4 areas)

Image Stabilization
Electronic Image Stabilization (EIS)

Smart Illumination
Yes

Defog
Yes

Image Rotation
0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower)

Mirror
Yes

Privacy Masking
4 areas

Audio

Built-in MIC
Yes, built-in dual Mic

Built-in Speaker
Yes, built-in speaker

Audio Compression
G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; security exception

Network

Network Port
RJ-45 (10/100 Base-T)

SDK and API
Yes

Network Protocol
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability
ONVIF (Profile S; Profile G; Profile T); CGI

User/Host
20 (Total bandwidth: 64 M)

Storage
FTP; SFTP; Micro SD card (support max. 512 GB); NAS

Browser
IE: IE 9/11
Chrome
Firefox

Management Software
SmartPSS Lite; DSS; DMSS

Mobile Client
iOS; Android

Cyber Security
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs;
IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Certification

Certifications
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port

Audio Input
1 channel (RCA port)

Audio Output
1 channel (RCA port)

Alarm Input
1 channel in: wet contact, 5 mA 3–5 VDC

Alarm Output
1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply
12 VDC/PoE (802.3af)

Power Consumption
Basic: 2.8 W (12 VDC); 3.6 W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 7.9 W (12 VDC); 9.2 W (PoE)

Environment

Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity
< 95% (RH), non-condensing

Storage Temperature
–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity
< 95% (RH), non-condensing

Protection
IP67


Color White
Materials Plastic, aluminium
Manufacturer Dahua

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 99,99 €
  • Additional warranty (2 years) - 69,99 €
  • Insurance (1 year) - 89,99 €
  • Insurance (2 years) - 159,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
1.35 kg
Package width
15 cm
Package height
15 cm
Package length
20 cm

Product codes

EAN
6923172502728
