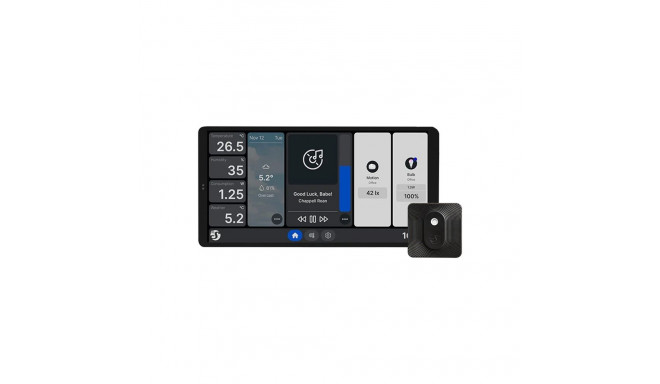

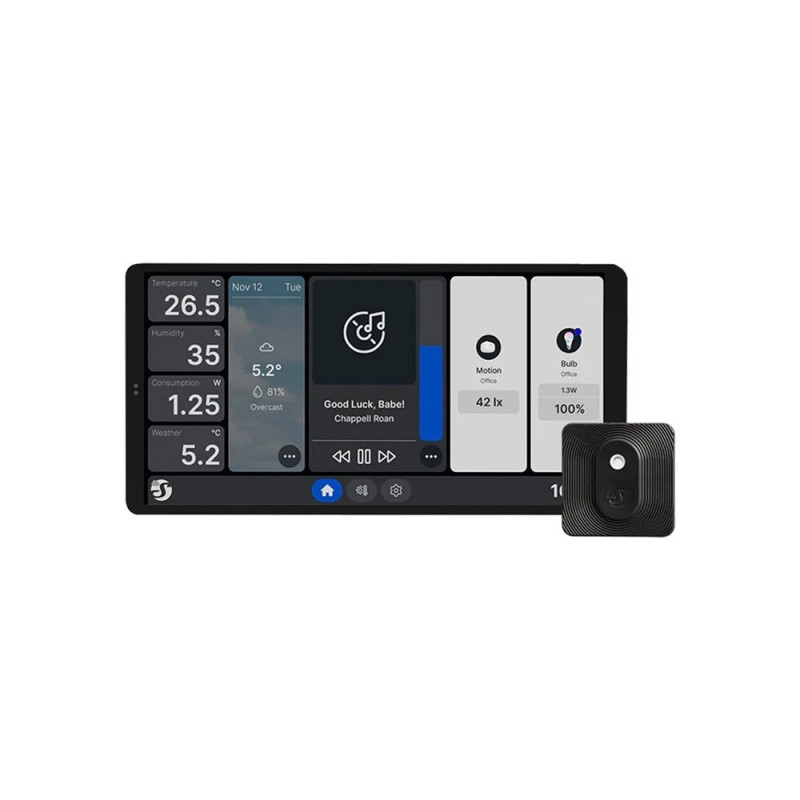

Dual Control Panel Shelly Wall Display X2 WiFi/BLU (black) + BLU H&T

Shelly Wall Display X2 is a control panel with a 6.95-inch color touchscreen and built-in 5 amp relay that allows you to control lighting, monitor energy consumption, control temperature and humidity, and create automation scenes. With integration with the Shelly Smart Control app and Home Assistant, you gain access to full functionality from a single interface. The included Shelly BLU H&T sensor allows for precise environmental readings and automatic device responses. The product requires no additional hub and connects directly via Wi-Fi or Bluetooth. It can also act as a Bluetooth gateway for other BLE devices. You can successfully mount it in a wall box.

Customizable screen

The 6.95" color touchscreen display with provides convenient control and intuitive navigation. You can customize the home screen to display up to 6 of your most frequently used devices or scenes. Gesture operation and switching between widescreen and portrait modes make it easy to use in different installation conditions. The display can operate in screensaver mode, which works well in representative spaces. In addition, bookmarks for favorite devices, scenes and groups are available.

Temperature and humidity control

Working with the Shelly BLU H&T sensor, the panel functions as a local thermostat. The collected temperature and humidity data allows real-time control of heating, ventilation or air conditioning. This solution makes it easier to maintain optimal indoor conditions and respond to environmental changes, such as preventing mold in humid rooms. Automations can include activating fans, dehumidifiers or humidifiers. The device can also be used in greenhouses to maintain an optimal microclimate for plants.

Monitoring energy consumption

The panel works with Shelly PM devices and allows you to monitor power consumption for each room. This will help you identify energy-intensive equipment and optimize energy consumption, which in turn translates into lower bills and greater energy efficiency. It is also possible to remotely respond to abnormal energy consumption, which increases control and security.

Integration with automation systems

The device works with the Shelly Smart Control app and the Home Assistant system. This allows you to remotely manage all devices, create schedules and automations, and control your home from anywhere in the world. The system also supports MQTT and webhook shares (up to 20 with the ability to assign 2 URLs), giving you full freedom of integration in advanced installations.

Multifunctional sensors

With a light intensity sensor, humidity sensor, temperature sensor, microphone, proximity sensor and G-sensor, you can create advanced automation scenes depending on room conditions. Lights can turn on automatically when motion is detected or at a certain brightness level. You can also receive alerts on sudden temperature changes for added security.

Control of devices and groups

The product allows you to directly control individual devices, groups and scenes assigned to specific rooms. All the most important functions are always at hand on the home screen. An easy-to-read interface with navigation tabs for rooms, groups and scenes enhances the user experience in larger home systems.

Audio and notification support

An integrated 0.8-watt speaker allows you to play music, notifications, alarms and other audio signals. The device can be connected to Bluetooth speakers or a Sonos system.

General
Manufacturer Shelly
Model WDX2(SL)+BLUHT(black)
Physical parameters
Dimensions (H x W x D) 87 x 178 x 33 mm
Weight 256 g
Touch screen 5-point capacitive screen
Maximum tightening torque of screw terminals 0.4 Nm / 3.5 lbin
Wire cross section 0.2 to 2.5 mm² (solid wire, multi-stranded wire, with bushings)
Wire stripping length 6 to 7 mm
Mounting Wall box
Housing material Plastic, aluminum, glass
Case color Black
Speaker 0,8 W ×1
Environmental conditions
Operating temperature -20 °C to 40 °C
Operating humidity 30% to 70% RH
Maximum operating altitude 2000 m
Electrical parameters
Power supply 230 VAC, 50/60 Hz
Power consumption < 1 W
Power supply via USB-C 5V DC, 1A
Output parameters
Maximum switching voltage 230 VAC
Maximum switching current 5 A
Sensors and measurements
Internal temperature sensor No
Ambient temperature sensor Yes
Humidity sensor Yes
Light sensor Yes
Microphone Yes
Overload sensor (G-sensor) Yes
Proximity sensor Yes
Wi-Fi
Protocol 802.11 b/g/n
Bandwidth 2412 - 2472 MHz
Maximum transmitting power < 20 dBm
Range Up to 30 m indoors and 50 m outdoors (depending on local conditions)
Bluetooth
Protocol 5.0
Bandwidth 2402 - 2480 MHz
Maximum transmit power < 4 dBm
Range Up to 10 m indoors and 30 m outdoors (depending on local conditions)
Microprocessor unit
CPU SC7731E, quad-core A7 1.3 GHz
RAM 1 GB
Flash memory 4 GB
Operating system Android 8.1
Software features
Number of schedules 20
Webhooks (URL shares) 20 with the possibility of assigning 2 URLs per webhook
Scripting support No
MQTT support Yes
