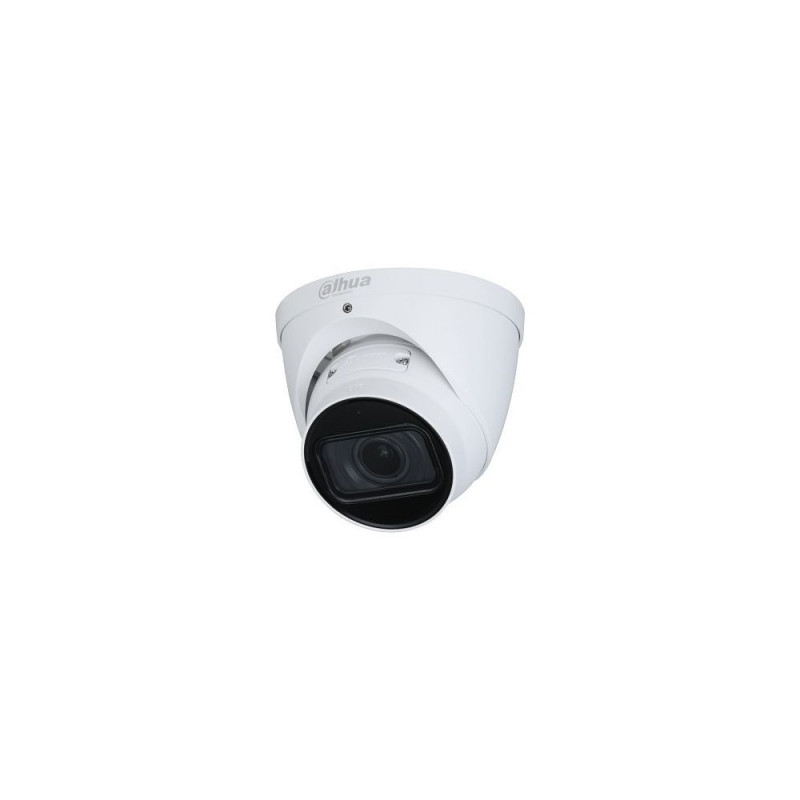

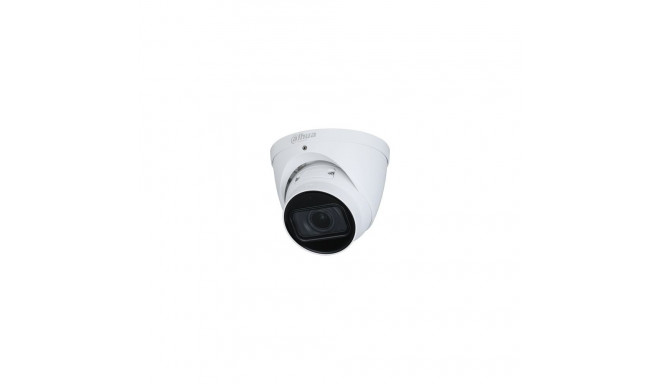

Dahua HDW2841T-ZS IP Network camera 8MP

Main info

Camera: Image Sensor: 1/2.7" CMOS Max. Resolution: 3840 (H) × 2160 (V) ROM: 128 MB RAM: 256 MB Scanning System: Progressive Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s Min. Illumination: 0.008 lux @ F1.5 (Color, 30 IRE) 0.0008 lux @ F1.

Product has been archived

Camera:
  • Image Sensor: 1/2.7" CMOS
  • Max. Resolution: 3840 (H) × 2160 (V)
  • ROM: 128 MB
  • RAM: 256 MB
  • Scanning System: Progressive
  • Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s
  • Min. Illumination:
    • 0.008 lux @ F1.5 (Color, 30 IRE)
    • 0.0008 lux @ F1.5 (B/W, 30 IRE)
    • 0 lux (Illuminator on)
  • S/N Ratio: >56 dB
  • Illumination Distance: 40 m (131.23 ft) (IR)
  • Illuminator On/Off Control: Auto; Manual
  • Illuminator Number: 2 (IR LED)
  • Pan/Tilt/Rotation Range:
    • Pan: 0°–360°
    • Tilt: 0°–78°
    • Rotation: 0°–360°
Lens:
  • Lens Type: Motorized vari-focal
  • Lens Mount: ?14
  • Focal Length: 2.7 mm–13.5 mm
  • Max. Aperture: F1.5
  • Field of View:
    • H: 113°–31°
    • V: 58°–18°
    • D: 138°–36°
  • Iris Control: Fixed
  • Close Focus Distance: 0.8 m (2.62 ft)
DORI Distance:
  • Wide (W):
    • Detect: 85.3 m (279.86 ft)
    • Observe: 34.1 m (111.88 ft)
    • Recognize: 17.1 m (56.10 ft)
    • Identify: 8.5 m (27.89 ft)
  • Telephoto (T):
    • Detect: 280.0 m (918.64 ft)
    • Observe: 112.0 m (367.45 ft)
    • Recognize: 56.0 m (183.73 ft)
    • Identify: 28.0 m (97.86 ft)
Intelligence:
  • IVS (Perimeter Protection): Intrusion, tripwire (supports the classification and accurate detection of vehicles and humans)
  • Smart Search: Works with Smart NVR to perform refined intelligent search, event extraction, and merging to event videos.
Video:
  • Video Compression: H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub-stream)
  • Smart Codec: Smart H.265+; Smart H.264+
  • Video Frame Rate:
    • Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps)
    • Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
  • Resolution: 3840 × 2160 (3840 × 2160); 3072 × 2048; 3072 × 1728; 2880 × 1620; 2688 × 1520; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
  • Bit Rate Control: CBR/VBR
  • Video Bit Rate: H.264: 32 kbps–8192 kbps, H.265: 12 kbps–8192 kbps
  • Day/Night: Auto (ICR); Color; B/W
  • BLC: Yes
  • HLC: Yes
  • WDR: 120 dB
  • White Balance: Auto; natural; street lamp; outdoor; manual; regional custom
  • Gain Control: Auto; Manual
  • Noise Reduction: 3D NR
  • Motion Detection: OFF/ON (4 areas, rectangular)
  • Region of Interest (RoI): Yes (4 areas)
  • Smart Illumination: Yes
  • Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
  • Mirror: Yes
  • Privacy Masking: 4 areas
Audio:
  • Built-in MIC: Yes
  • Audio Compression: G.711a; G.711Mu; PCM; G.726
Alarm:
  • Alarm Event: No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception
Network:
  • Network Port: RJ-45 (10/100 Base-T)
  • SDK and API: Yes
  • Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour
  • Interoperability: ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
  • User/Host: 20 (Total bandwidth: 48 M)
  • Storage: FTP; SFTP; Micro SD card (supports max. 256 GB); NAS
  • Browsers: IE, Chrome, Firefox
  • Management Software: Smart PSS; DSS; DMSS
  • Mobile Client: iOS; Android
Cyber Security:
  • Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Certifications:
  • CE-LVD: EN62368-1
  • CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
  • FCC: 47 CFR FCC Part 15, Subpart B
  • UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power:
  • Power Supply: 12 VDC/PoE (802.3af)
  • Power Consumption:
    • Basic: 2.8 W (12 VDC); 3.6 W (PoE)
    • Max. (H.265+ max. resolution + max. stream + WDR + IR intensity + IVS): 6.4 W (12 VDC); 7.6 W (PoE)
Environment:
  • Operating Temperature: –30 °C to +60 °C (–22 °F to +140 °F)
  • Operating Humidity: ?95%
  • Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F)
  • Storage Humidity: ?95%
  • Protection: IP67

Color White
Materials Plastic, aluminium
Manufacturer Dahua

Dimensions and weights

Gross weight
0.88 kg
Package width
15 cm
Package height
15 cm
Package length
20 cm

Product codes

EAN
6923172581495
