Shelly Wall Display XL 10.1" WiFi/BLU Control Panel (gray)

The Shelly Wall Display XL is a wall-mounted control panel with a 10.1" touchscreen display and built-in relay, designed for device operation and integration in modern residential and commercial installations. It provides lightning-fast response thanks to a quad-core processor, offers four fully customizable buttons, connects via Wi-Fi 6 (2.4/5 GHz) and Bluetooth 5.4, and supports media playback and Internet radio. Its added advantage is mounting in a standard wall box and remote management via the Shelly Smart Control app. All this makes the device perfect for homes, apartments, hotels or offices.

Touch screen and powerful processor

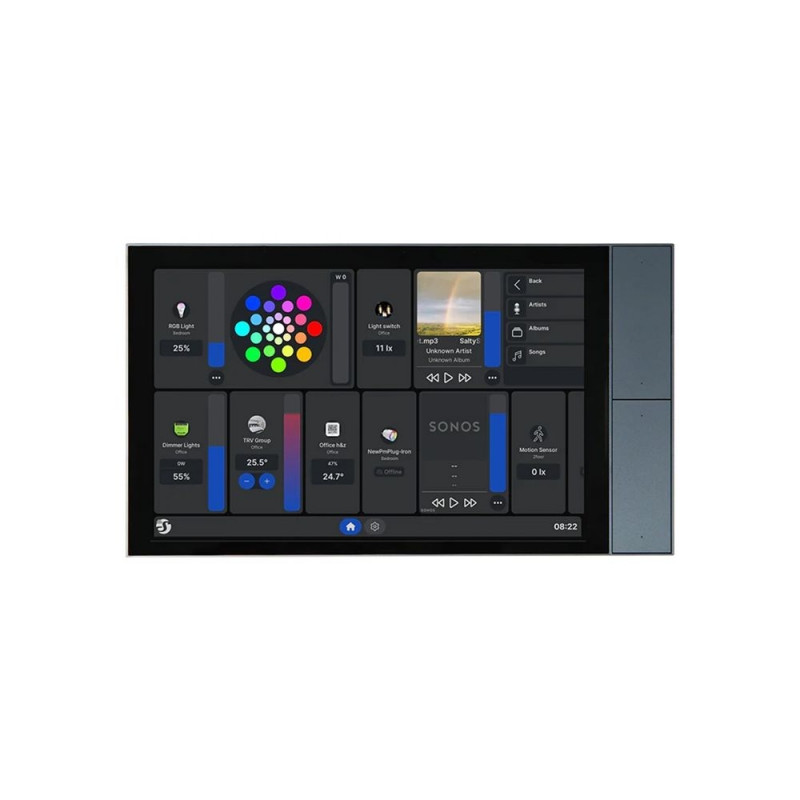

The 10.1" HD color display with responsive 5-point touch panel (G+FF) and 1280×752p resolution provides a clear image and intuitive control. It allows you to use large tiles, widgets and device groups, and is easy to use even for guests or children. In addition, a quad-core CPU (Rockchip RK3566 Cortex-A55), 2 GB RAM and 16 GB Flash memory running on Android 11 guarantee instant panel response, fast screen switching and scene reliability. Forget about stuttering and lags!

Convenient device control

The built-in relay allows you to directly control devices up to 1,500 watts - perfect for lamps, fans and more. You'll also have four fully customizable buttons to assign your favorite functions, such as turning off all lights, opening a lock or starting a scene. Physical control is convenient for homebuyers and guests - no apps or logins. In addition, the panel supports Home Assistant, MQTT and Webhooks, so you can easily integrate it into your smart home ecosystem and join existing automations. At the same time, full compatibility with the Shelly Smart Control app allows you to remotely control devices, create smart scenes and much more. Now, with just a few clicks, you can turn off the lights or adjust the air conditioning settings - even when you're out with friends or at work.

View room energy consumption

The dashboard allows you to monitor your room's energy consumption (from your Shelly Smart Control account) and provides readings from connected Shelly PM meters (sold separately). This makes it easy to identify the devices that consume the most electricity, which will help you change your habits and start saving on your bills!

Scenes, schedules and automations

Create and trigger scenes with a single touch or physical button. Schedules (up to 20) and Webhooks (up to 20, 5 URLs per hook) are available, making it easy to build complex scenarios. Make the fan turn on when the room temperature exceeds a certain threshold, and the lights turn off when you go to bed!

Multimedia and Internet radio at your fingertips

Built-in 2×2 W stereo speakers and an integrated media player and Internet radio allow you to play music, notifications or alarms. The panel also works with Bluetooth and Sonos speakers. Control the listening right from the screen or with the buttons and enjoy your favorite songs wherever you are - in the kitchen, bedroom or living room.

Manufacturer Shelly
Model WallDisplayXLG
Dimensions (H × W × D). 155.8 × 272.5 × 38.3 mm
Weight 920 g
Touchscreen 5-point capacitive, G+FF
Screen resolution 1280 × 752 px
Maximum clamping torque 0.4 Nm
Cable cross section 0.2-2.5 mm² / 24-14 AWG (solid, wire, sleeves)
Wire stripping length 15 mm
Mounting Wall box (EU standard)
Housing material Metal, PC coated, glass
Case color Gray
Speaker 2 × 2 W
Operating temperature From -20°C to 40°C
Operating humidity 30%-70% RH
Maximum operating altitude 2000 m
Power supply 100-240 V~ 50/60 Hz
Power consumption < 15 W
USB-C power supply 5 V⎓ / 3 A
Power button 1 button (screen on/off)
Function buttons 4 configurable control buttons
Maximum switching voltage 240 V~
Maximum switching current 5 A
AC output 100-240 V~ 50/60 Hz
USB-C output 5 V⎓ / 0.5 A
Internal temperature sensor No
Ambient temperature sensor No
Humidity sensor No
Light sensor Yes
Microphone Yes (four-microphone array)
G-sensor No
Proximity sensor Yes (≤ 1 m)
Wi-Fi Wi-Fi 6 Dual Band
Wi-Fi RF band 2.4 GHz and 5 GHz
Maximum RF Wi-Fi power < 20 dBm
Wi-Fi range Up to 30 m indoors / up to 50 m outdoors (depending on conditions)
Bluetooth 5.4
Bluetooth RF bandwidth 2402-2480 MHz
Maximum Bluetooth RF power < 4 dBm
Bluetooth range Up to 10 m indoors / up to 30 m outdoors (depending on conditions)
Processor Rockchip RK3566 Quad-core Cortex-A55
RAM 2 GB
Flash memory 16 GB
Operating system Android 11
Schedules 20
Webhooks (URL shares) 20 (up to 5 URLs per webhook)
Scripts No
MQTT Yes

Extended warranties and insurance:

  • Additional warranty + insurance (2 + 1 year) - 69,99 €
  • Additional warranty (2 years) - 49,99 €
  • Insurance (1 year) - 59,99 €
  • Insurance (2 years) - 99,99 €

Choose a suitable extended warranty and insurance in checkout..

Dimensions and weights

Gross weight
1.345 kg
Package width
18.7 cm
Package height
5 cm
Package length
33.3 cm

Product codes

EAN
3800238071691
Manufacturer code
WallDisplayXLG
