RACKMOUNT SERVER CHASSIS LANBERG ATX 350/10 19"/4U

Main info

Professional RACK server cases: efficient solution for IT infrastructureRACK server cases are an essential part of any professional IT installation, ensuring component protection, efficient cooling and perfect organization of the server infrastructur

Product has been archived

Professional RACK server cases:
efficient solution for IT infrastructure

RACK server cases are an essential part of any professional IT installation, ensuring component protection, efficient cooling and perfect organization of the server infrastructure. They are widely used in data centers, server rooms and industrial environments, ensuring optimal IT resource management and flexibility in the expansion of server systems in line with evolving business needs.

Lanberg offers RACK server cases that stand out for their high quality, reliability and competitive price. The Lanberg SC01-3504-10B case is compatible with ATX, Micro-ATX and Mini-ATX motherboards, providing a wide range of server hardware configurations. It is an ideal solution for both large data centers and smaller enterprises.

Efficient cooling system
and flexible disk configuration

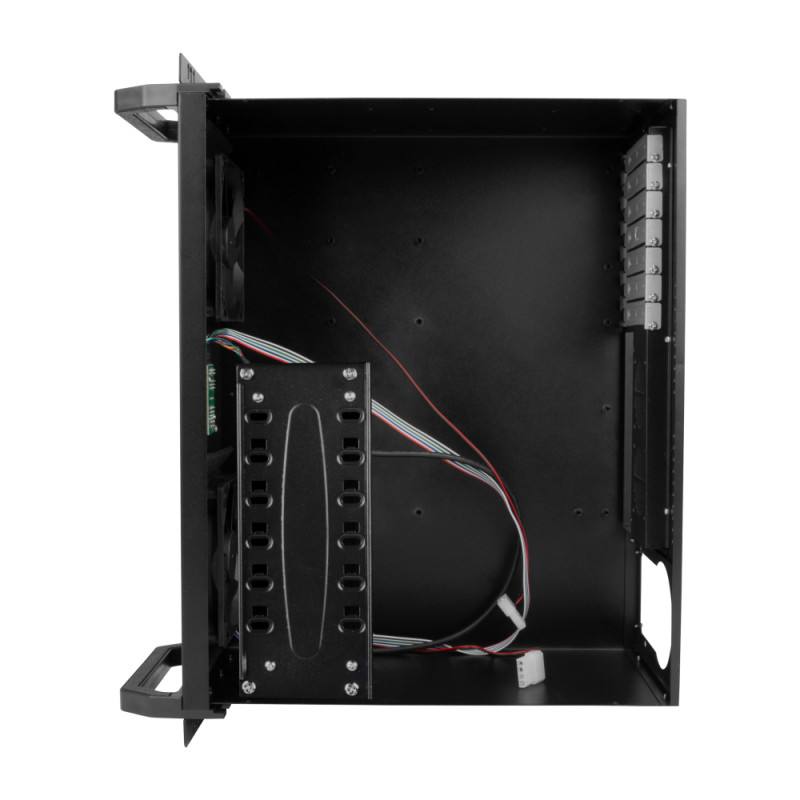

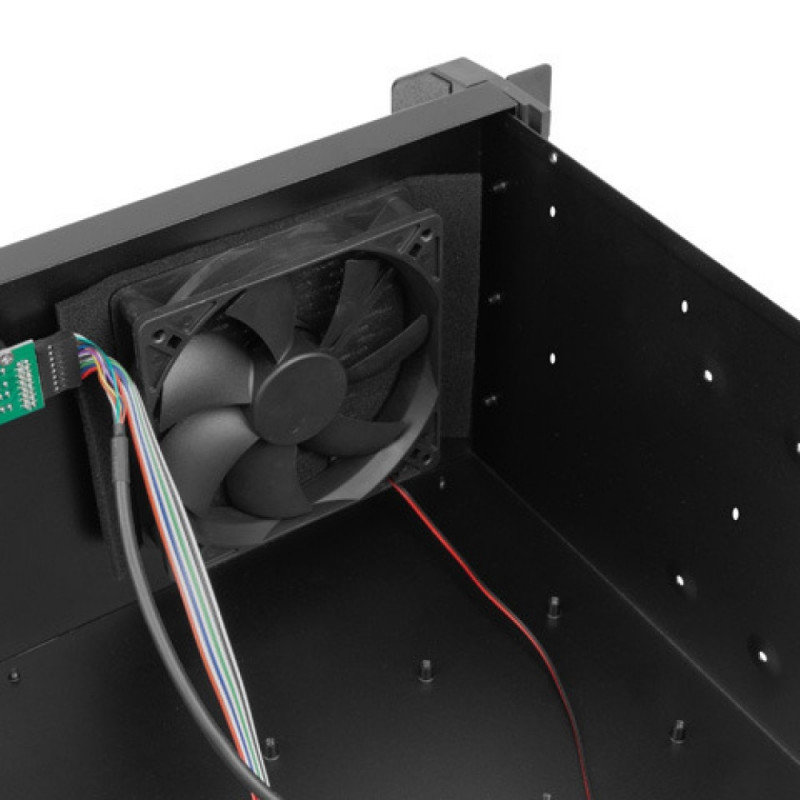

The Lanberg SC01-3504-10B server case is equipped with two 120 mm front fans for efficient cooling, with the additional option of installing two 60 mm fans at the rear. This allows for optimal operating temperatures even under heavy loads. A special bay, pre-installed at the factory, allows for the installation of up to six HDD/SSD disks, with the possibility of mounting them on both sides at the front of the case. Additionally, the inside of the case allows for mounting disks in the following configuration: 1x HDD, 1x SSD and 1x HDD/SSD, when the bay is not installed.

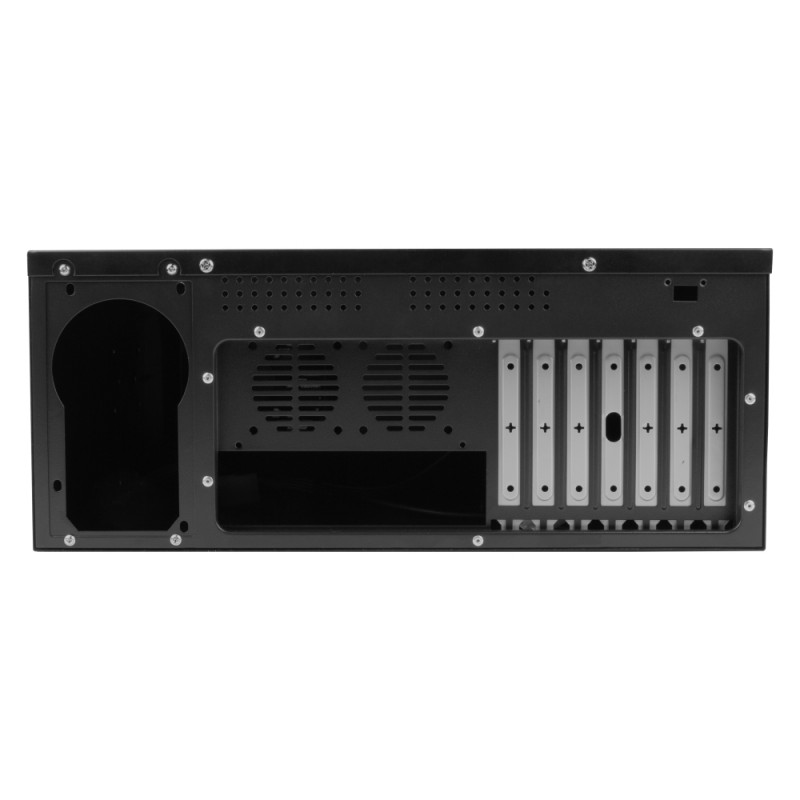

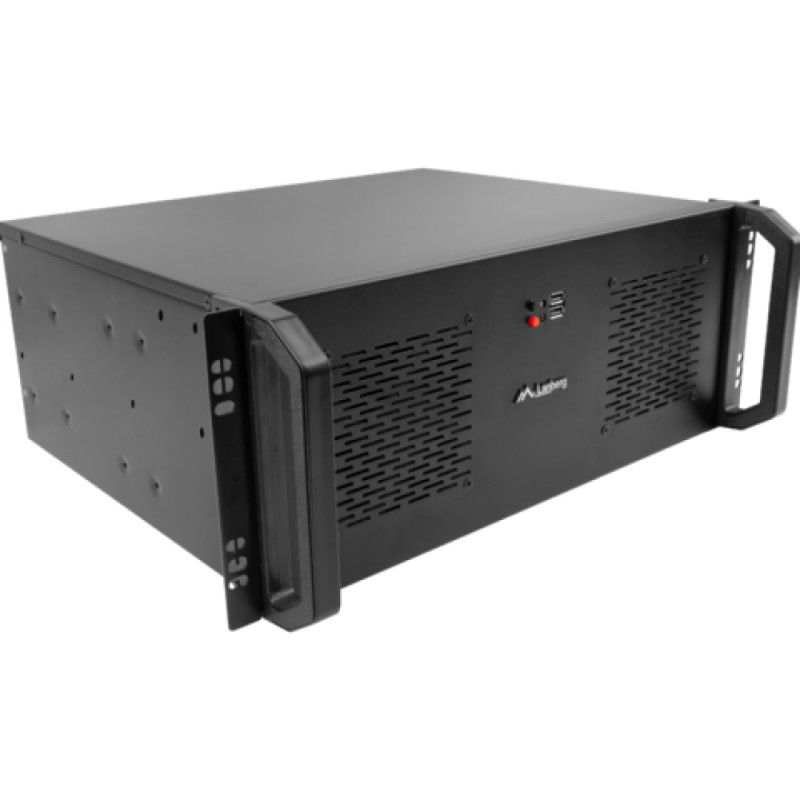

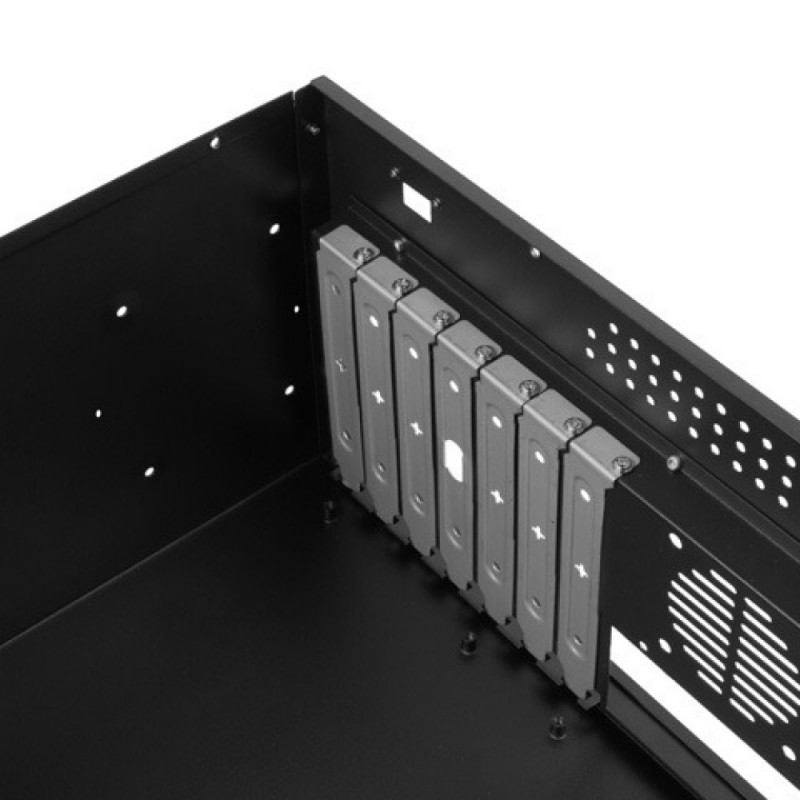

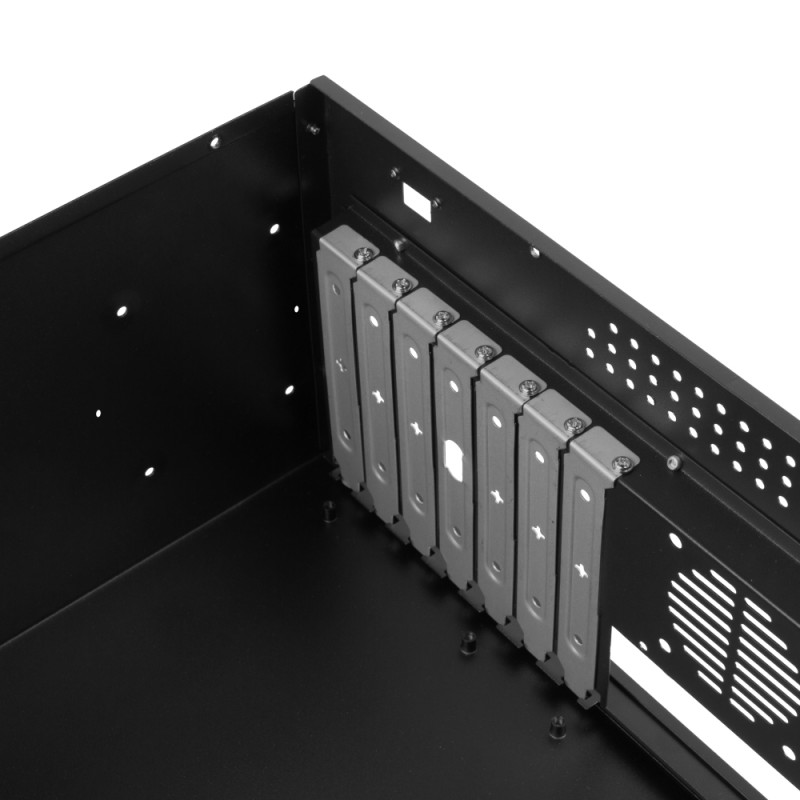

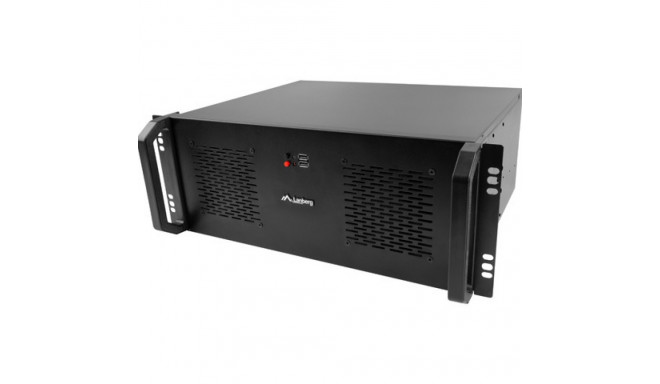

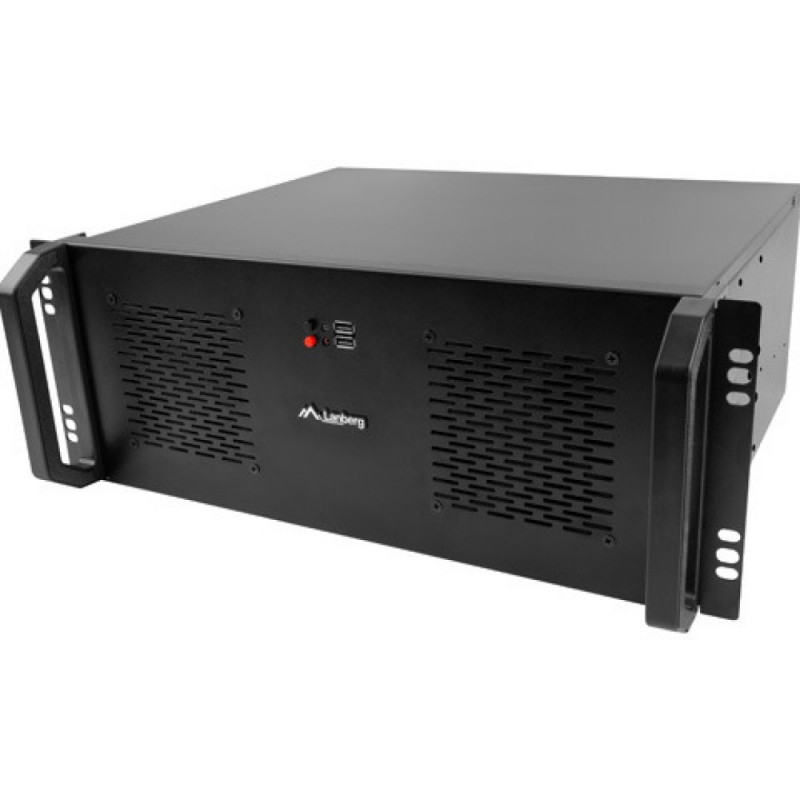

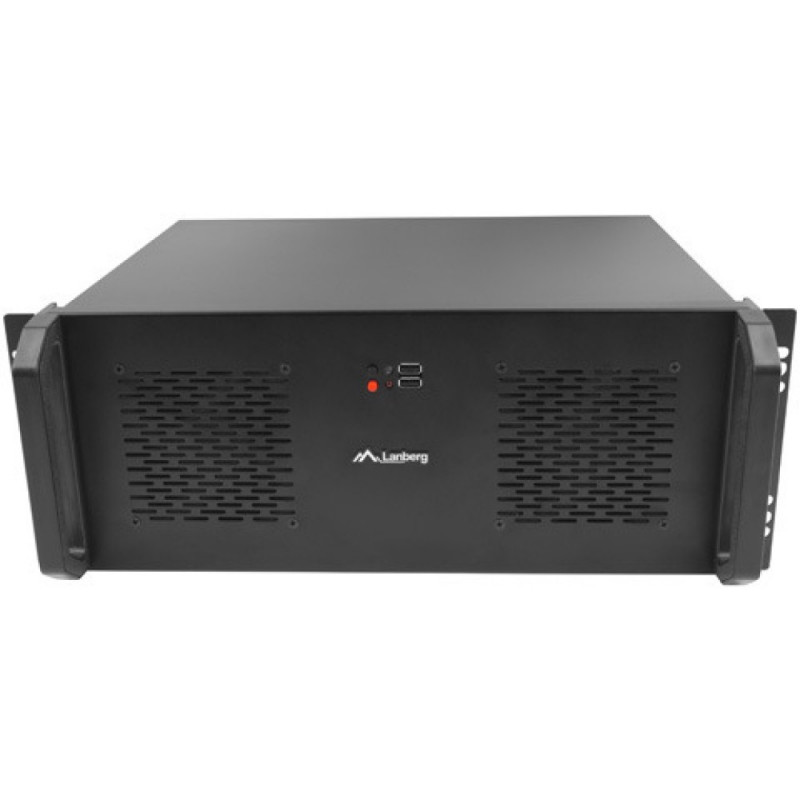

The front panel has two USB 2.0 ports, power and reset buttons, and LEDs to indicate the power status and HDD operation. The case also allows for the installation of up to seven expansion cards using standard PCI blanking plates.

Robust design and compact dimensions
for professional applications

Lanberg SC01-3504-10B is characterized by a compact design (350 x 430 x 177 mm, height 4U), ideal for professional server applications. It is made of durable 1.0 mm thick SPCC steel, which ensures the safety of the components and the stability of the entire case.

The set includes an replaceable front dust filter, which increases the comfort of use and protects the equipment from contamination, ensuring long-lasting and reliable operation.

Specyfikacja
ICT height 4 U
Motherboard form factor ATX, Micro-ATX, Mini-ATX
Size 19"
Number of installed fans 2
Installed fans 2x 120 mm
Number of 2.5" drive bays (SSD/HDD) 1
Number of 3.5" drive bays (SSD/HDD) 1
Number of expansion slots 7
Power supply included No
Protections Anti-dust filters
I/O panel Power & Reset button, USB 2.0 Typ-A x2
Work signal LED
Material Steel
Colour Black
Environment humidity 5 - 95 %
Length 350 mm
Width 430 mm
Height 177 mm
Weight 8.5 kg
Included Accessories Replaceable front dust filter

Dimensions and weights

Gross weight
8.5 kg
Package width
43 cm
Package height
17.7 cm
Package length
35 cm

Product codes

EAN
5901969427608
Manufacturer code
SC01-3504-10B
