RACK CABINET 19" WALL-MOUNT 4U+3U/540X200 LOW-PROFILE BLACK LANBERG (ASSEMBLED)

53,99 €

Monthly payment starting from 1,62 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Lanberg WAF1 wall mounted RACK cabinetsWAF1 series low-profile 19" Rack cabinet, is dedicated not only to low-current installations but also to other applications, making it an ideal solution for many industries. In particular, it will be perfect as
Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

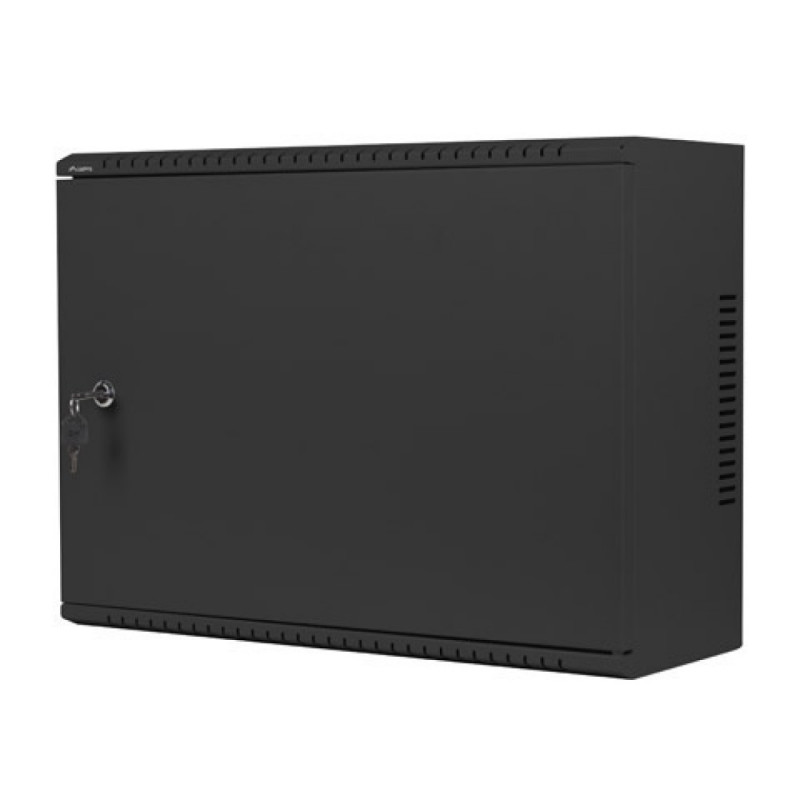

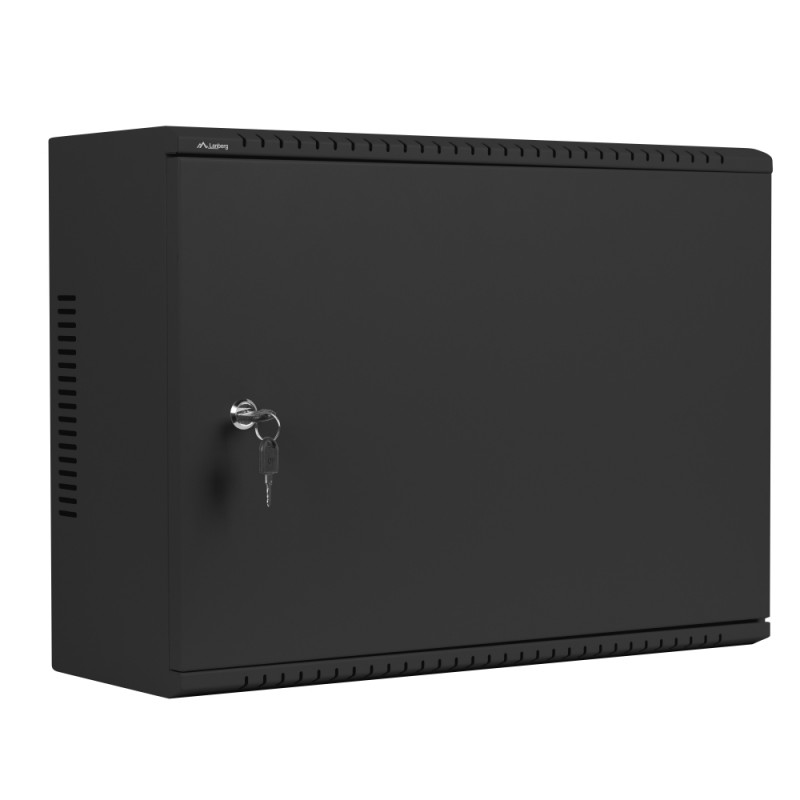

Lanberg WAF1 wall mounted RACK cabinets

WAF1 series low-profile 19" Rack cabinet, is dedicated not only to low-current installations but also to other applications, making it an ideal solution for many industries. In particular, it will be perfect as a cabinet for CCTV installations, where you can accommodate a DVR, PoE switch, PDU strip, and DIN rail devices. Our cabinet offers excellent organization, but also security for your equipment.

WAF1 cabinet - ready for assembly

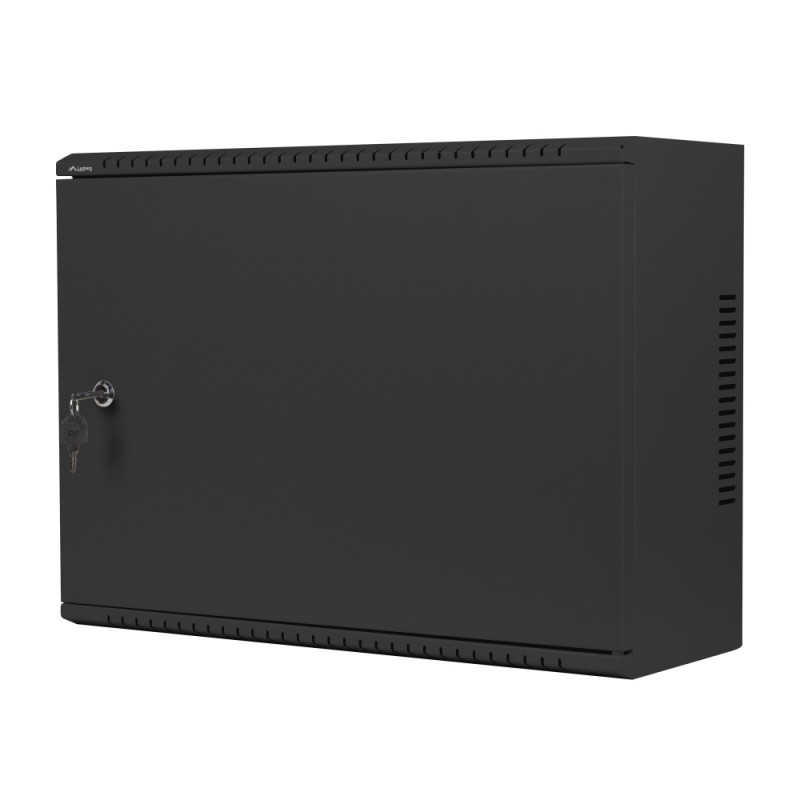

With its compact size, the cabinet does not take up much space, which is ideal for limited spaces, while at the same time it does not attract undue attention thanks to its discreet appearance. It is a solution that combines functionality, space saving and aesthetics.

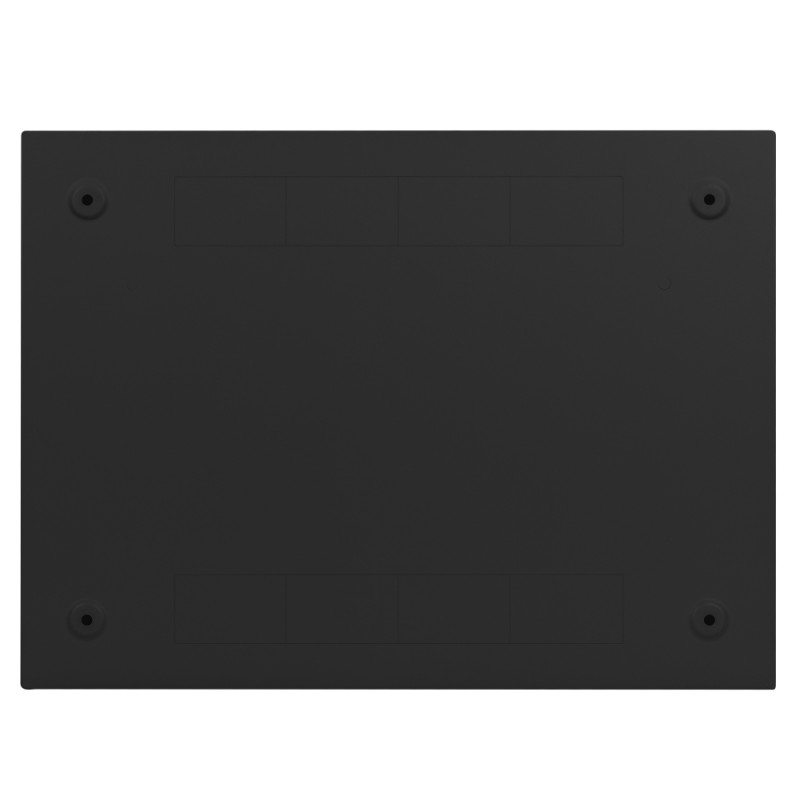

Our cabinet comes in a single carton, pre-assembled and ready to use right out of the box. You no longer have to worry about complicated assembly. The cabinet is equipped with four holes in the wall that allow it to be securely attached to the wall with wall plugs, providing added security and stability that your IT equipment will be stored in perfect order. This is an ideal solution for those who appreciate simplicity and functionality.

Small closet, big possibilities

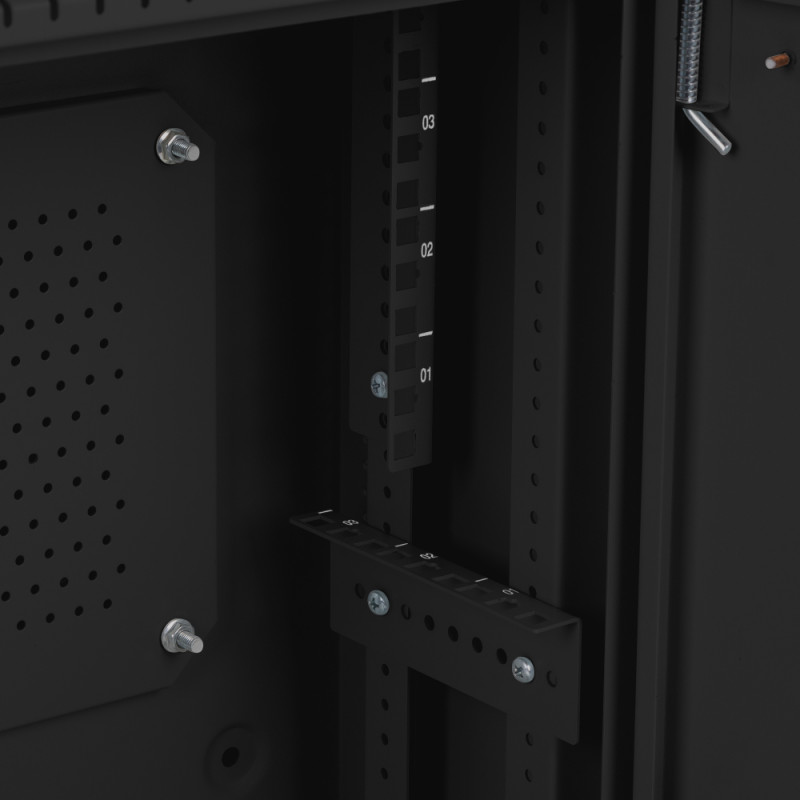

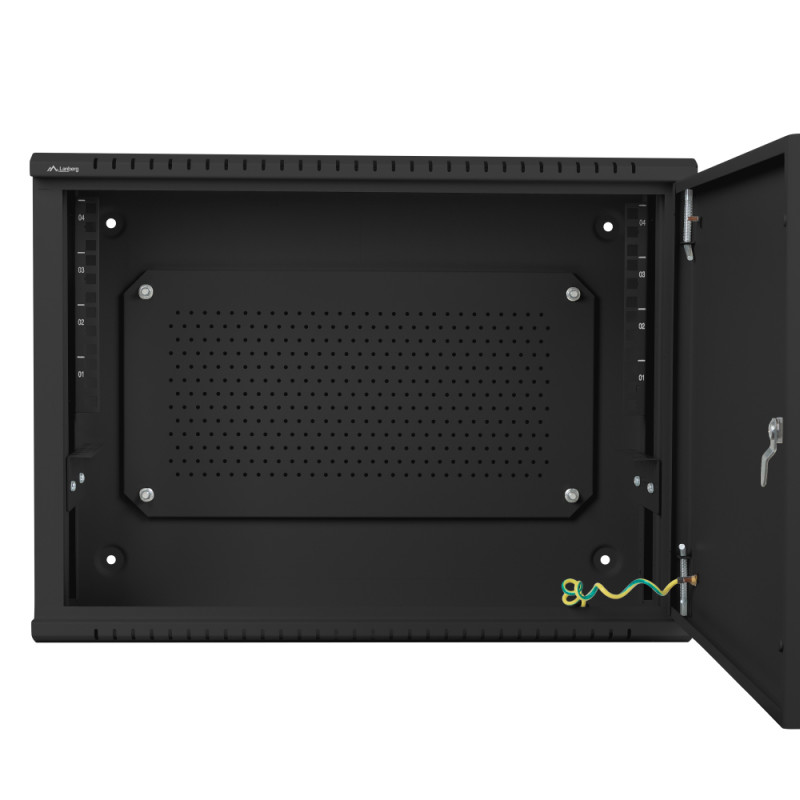

Our WAF1 cabinet guarantees the security of your equipment. It features two 4U high and 3U deep utility rails that allow you to mount your equipment both vertically and horizontally. This gives you complete freedom in the configuration and placement of your IT equipment, customizing the cabinet to your needs. An ideal solution for those who need flexibility in organizing their equipment.

In addition, our cabinet is equipped with double-sided opening doors, which make it easier to access the interior and handle equipment. With such practical solution cabinet makes maintenance and management of IT equipment much easier.
Vents

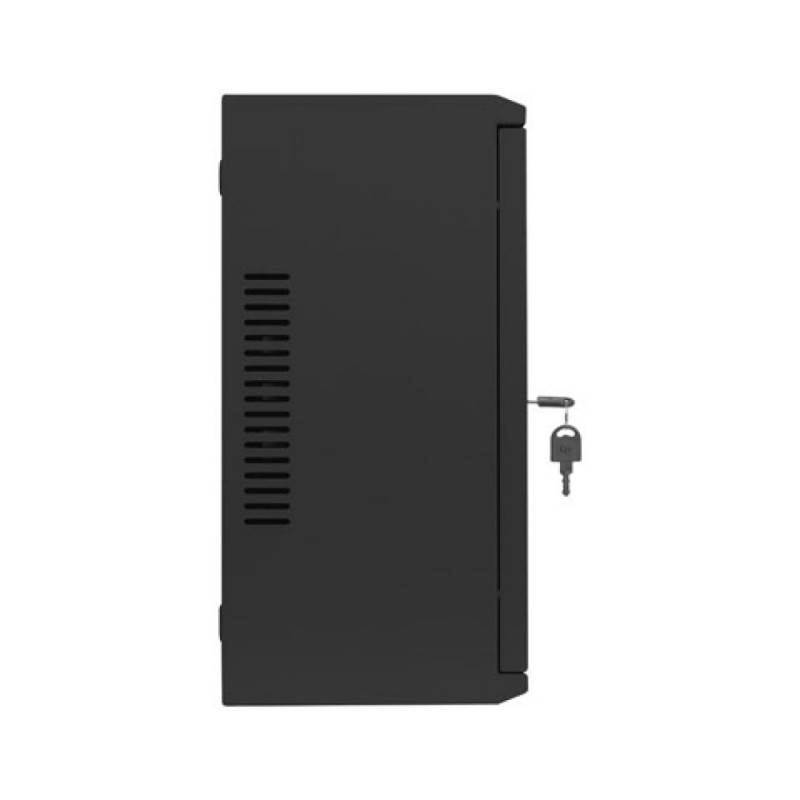

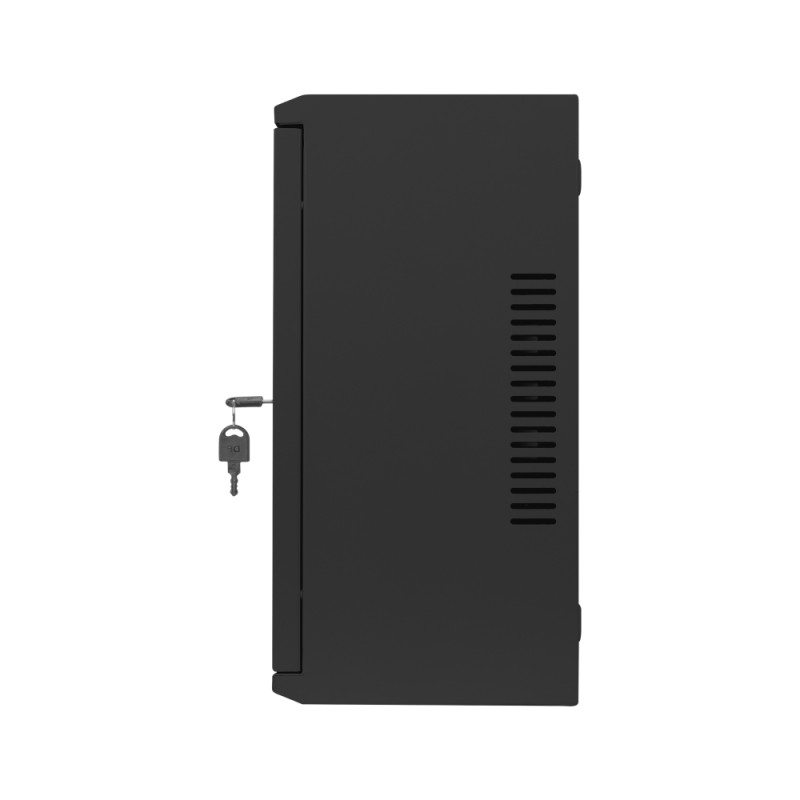

This ready-to-use WAF1 cabinet is not only an ergonomic and aesthetically pleasing solution but also provides adequate air circulation. The module's top and bottom panels and sidewalls feature ventilation holes that help keep your IT equipment at the right temperature.

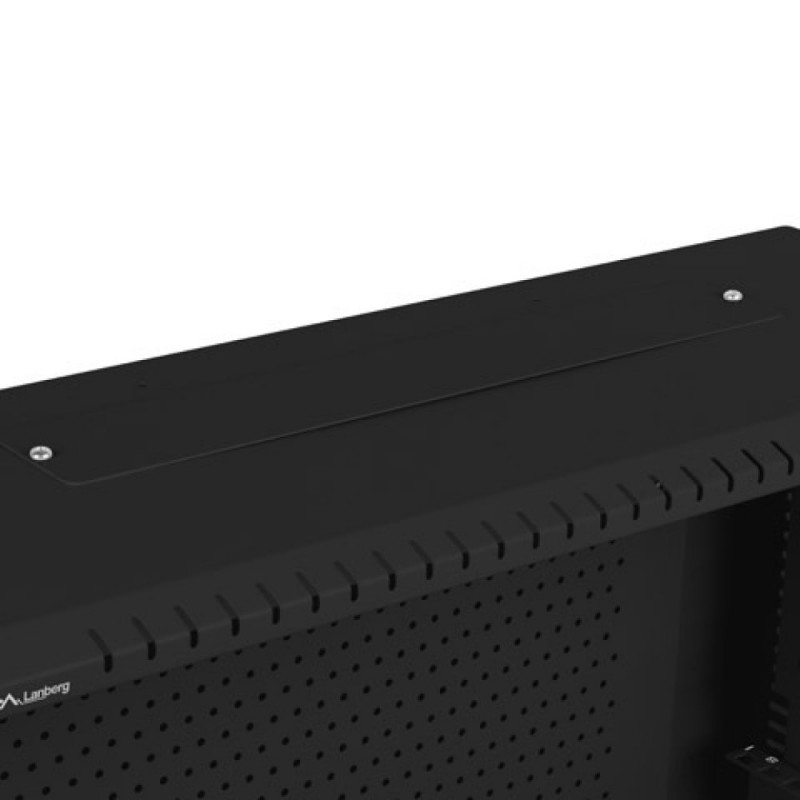

Cable openings in the upper and lower panels

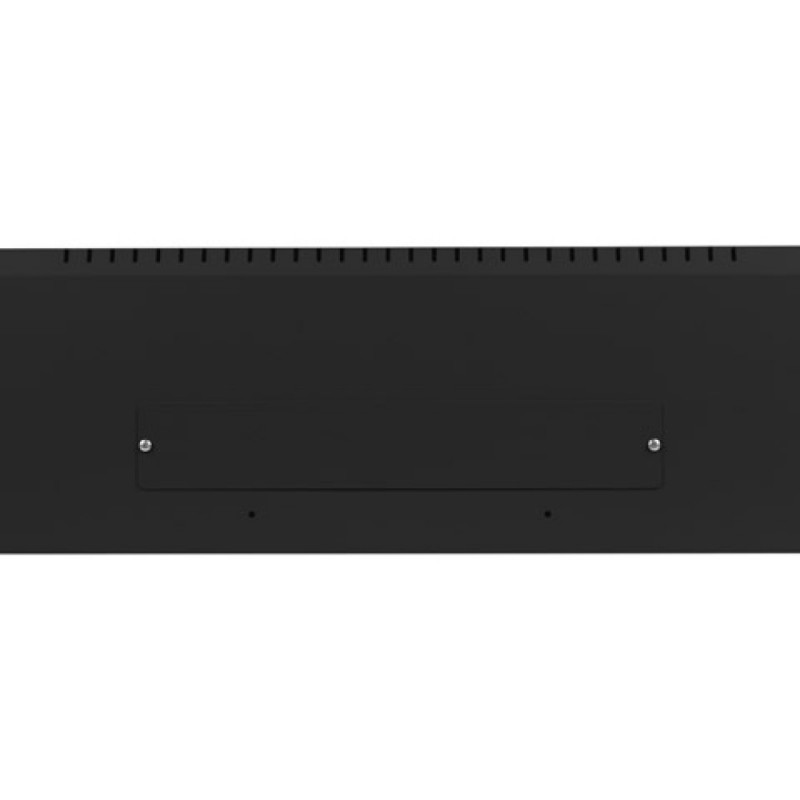

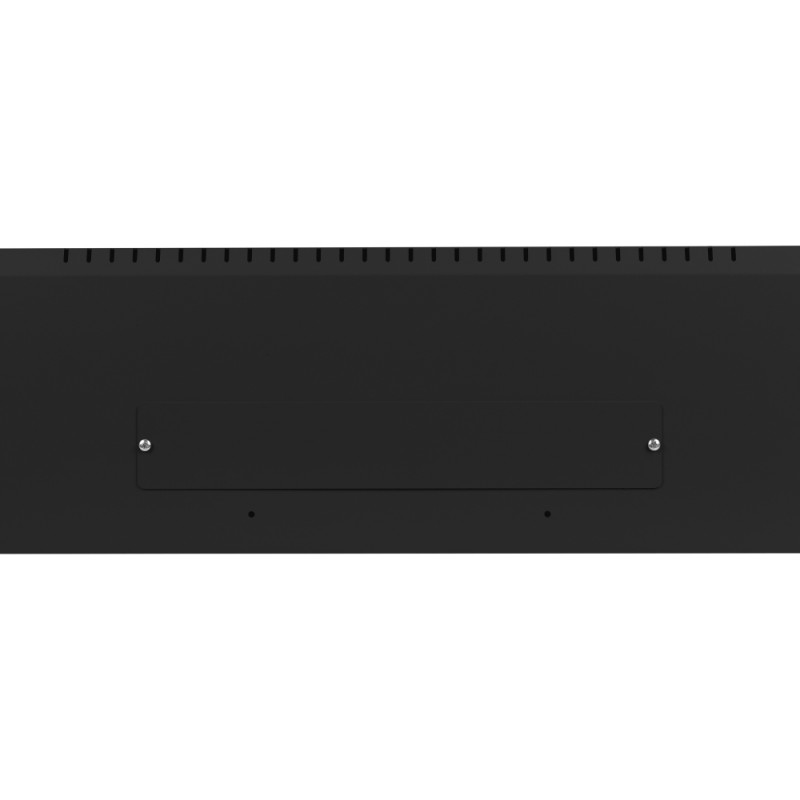

The top and bottom panels of the WAF1 cabinet feature cable holes that allow you to easily and conveniently install a Lanberg brand brush panel. This gives you full freedom to customize the cabinet according to your needs and requirements.

These removable cable openings also make it easier to manage wires and cables, which helps keep your IT equipment organized.
Appropriate equipment

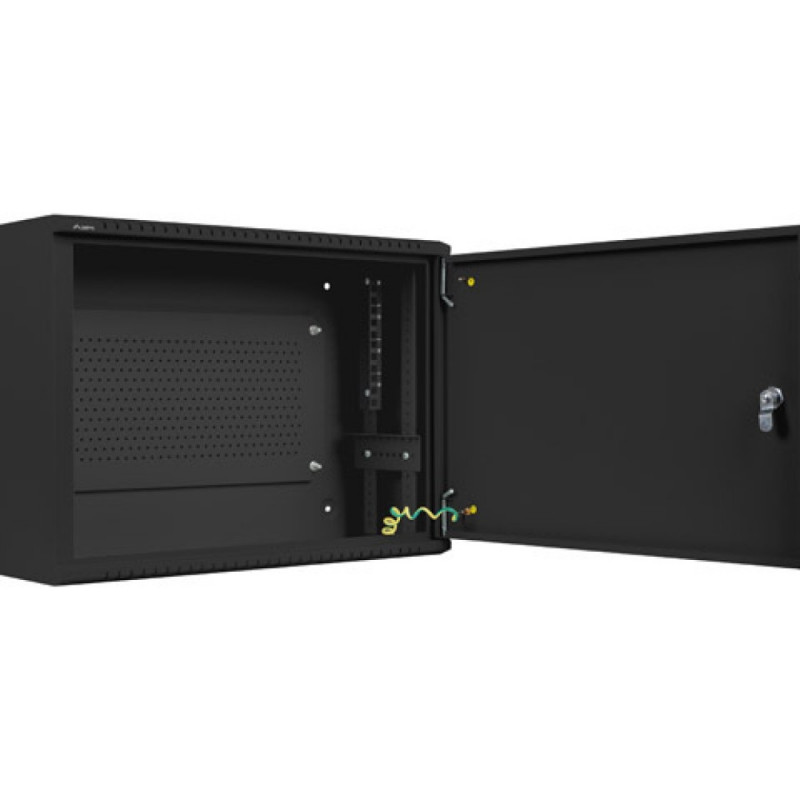

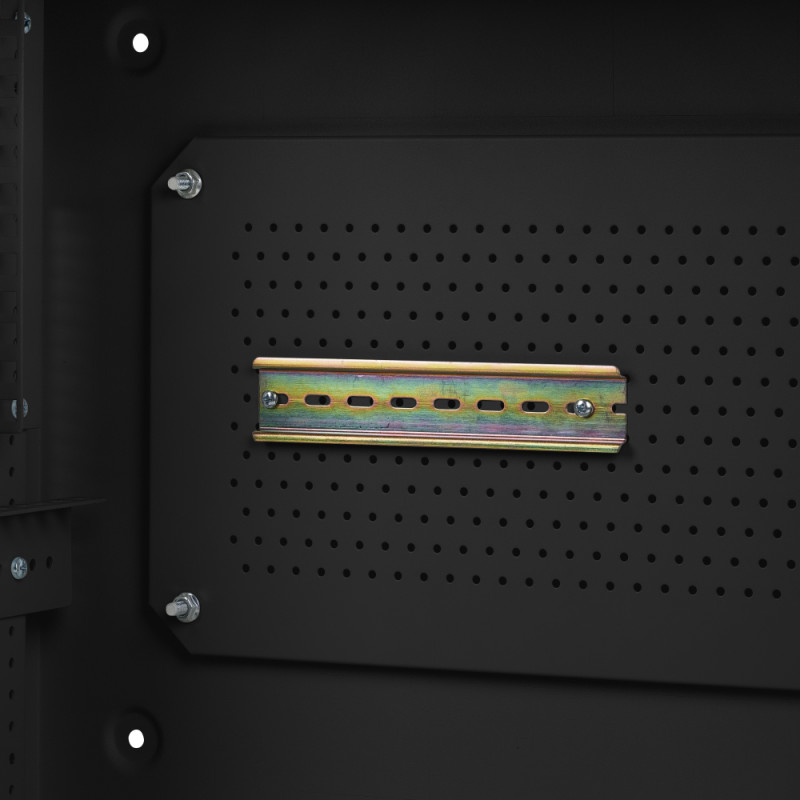

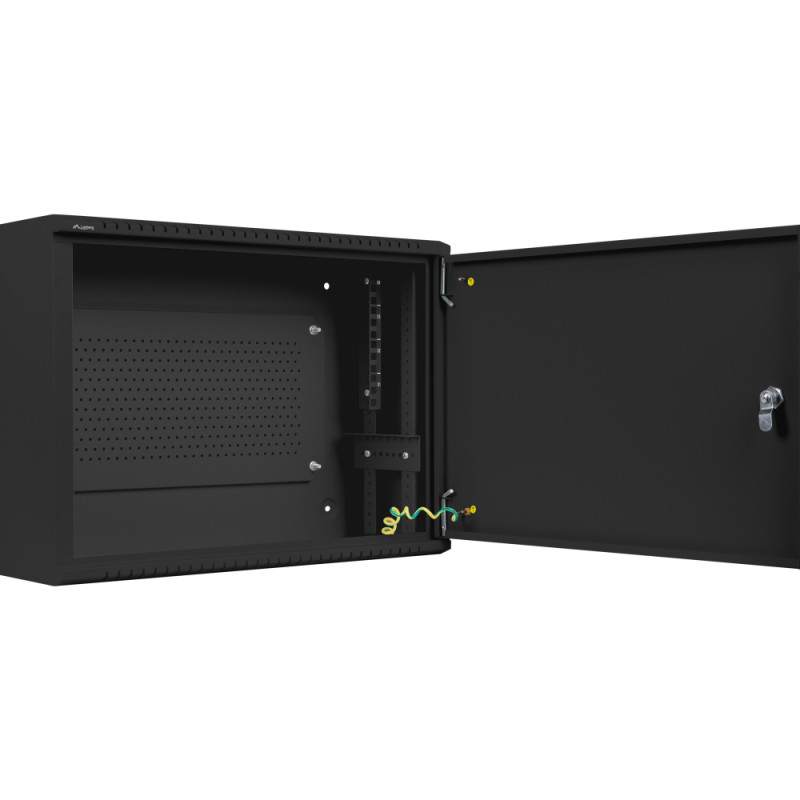

The interior of our cabinet is equipped with a mesh panel, which is located on the back wall. With this solution, you can easily attach various components to it with M4 screws, ensuring reliable attachment and organization of your equipment.

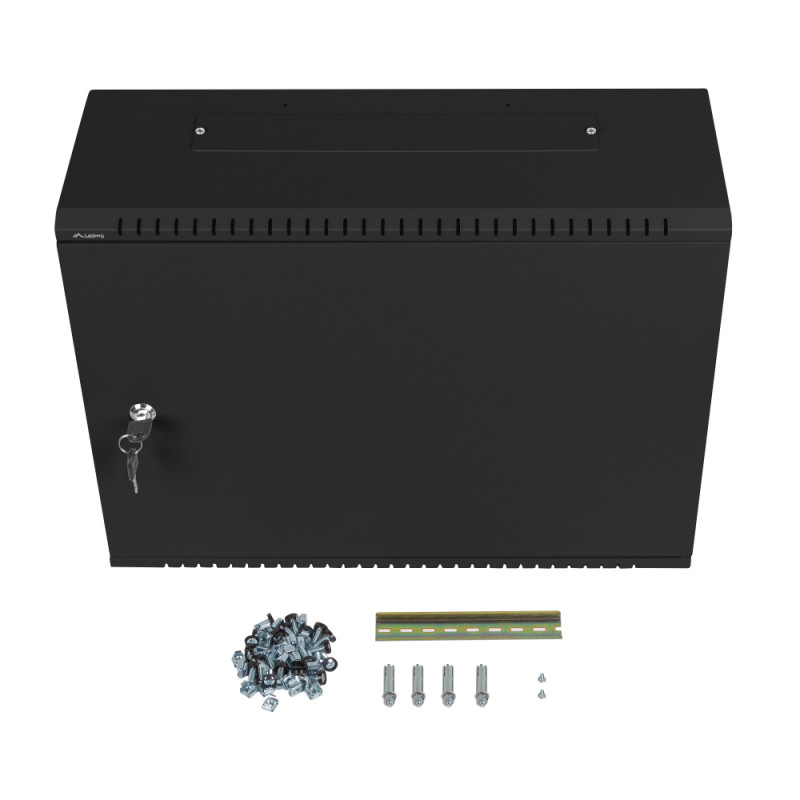

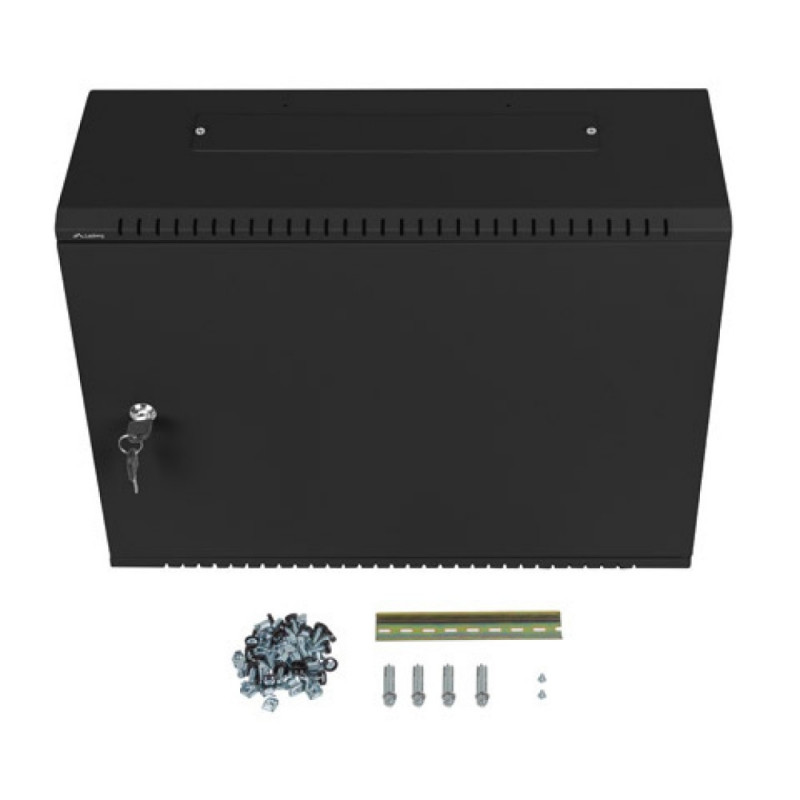

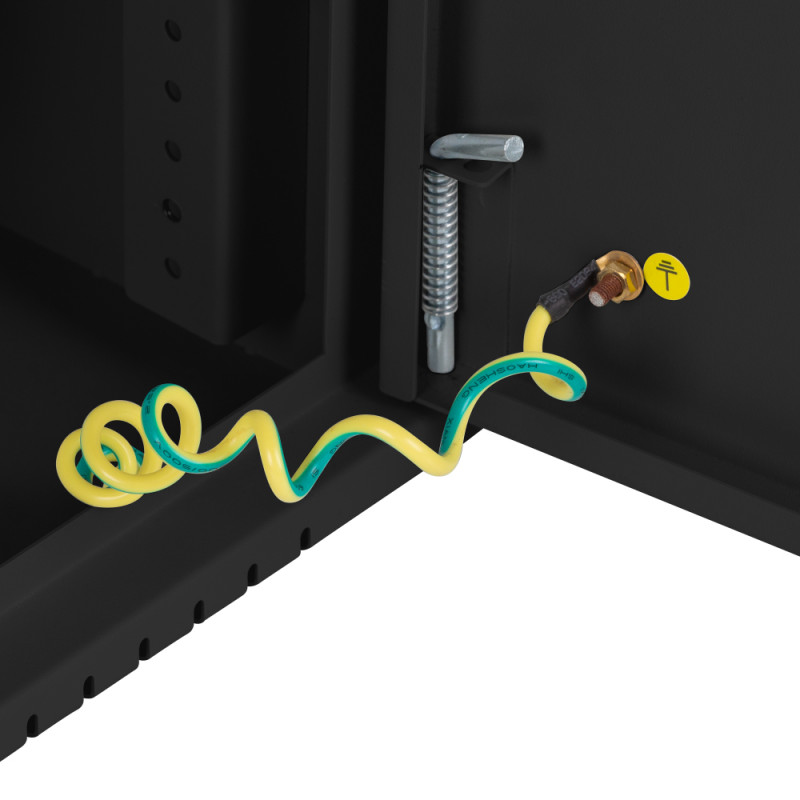

A DIN rail is also included, which allows you to mount and place devices or accessories on it according to your needs. In addition, mounting anchors, a grounding cable and M6 screws guarantee not only stability, but also the safety of your equipment.

Comfort of use

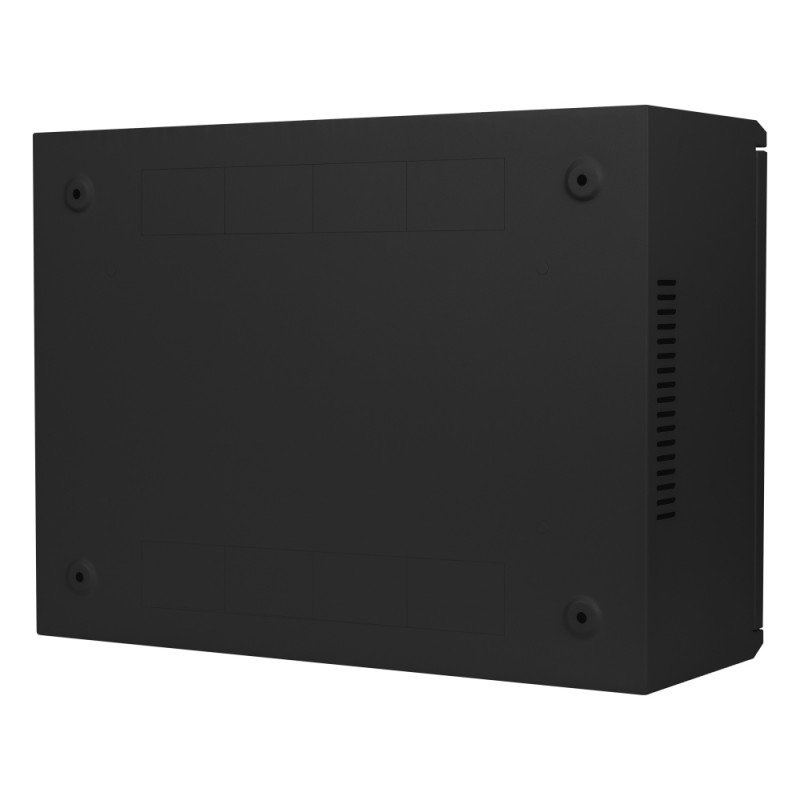

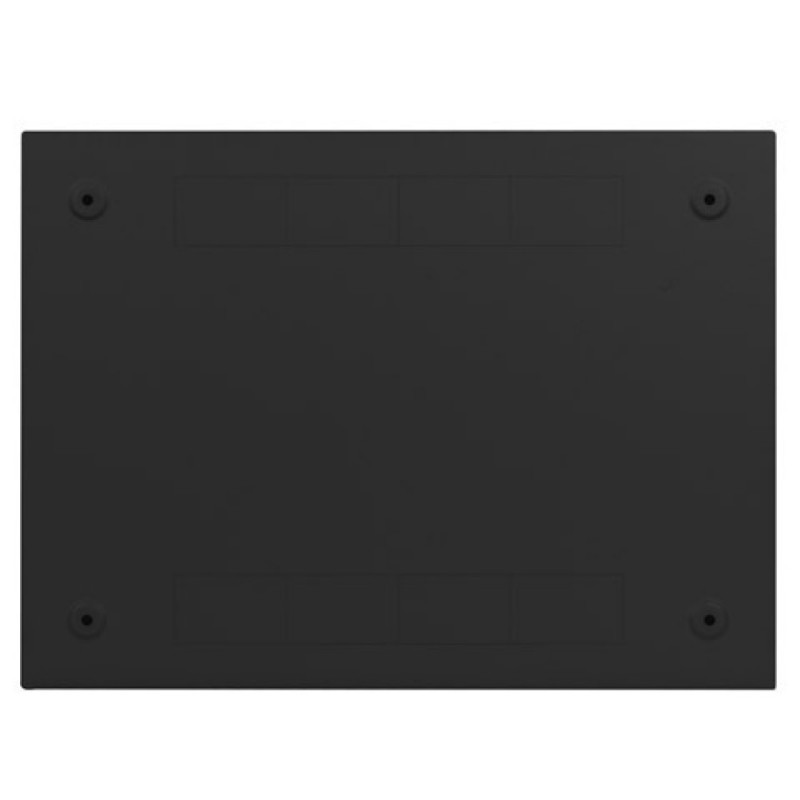

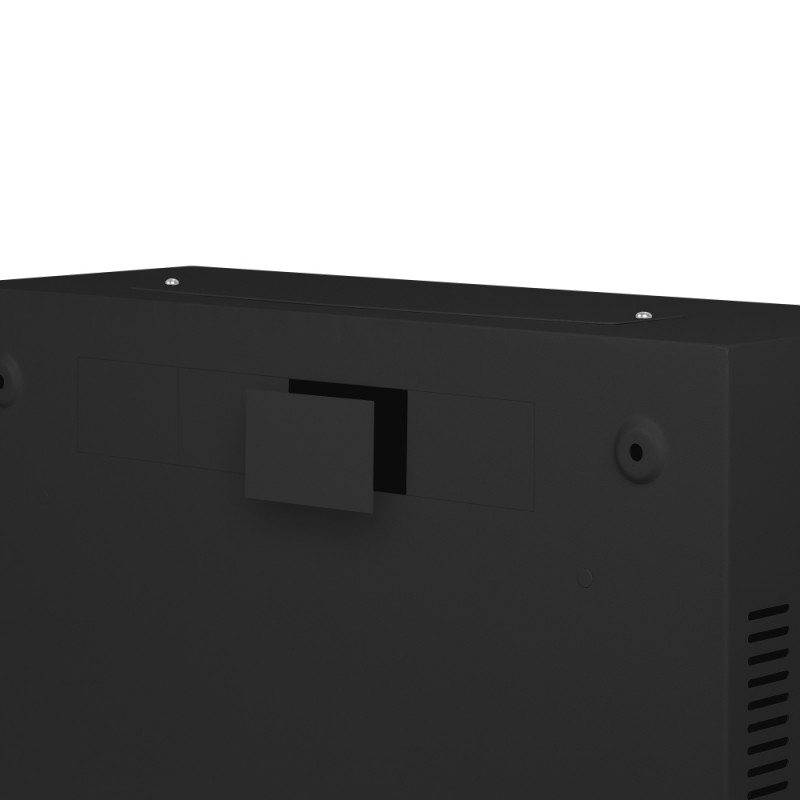

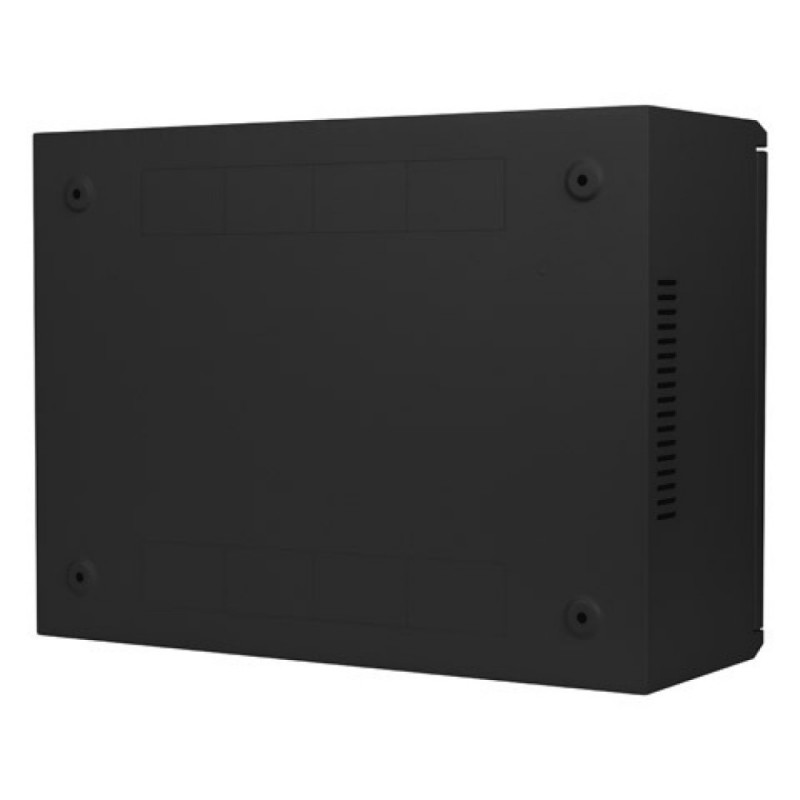

The WAF1 cabinet is designed for maximum convenience of use and flexibility. In its back wall you will find 8 break-out holes that serve as grommets, allowing you to customize the cabinet's interior to your individual needs. It's a solution that allows you to easily install cables, wires and accessories without having to disassemble the cabinet or drill new holes.

These removable grommets in the back wall of the cabinet are a key element that ensures your work is efficient and your IT equipment is always properly connected and organized. Whether you need grommets for Ethernet cables, power cords, or any other type of cable, our cabinet allows you to adapt to your requirements.
Specification
Type of cabinet Wall mount
ICT depth 3 U
Size 19"
ICT height 4 U
Assembly type Assembled
Working depth 143 mm
Working height 360 mm
Front door type Metal
Door type Single-leaf
Maximum front door opening angle 220 °
Maximum static load 60 kg
Number of vertical rails 2
Number of horizontal rails 2
Thermostat No
LCD panel No
Colour Black
RAL color RAL9004
Weatherproof rating IP20
Front door thickness 1 mm
Upper & lower panel thickness 1 mm
Side panel thickness 1 mm
Mounting rails thickness 1.5 mm
Frame thickness 1.2 mm
Other elements sheet thickness 1 mm
Depth 200 mm
Width 540 mm
Height 400 mm
Weight 9.3 kg
Standard ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982
Grounding Details Front door, Bottom panel
Included Accessories User Manual, Grounding cable, DIN rail TS-35, M6 screws, Front lock

Dimensions and weights

Gross weight
9.3 kg
Package width
54 cm
Package height
40 cm

Product codes

EAN
5901969433418
Manufacturer code
WAF1-5203-04-00B
