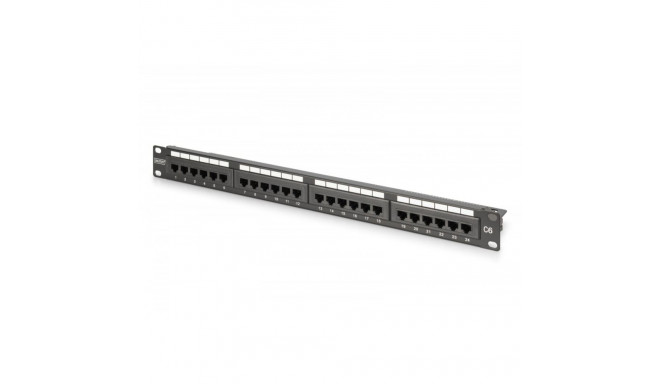

Patch panel CAT 6 DN-91624U-CR

Addional discount of 11%
will be applied in shopping cart
(min. 5€ purchase)
21,99 €

Main info

Warning: Last items in stock!

Add to cart

Delivery in 7-10 working days

Delivery starting at 0 €

14 14 days return policy when purchasing online

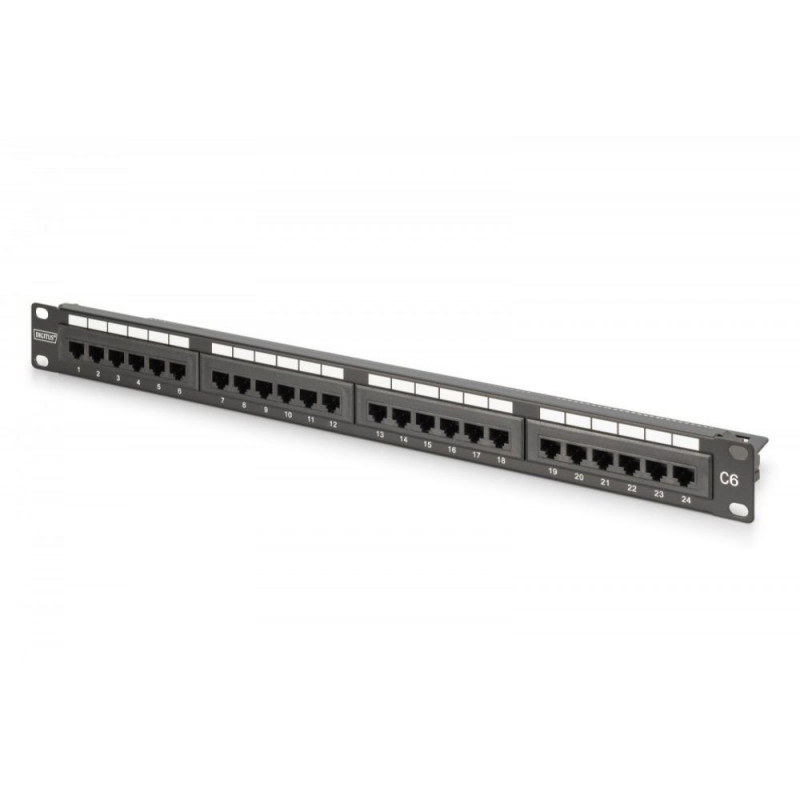

The DIGITUS CAT 6 patch panel is manufactured to Link Performance Class E requirements for frequencies up to 250 MHz, ISO/IEC 11801 and EN 50173, and is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel, making it ideal for mounting in a 19" rack.

Applications: Up to 250 MHz, 1GBase-T, PoE
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C

General Features:

  • Suitable for mounting in a 483 mm (19") rack
  • RJ45, 8P8C jacks

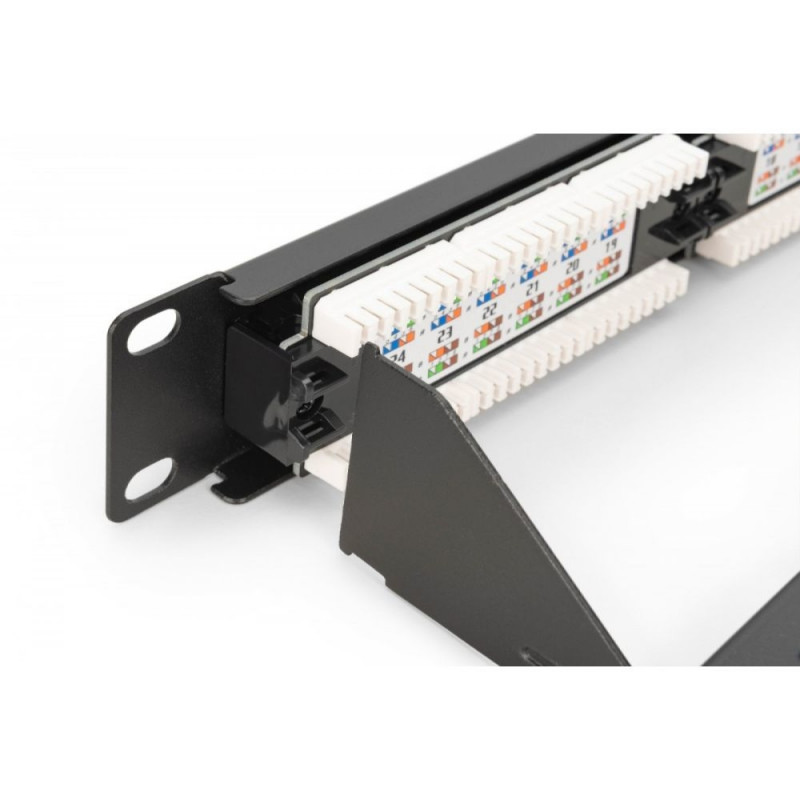

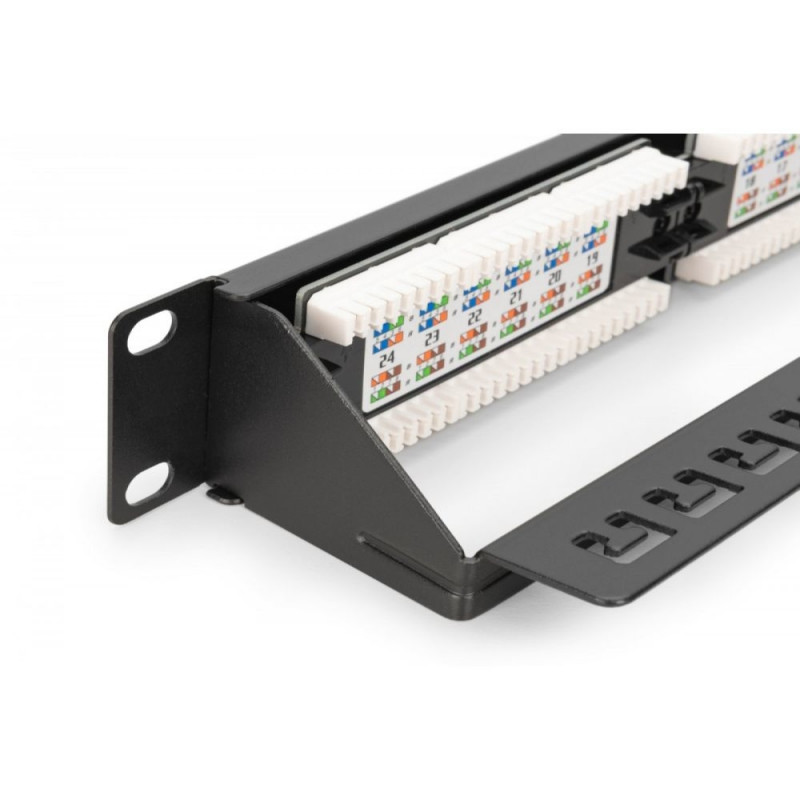

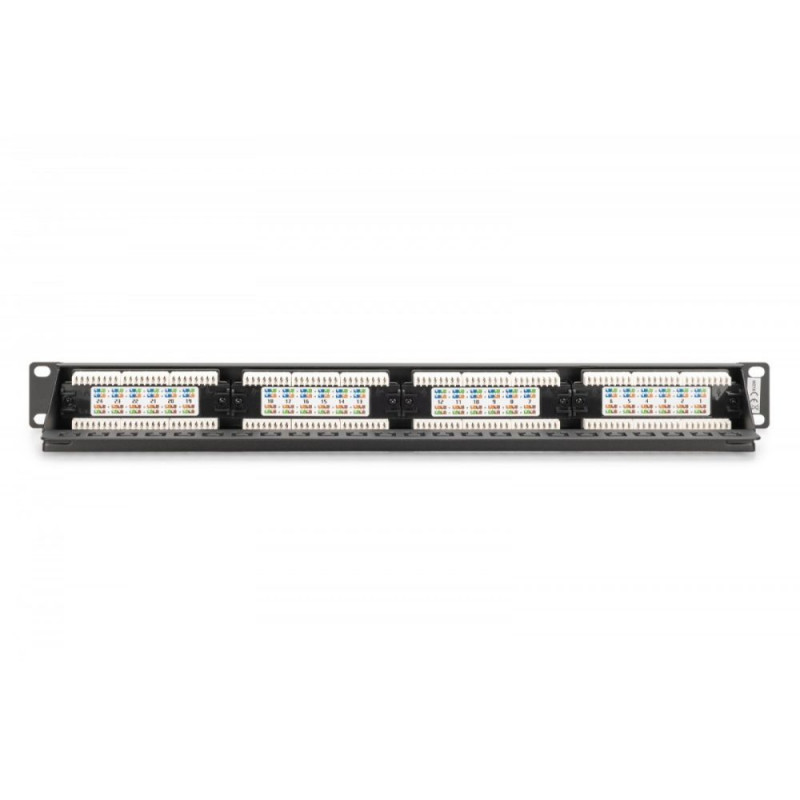

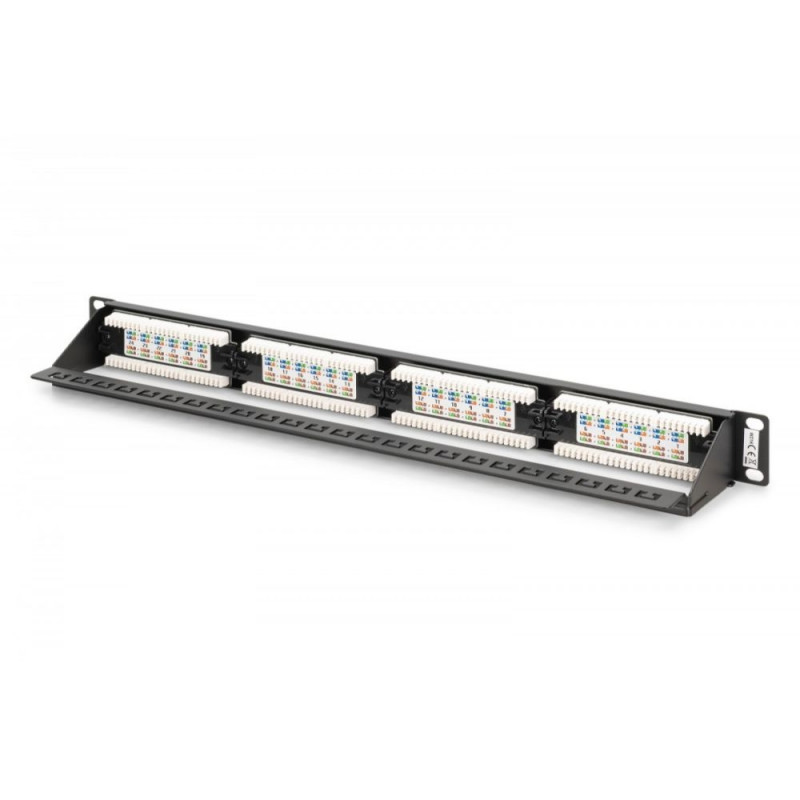

  • Cable installation using LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable retention using quick-release fasteners Latches

Mechanical Properties:

  • Housing Material: 1.5 mm galvanized, cold-rolled steel compliant with EN1.4301, UNS S30400, AISI 304, and LMSAD110
  • RJ45 Jack Material: ABS UL 94V-0
  • RJ45 Jack: Nickel-plated phosphor bronze, 0.5 gold-plated contact
  • RJ45 Shielding: Nickel-plated bronze
  • LSA Cutting Clamp: Krone LSA+, UL 94V-2, zinc-plated phosphor bronze
  • Ground Wire: Not included
  • PCB: FR4, UL 94V-0

Physical Properties:

  • Insertion Force: Max. 30 N (IEC 60603-7-5)
  • Tensile Load: 7.7 kg between Jack and Plug
  • Operating temperature: -20°C to +70°C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568°C)
  • Socket mating cycle: > 750 according to ISO/IEC 11801, IEC 60603-7-5
  • Crimp: > 200 according to ISO/IEC 11801, IEC 60603-7-5
  • Wire acceptance: 22-26 AWG solid and stranded wires
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Slots 24
Socket type RJ-45
Category CAT 6
Height 1U
Color Black
Designation

Dimensions and weights

Gross weight
0.75 kg
Package width
11 cm
Package height
50 cm
Package length
4 cm

Product codes

EAN
4016032354185
Manufacturer code
NUASSPP24000010
