Home page » Computers & IT»Servers»Mainboards»GIGABYTE MS73-HB1 Intel C741 LGA 4677 (Socket E) Extended ATX

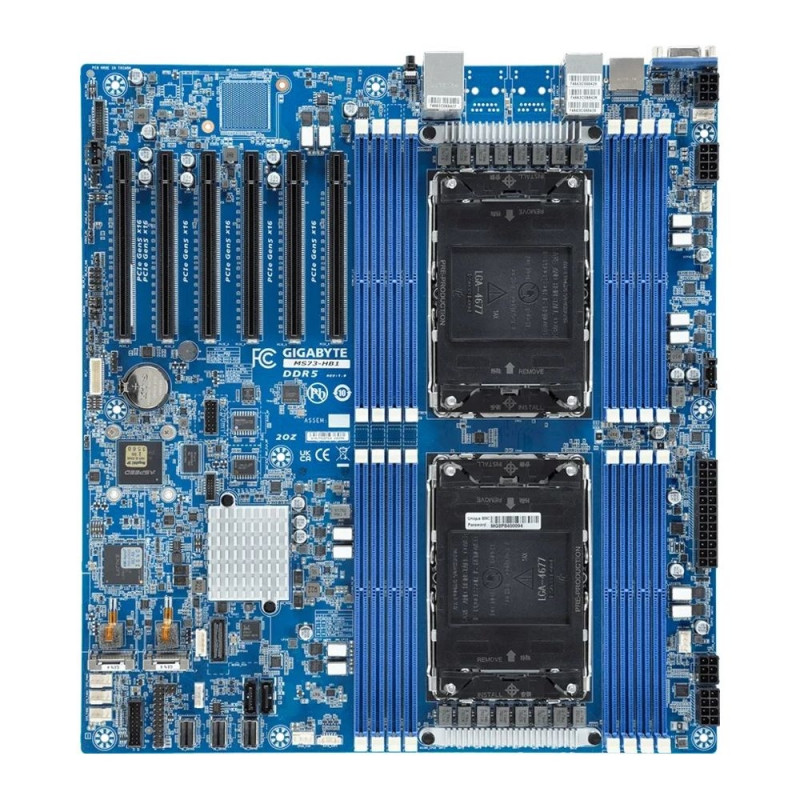

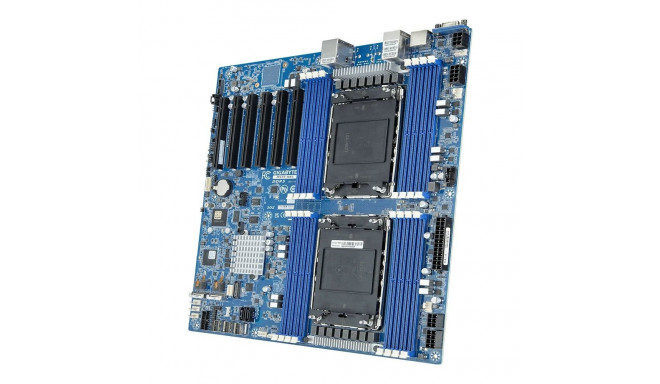

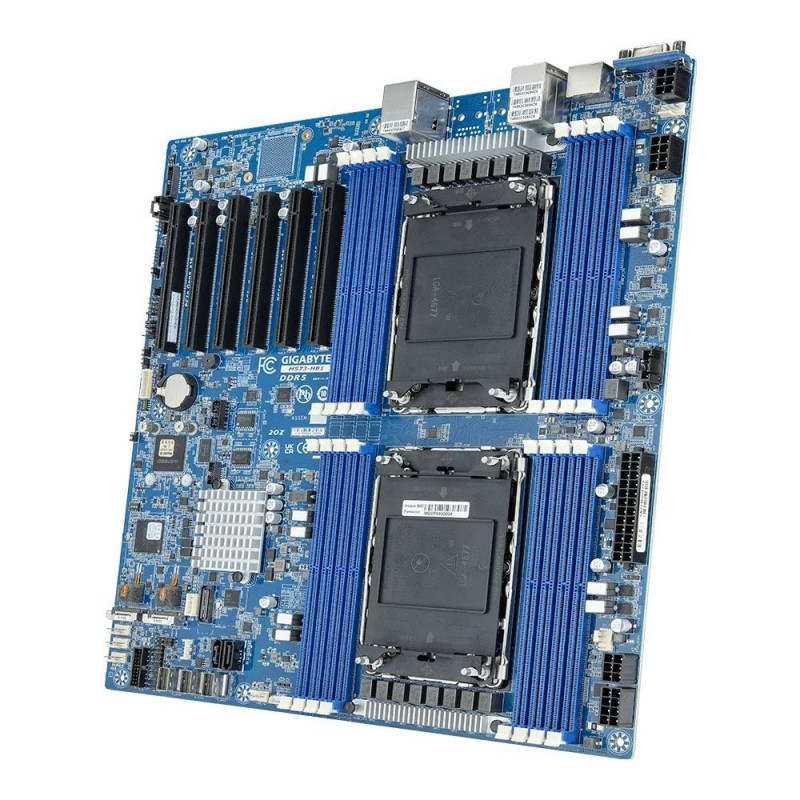

GIGABYTE MS73-HB1 Intel C741 LGA 4677 (Socket E) Extended ATX

Main info

Warranty 24 (G) Compatible operating systems Windows Server 2022

Product has been archived


Warranty 24 (G)
Compatible operating systems Windows Server 2022
CPU fan connector Yes
EPS power connector (8-pin) Yes
RAID support Yes
Storage temperature (T-T) 10 - 40 °C
Package depth 355 mm
Front panel connector Yes
Component for Server
Motherboard form factor Extended ATX
Package width 490 mm
Motherboard chipset family Intel
Operating temperature (T-T) -40 - 60 °C
Ethernet LAN (RJ-45) ports 2
Operating relative humidity (H-H) 8 - 80%
Motherboard chipset Intel C741
ATX Power connector (24-pin) Yes
On-board graphics card model Aspeed AST2600
Supported storage drive interfaces SATA III
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Storage relative humidity (H-H) 20 - 95%
Number of M.2 (M) slots 2
LAN controller Intel® I210-AT
Cables included SATA
Memory channels Octa-channel
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
Package height 78 mm
PCI Express x8 (Gen 5.x) slots 2
Ethernet LAN Yes
Number of CPU fan connectors 1
2nd M.2 largest key size 22110
Ethernet interface type Gigabit Ethernet
1st M.2 highest PCI Express generation 4.0
1st M.2 largest key size 2280
COM ports quantity 1
Number of EPS power connectors (8-pin) 2
2nd M.2 highest PCI Express generation 4.0
Processor manufacturer Intel
Compatible processor series Intel® Xeon®
Memory slots type DIMM
Width 304.8 mm
Number of storage drives supported 12
PCI Express x16 (Gen 5.x) slots 5
Processor socket LGA 4677 (Socket E)
Depth 330.2 mm
VGA (D-Sub) ports quantity 1
Number of memory slots 16
Wi-Fi No
Supported memory types DDR5-SDRAM
RAID levels 1
Supported memory clock speeds 4800

Dimensions and weights

Package width
80 cm
Package height
81 cm
Package length
126 cm

Product codes

EAN
4719331849368
Manufacturer code
493962
