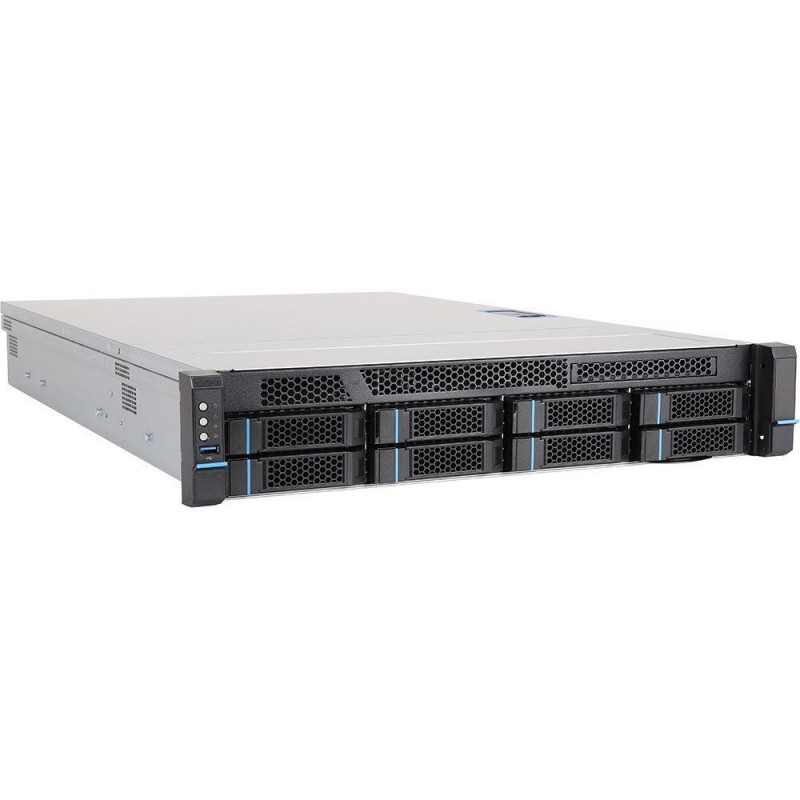

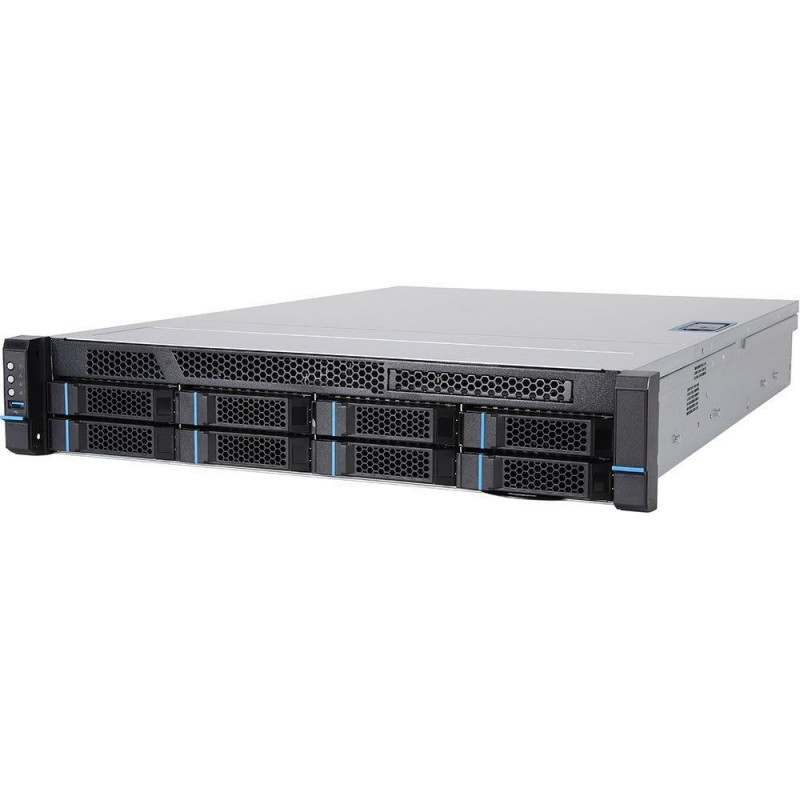

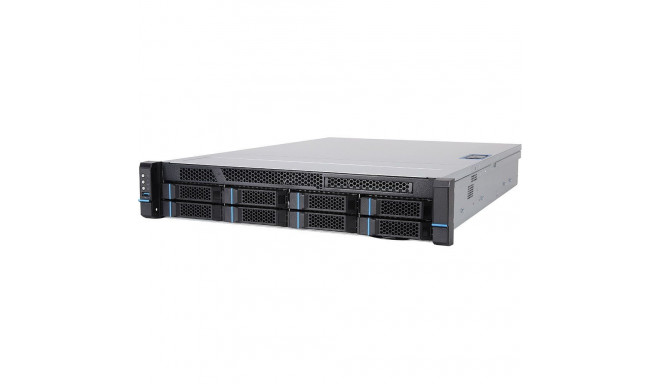

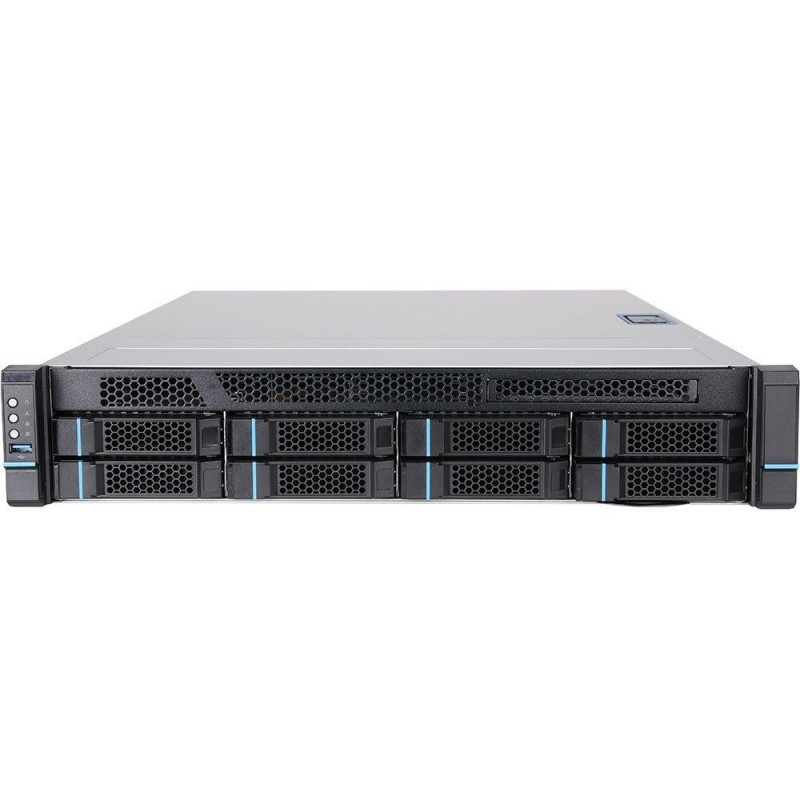

TERRA SERVER 3230 G6

FREE SHIPPING
WITHIN ESTONIA!

14 069 €

Monthly payment starting from 420,90 €

Open installments calculator

Photopoint hire purchase calculator

Please add some items to your shopping cart and choose "hire purchase" for the payment type

Main info

Processor L3 cache 24 MB Processor family 1-CPU / Xeon UP Processor cores 8-Core Processor frequency 3.3 GHz Number of processors 1 Maximum number of SMP processors 1 Processor socket LGA1700 Motherboard chipset Intel C266 Gener

Warning: Last items in stock!

Add to cart

Delivery in 7-14 working days

Free delivery

14 14 days return policy when purchasing online

Processor
L3 cache 24 MB
Processor family 1-CPU / Xeon UP
Processor cores 8-Core
Processor frequency 3.3 GHz
Number of processors 1
Maximum number of SMP processors 1
Processor socket LGA1700
Motherboard chipset Intel C266
General
Processor model Intel Xeon 6369P / 3.30 GHz
Operating system No operating system
Performance
Series SERVER 3000
Compatible operating systems Windows Server 2025
Windows Server 2022
Windows Server 2019
Channels quantity 8
Memory
Internal memory 64 GB
Maximum internal memory 128 GB
Internal memory type DDR5 ECC UB RAM
Memory slots 4x DDR5 PC4400, UB ECC
Memory channels Dual-Channel-Memory-Architecture
Storage
Optical drive type Optional
RAID levels RAID 1
Number of storage drives installed 2 pieza(s)
Internal drive bays 8x 3.5"/2.5"
Total storage capacity 3840 GB
SSD interface SATA 6Gb/s
HDD capacity 2x 1.9 TB SSD
Storage media type SSD SATA
Design
Certification CE, production according to ISO9001 in Germany
Rack mounting 2
Chassis type Rack
Power
Power source Power supply - redundant
Redundant power supply (RPS) support Yes
Maximum input power 800 W
Number of power supply units 2 pieza(s)
AC adapter input voltage 100-240 V~ / 50-60 Hz
Mouse
Mouse included Optional
Keyboard
Keyboard form factor Optional
Network
Ethernet LAN Integrated
LAN controller Intel X710-AT2
Cabling technology 2x 10 GbE (RJ45)
Other features
Number of drive bays Slot 1: PCIe 4.0 x8 @ x4
Slot 2: PCIe 4.0 x8 @ x4
Slot 3: PCIe 5.0 x8 @ x8
Slot 4: PCIe 5.0 x16 @ x16, automatic switch to PCIe 5.0 x16 @ x8 if slot 3 is occupied
Drive bays 1x Slim 5.25"
Interface 1x VGA
2x LAN (RJ-45)
1x Mgmt LAN
5x USB 3.2 Gen2 (1x internal)
1x USB 3.2 Gen1 (1x front)
2x USB 2.0
option: 1x serial
Motherboard manufacturer Asus P13R-E/10G-2T
Remote administration Yes
Hard disk controller Broadcom MegaRAID 9560-8i
Technical details
Localization International
Optional on-site service 24h On-Site-Service + DMR
24h On-Site-Service + DMR + Premium
Weight & dimensions
Height 8.7 cm
Width 43.8 cm
Depth 66 cm
Minimum cabinet depth: 90 cm
Cooling
Cooling type Active
Graphics
Graphics adapter ports VGA
Maximum graphics adapter memory 64 MB
Graphics card Aspeed AST2600
Operational conditions
Operating temperature (T-T) 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
Recommended humidity operating range 10-75% (non-condensing)

L3 cache 24MB
Processor family 1-CPU / Xeon UP
Processor cores 8-Core
Processor frequency 3.3GHz
Number of processors 1
Maximum number of SMP processors 1
Processor socket LGA1700
Motherboard chipset Intel C266
Processor model Intel Xeon 6369P / 3.30 GHz
Operating system No operating system
Series SERVER 3000
Compatible operating systems Windows Server 2025¦
Channels quantity 8
Internal memory 64GB
Maximum internal memory 128GB
Internal memory type DDR5 ECC UB RAM
Memory slots 4x DDR5 PC4400, UB ECC
Memory channels Dual-Channel-Memory-Architecture
Optical drive type Optional
RAID levels RAID 1
Internal drive bays 8x 3.5"/2.5"
Total storage capacity 3840GB
SSD interface SATA 6Gb/s
HDD capacity 2x 1.9 TB SSD
Storage media type SSD SATA
Certification CE, production according to ISO9001 in Germany
Rack mounting 2
Chassis type Rack
Power source Power supply - redundant
Redundant power supply (RPS) support Yes
Maximum input power 800W
AC adapter input voltage 100-240 V~ / 50-60 Hz
Mouse included Optional
Keyboard form factor Optional
Ethernet LAN Integrated
LAN controller Intel X710-AT2
Cabling technology 2x 10 GbE (RJ45)
Number of drive bays Slot 1: PCIe 4.0 x8 @ x4 ¦ Slot 2: PCIe 4.0 x8 @ x4 ¦ Slot 3: PCIe 5.0 x8 @ x8 ¦ Slot 4: PCIe 5.0 x16 @ x16, automatic switch to PCIe 5.0 x16 @ x8 if slot 3 is occupied
Drive bays 1x Slim 5.25"
Interface 1x VGA ¦ 2x LAN (RJ-45) ¦ 1x Mgmt LAN ¦ 5x USB 3.2 Gen2 (1x internal) ¦ 1x USB 3.2 Gen1 (1x front) ¦ 2x USB 2.0 ¦ option: 1x serial
Motherboard manufacturer Asus P13R-E/10G-2T
Remote administration Yes
Hard disk controller Broadcom MegaRAID 9560-8i
Localization International
Optional on-site service 24h On-Site-Service + DMR¦
Cooling type Active
Graphics adapter ports VGA
Maximum graphics adapter memory 64MB
Graphics card Aspeed AST2600
Recommended humidity operating range 10-75% (non-condensing)
Number of storage drives installed 2pieza(s)
Number of power supply units 2pieza(s)
Height 8.7cm
Operating temperature (T-T) 10 °C - 35 °C (recommendation: 20 °C - 22 °C)
Width 43.8cm
Depth 66cm

Product codes

EAN
4039407090112
Manufacturer code
1100419
