Shuttle XPC slim DH770, Barebone (black, without operating system)

369 €

Järelmaksuga ostes alates 12,58 € kuus

Ava järelmaksukalkulaator

Photopointi järelmaksu kalkulaator

Järelmaksuga ostmiseks lisa tooted ostukorvi ja vali seal makseviisiks järelmaks

Põhiinfo

Lisa ostukorvi

Tarneaeg 12-17 tööpäeva

See toode tuuakse sulle tasuta koju kätte

14 14 päeva tagastusõigus internetist ostmisel

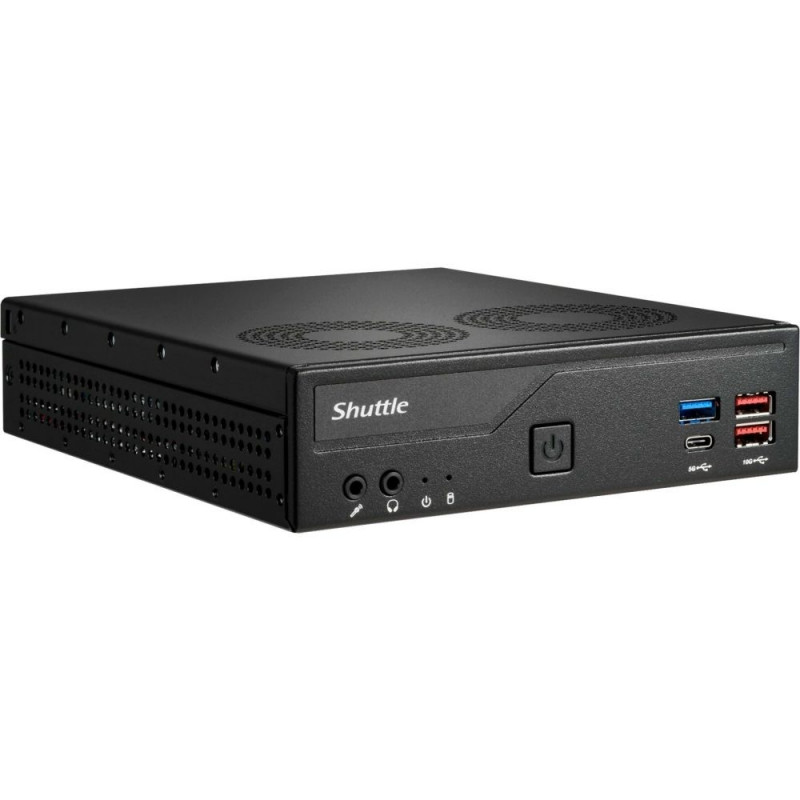

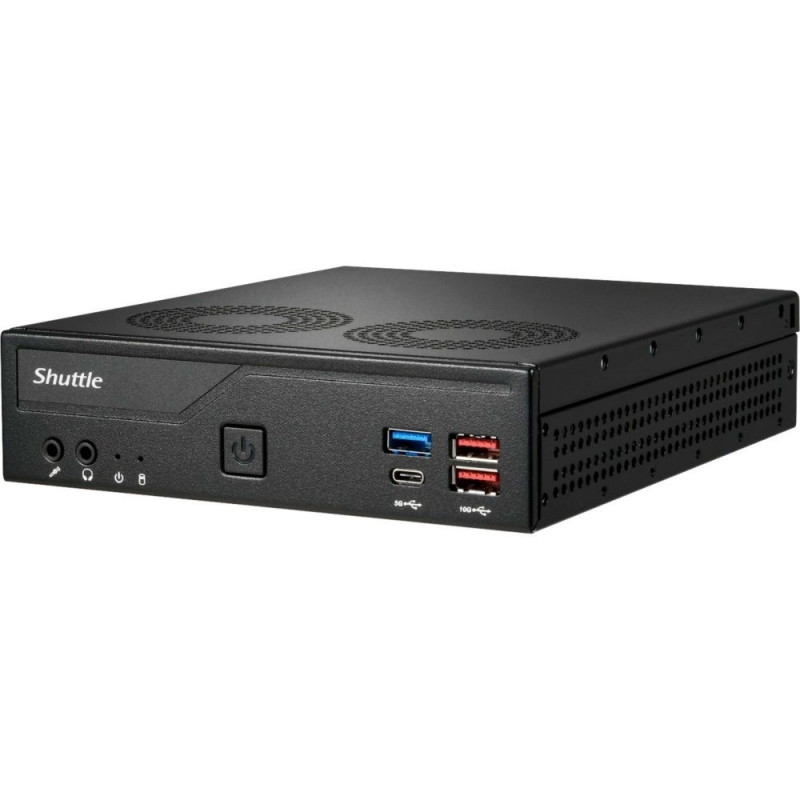

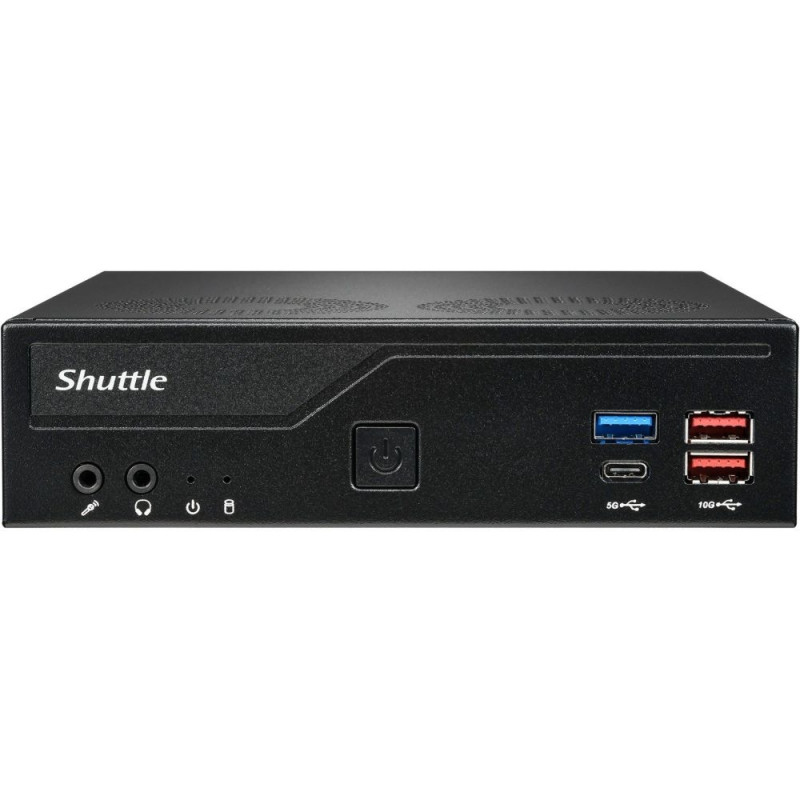

The Shuttle XPC slim Barebone DH770 with the Intel® H770 chipset delivers the performance of Intel's 12th to 14th generation Core desktop processors with Socket 1700 in a compact 1.3-liter form factor. It supports the simultaneous operation of four Ultra HD displays via 2x HDMI and 2x DisplayPort connections. Dual 2.5 Gigabit LAN, eight USB ports, and two COM ports are also available. Its slim metal housing with VESA mount, diverse connectivity options, and reliable operation at ambient temperatures of up to 50°C make the DH770 ideal for professional applications such as digital signage, POS, POI, gaming machines, office, healthcare, and industry.


Barebone type
Color black
EAN 0887993006918
Manufacturer No. DH770
XPC slim series
Case drive bays 2.5" internal 1
optional PVG01: Optional D-Sub VGA video output; WLN-M (802.11ac, Wi-Fi 5) or WLN-M1 (802.11ax, Wi-Fi 6): WLAN module in M.2-2230 format with two external antennas supports WLAN and Bluetooth; WWN03: LTE adapter kit with antennas, but without LTE card; PS02: Stands for vertical operation; CXP01: Adapter cable for an external power button; PRM01: 2U rack panel for two Shuttle XPC slim PCs; DIR01: DIN rail mounting kit
Processor designation)
Intel® H770 chipset
RAM capacity max. supported 64 GB DDR5 (of which 64 GB is replaceable)
Graphic type not available

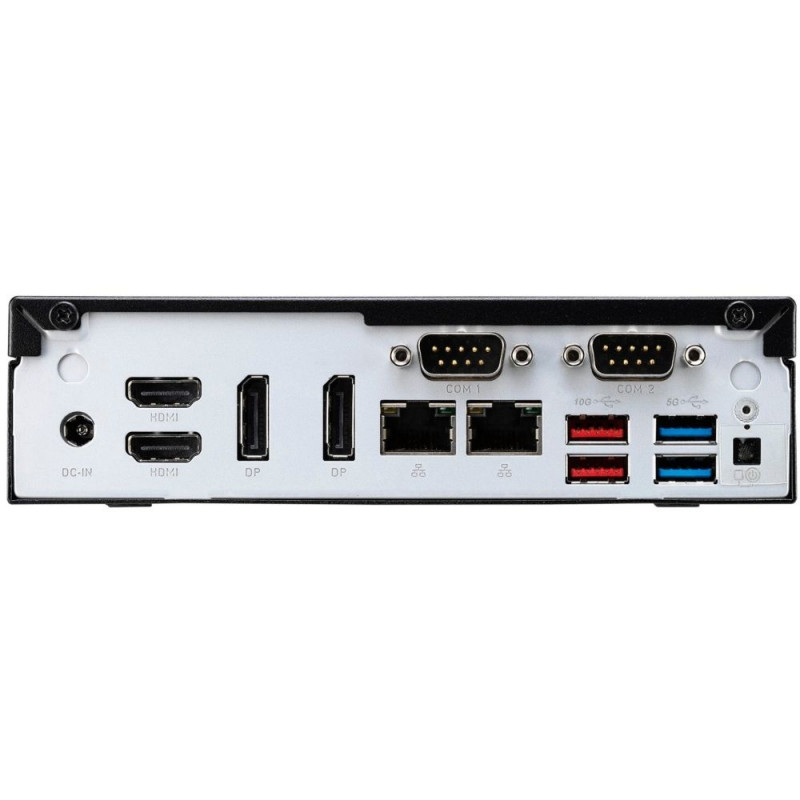

Mainboard connections graphics 2x DisplayPort-Out (DisplayPort Version: 1.4), 2x HDMI-Out
Optical drive type not available
Audio connections 1x microphone, 1x headphone
Connectivity LAN LAN 2.5 Gigabit
Power supply type external
Operating system without operating system
Protection features Anti-theft socket for Kensington cable lock

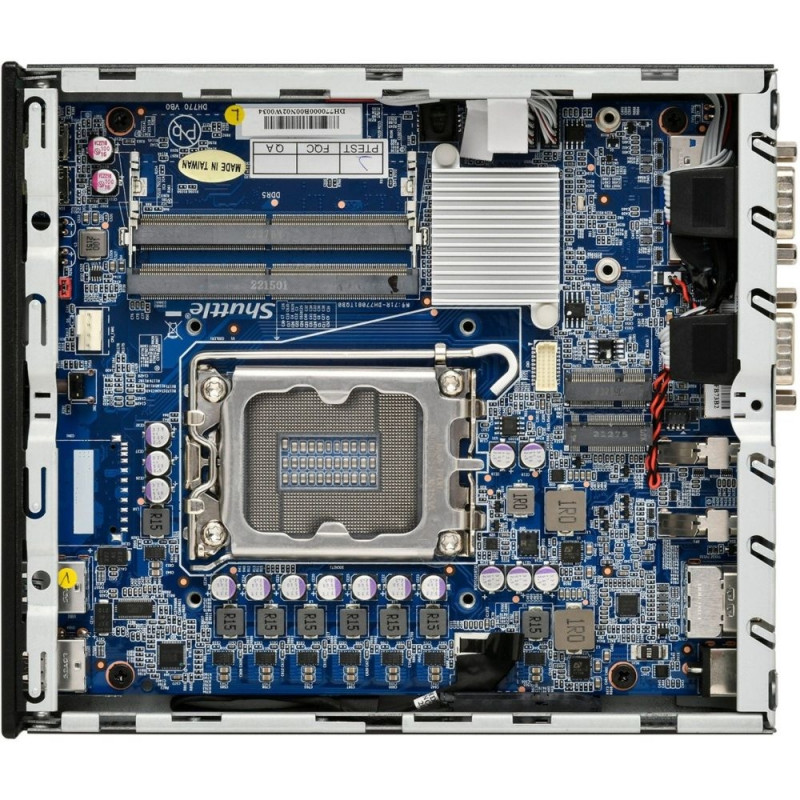

Further information supports Windows 10/11 and Linux 64-bit | up to 4 displays can be connected | drives up to 12.5 mm high can be installed in the 2.5" bay | M.2-2230E slot for WLAN cards | M.2-2280 slot supports SSDs with SATA or PCIe 4.0 x4 | DDR5 RAM (SO-DIMM) with up to 5600 MHz is supported | supports Intel® Core processors of the 12th, 13th, and 14th generation Alder Lake-S/Raptor Lake(Refresh)-S with a TDP of up to 65 watts and integrated graphics | VESA mount with 75/100 mm
Feature Trusted Platform Module (TPM)
Note This barebone system does not include a processor, graphics, memory, SSD/hard drive, CD/DVD drives, or operating system.
Accessories included: VESA mount for 75/100 mm standard (2 metal brackets), 4 M3 x 5 mm screws (connects VESA mount to PC), 4 M4 x 10 mm screws (connects VESA mount to external mount), 4 M3 x 4 mm screws (for mounting a 2.5" drive), 2 M3 x 5 mm screws (silver, for attaching two M.2 cards), driver DVD (Windows 64-bit), Serial ATA cable for 2.5" drive with power connector, external 120-watt power supply with power cable, protective cap for the CPU socket (do not use if a heat pipe or cooler is installed), thermal paste, multilingual installation guide (DE, EN, FR, ES, JP, KR, SC, TC)
Dimensions Width: 165 mm x Height: 43 mm x Depth/Length: 190 mm
Weight 1.3 kg
