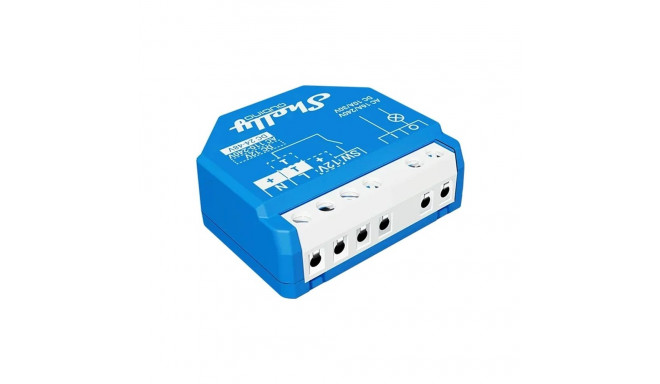

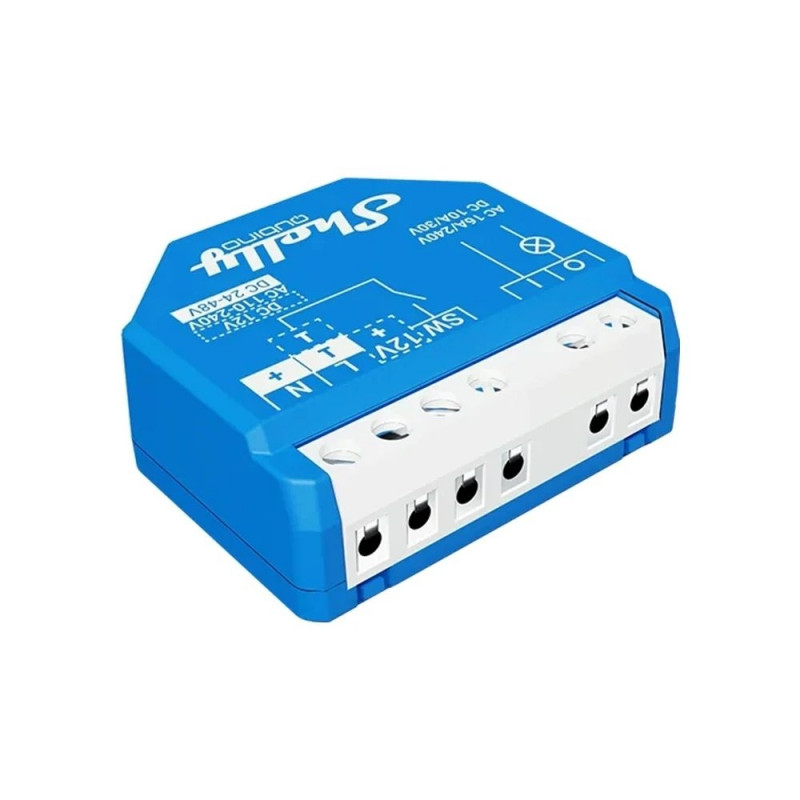

SHELLY Wave 1 LR Light Switch

Ostukorvis rakendub
5% (lisa)allahindlust
(min. 10€ ostul)
43,99 €

Järelmaksuga ostes alates 1,32 € kuus

Ava järelmaksukalkulaator

Photopointi järelmaksu kalkulaator

Järelmaksuga ostmiseks lisa tooted ostukorvi ja vali seal makseviisiks järelmaks

Põhiinfo

SHELLY Wave 1 LR Light Switch Controlling your driveway gate, lighting, garage door, or irrigation system can be even more convenient. The Shelly Wave 1 LR ensures stable communication over long distances thanks to Z-Wave Long Range technology, while
Lisa ostukorvi

Tarneaeg 4-7 tööpäeva

Kohaletoimetamine al. 0 €

14 14 päeva tagastusõigus internetist ostmisel

SHELLY Wave 1 LR Light Switch

Controlling your driveway gate, lighting, garage door, or irrigation system can be even more convenient. The Shelly Wave 1 LR ensures stable communication over long distances thanks to Z-Wave Long Range technology, while maintaining broad compatibility with modern smart home systems. Dry contacts, support for both low and high voltage, and the ability to control devices with a load of up to 16 A make it ideal for a wide range of applications—from single-family homes to outbuildings and commercial facilities. This compact device significantly expands the capabilities of home automation and allows you to conveniently manage it from anywhere.

Even Greater Range

The Wave 1 LR uses Z-Wave Long Range technology, which was designed for installations requiring reliable communication over long distances. Under favorable conditions, the device maintains a stable connection with a compatible hub even from a distance exceeding 1 km in line of sight. This solution is ideal for large properties, farms, warehouses, or buildings with a remote garage. Unlike the classic Z-Wave Plus mesh network, ZWLR technology uses a star topology, allowing communication to take place directly with the control panel. You can also choose between two operating frequencies (864 MHz for Z-Wave Long Range and 868.4 MHz for standard Z-Wave Plus), allowing you to tailor the operation to your specific setup.

One module, many possibilities

Thanks to its potential-free, dry contacts, the Shelly Wave 1 LR works with a wide range of devices that require electrical signal control. You can easily integrate it with garage door and gate openers, electric locks, lighting, or irrigation systems, and its support for both low and high voltage further increases installation flexibility. This single-channel switch supports a load of up to 16 A, making it ideal for both simple and more complex building automation systems.

Automation Tailored to Your Day

Once you add the device to your Z-Wave network, you can conveniently control connected systems remotely via a compatible hub. The Wave 1 LR allows you to create schedules tailored to your daily routines, as well as automatically perform scheduled actions based on sunrise and sunset times. The device also allows you to create complex automation scenes by working with other Z-Wave devices. For example, opening the gate can automatically turn on the driveway lights, and a scheduled routine will ensure regular garden watering without the need for manual intervention.

Modern technology, high level of security

At the heart of the device is the Z-Wave 800 Series platform, ensuring high performance, fast operation, and energy-efficient operation. The module consumes a maximum of only 0.3 W of power, allowing it to operate continuously without a noticeable impact on electricity consumption. Setup is made easy by the SmartStart feature—simply scan the QR code to begin adding the device to the system. Communication security is ensured by S2 encryption and authentication, which protect transmitted data from unauthorized access.

Wide Compatibility with Smart Home Ecosystems

The Shelly Wave 1 LR is officially certified as a device that works with the SmartThings platform and is compatible withAlarm.comand Homey systems, allowing it to seamlessly integrate into an existing smart home setup. Please note that a compatible hub is required to configure and operate Z-Wave devices, while using the Z-Wave Long Range feature requires a hub that supports the ZWLR standard. Once properly configured, the device becomes a reliable component of your smart home system, providing convenient, secure, and remote control over various systems in and around your home.

Included in the package
  • light switch
  • user manual
Manufacturer Shelly
Model Wave 1 EU LR
Power supply 110–240 V ̴ / 24–48 V ⎓ / 12 V DC ± 10%
Power consumption < 0.3 W
Max. AC switching voltage 240 V
Max. AC switching current 16 A
Max. DC switching voltage 30 V
Max. DC switching current 10 A
Overheating protection Yes
Long-range network Range up to 80 m indoors or up to 1000 m outdoors, Z-Wave® 864 MHz frequency bands
Mesh network Range up to 40 m indoors, Z-Wave® repeater, Z-Wave® frequency band 868.4 MHz
Processor Z-Wave® S800
Maximum transmission power in frequency band(s) < 25 mW
Dimensions 37x42x16 ±0.5 mm / 1.46x1.65x0.63 ±0.02 inches
Weight 26 g
Installation Flush-mount box
Maximum tightening torque for screw terminals 0.4 Nm
Wire cross-section 0.5 to 1.5 mm²
Stripped wire length 5 to 6 mm
Housing material Plastic
Color Blue
Ambient temperature -20°C to 40°C
Humidity 30% to 70% relative humidity
Maximum altitude above sea level 2000 m
