RACK CABINET 19" WALL-MOUNT 6U+3U/540X200 LOW-PROFILE BLACK LANBERG (ASSEMBLED)

TASUTA TRANSPORT!

53,99 €

Järelmaksuga ostes alates 1,62 € kuus

Ava järelmaksukalkulaator

Photopointi järelmaksu kalkulaator

Järelmaksuga ostmiseks lisa tooted ostukorvi ja vali seal makseviisiks järelmaks

Põhiinfo

WAF1 series of assembled installation wall cabinets by LanbergThe WAF1 series low-profile 19” rack cabinet is dedicated not only to low-current installations, but also to a range of other applications, making it an ideal solution for many industries.
Lisa ostukorvi

Tarneaeg 7-10 tööpäeva

Kohaletoimetamine al. 0 €

14 14 päeva tagastusõigus internetist ostmisel

Vabandage, tooteandmed on tõlkimisel. Kui vajate toote võõrkeelse teksti mõistmisel abi, andke sellest palun teada e-posti teel info@photopoint.ee. Saadame teile kiirelt soovitud tõlke.


WAF1 series of assembled installation wall cabinets by Lanberg

The WAF1 series low-profile 19” rack cabinet is dedicated not only to low-current installations, but also to a range of other applications, making it an ideal solution for many industries. In particular, it will be perfect as a cabinet for CCTV installations, where it will accommodate, for example, a DVR, PoE switch, PDU strip and DIN rail devices. Our cabinet offers excellent organization, but also security for your equipment.

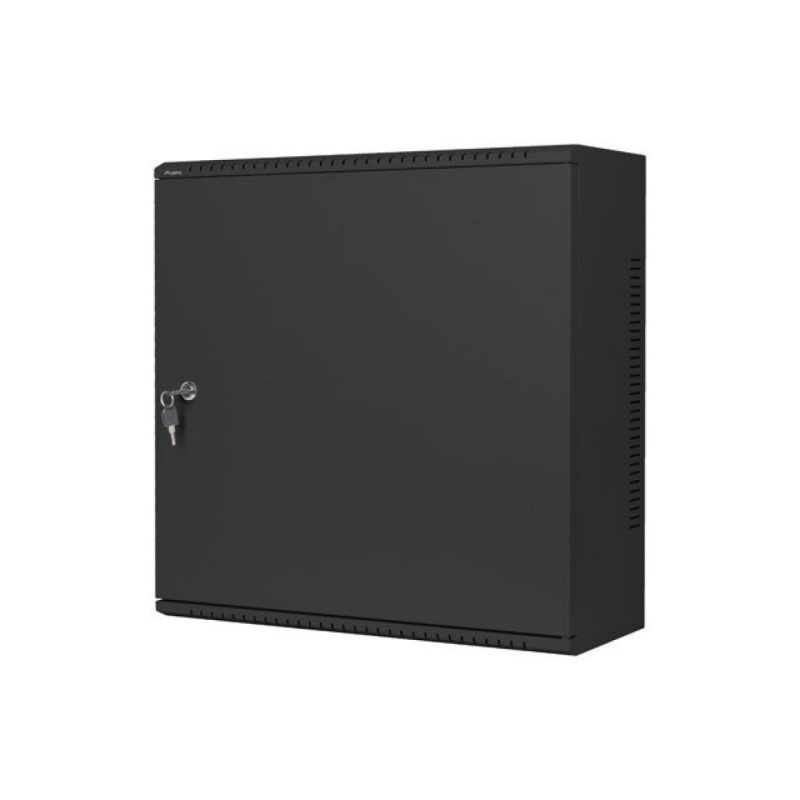

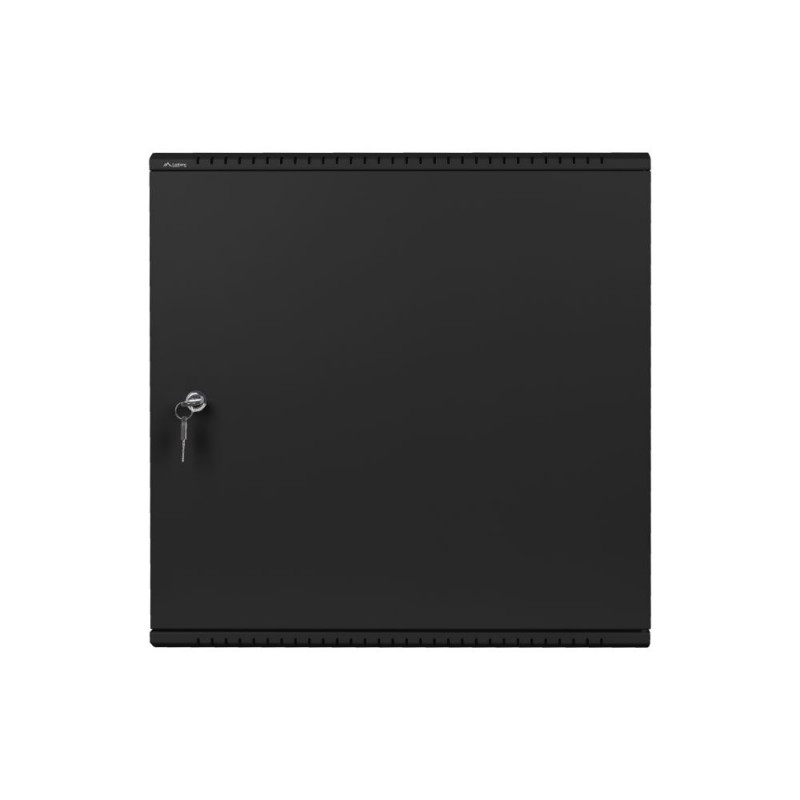

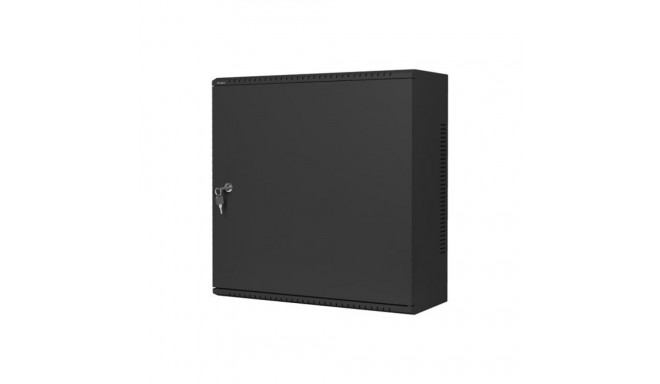

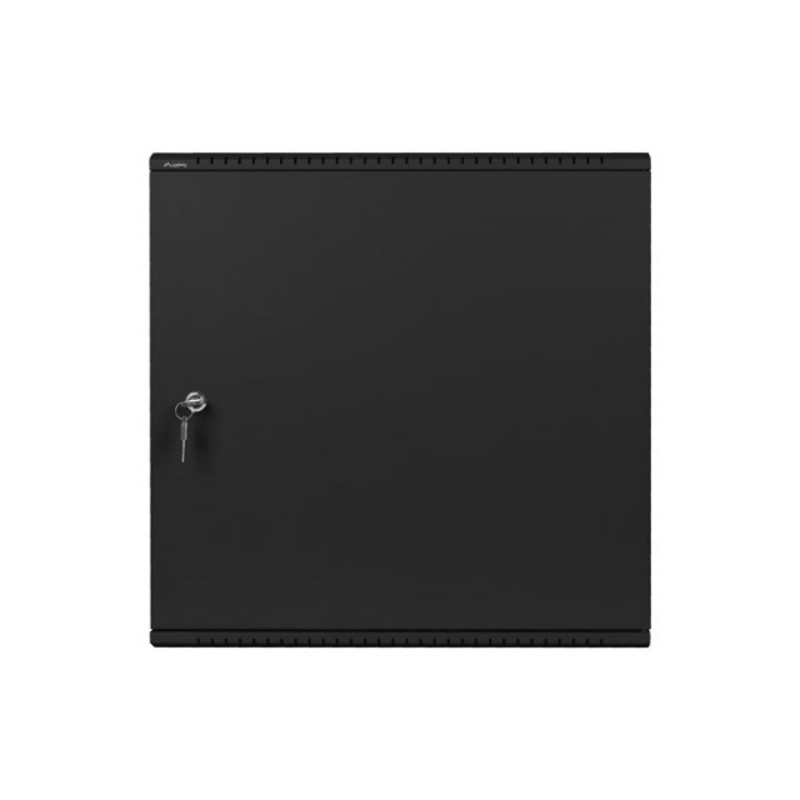

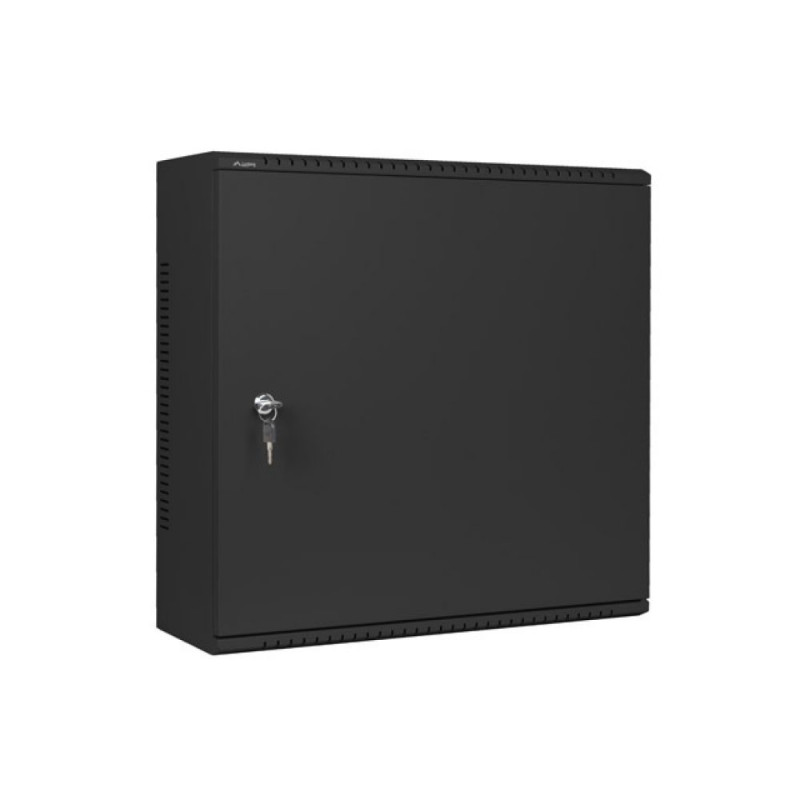

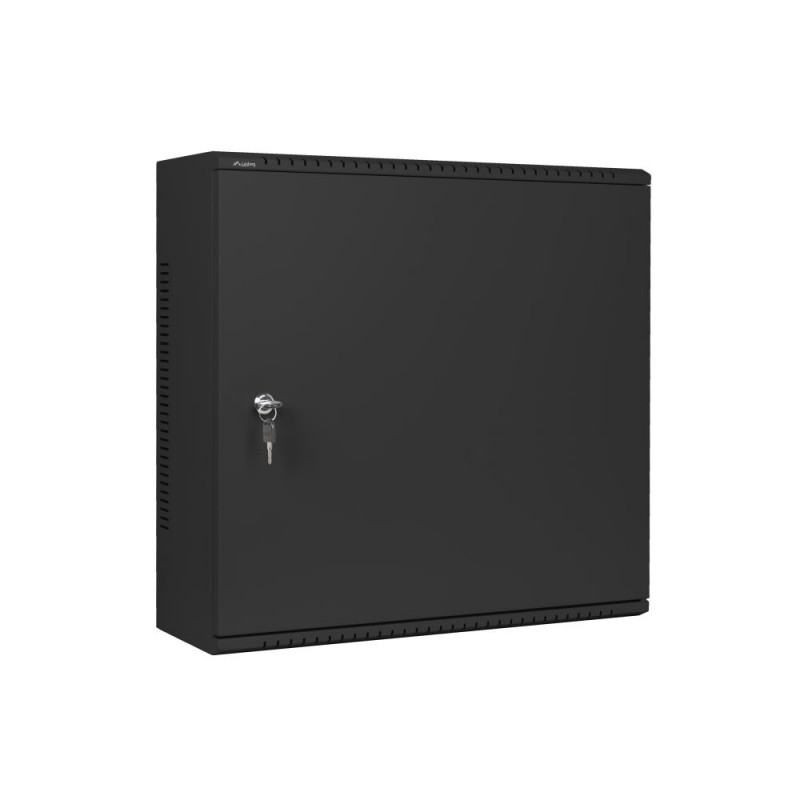

WAF1 hanging cabinet black - assembled and ready to use

Thanks to its compact size, the cabinet does not take up much space, which is important for limited spaces, while at the same time it does not attract undue attention thanks to its discreet appearance. It is a solution that combines functionality, space saving and aesthetics.

Our cabinet comes in a single carton, pre-assembled and ready to use right out of the box. You no longer have to worry about complicated assembly. The cabinet is equipped with four holes in the wall that allow it to be securely fastened to the wall with wall plugs, providing added security and confidence that your IT equipment will be stored in perfect order. This is an ideal solution for those who appreciate simplicity and functionality.

Great possibilities and many applications

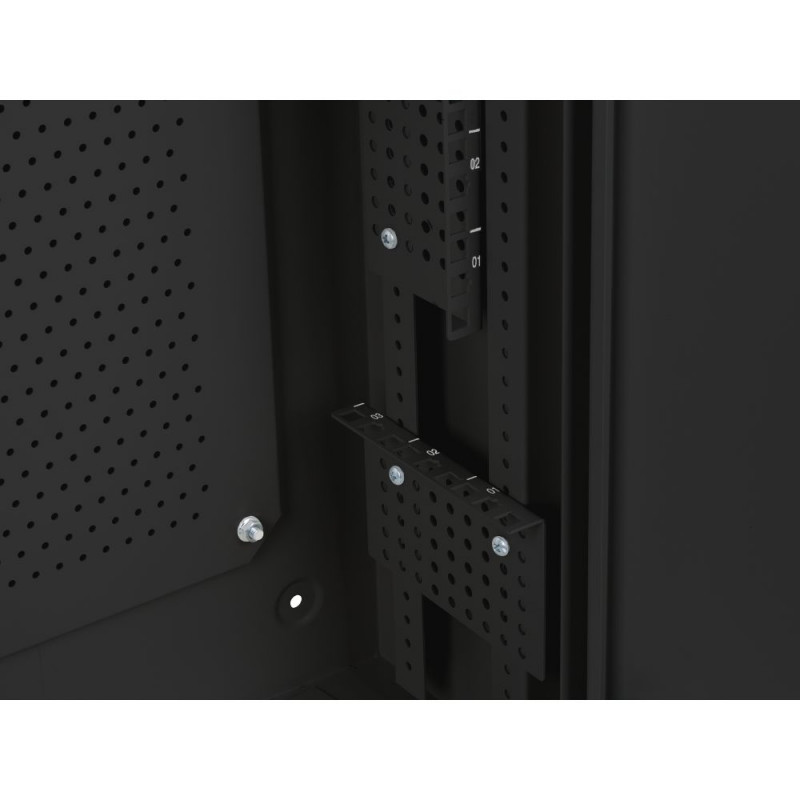

WAF1 cabinets provide security for equipment and convenience of use and configuration for professionals. They are equipped with two 6U high and 3U deep utility rails, allowing equipment to be mounted both vertically and horizontally. This gives the user complete freedom in the arrangement of IT equipment, customizing the cabinet and its equipment to their individual needs. This is an ideal solution for those who need greater flexibility in organizing their equipment.

In addition, our cabinet is equipped with double-sided opening doors, which facilitate access to the interior and handling of equipment. This is a practical solution that makes maintenance and management of IT equipment much easier.

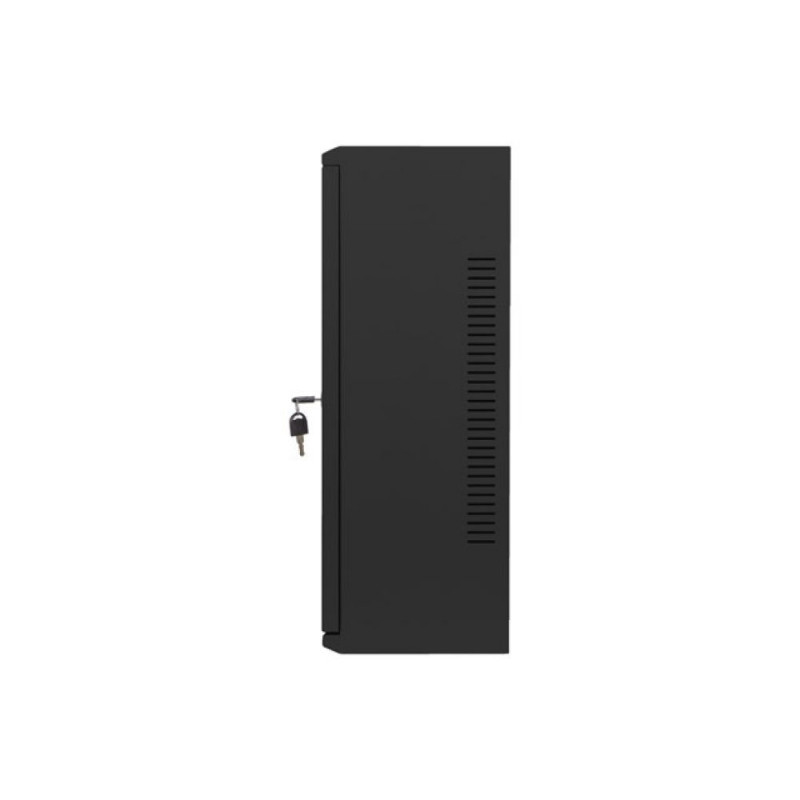

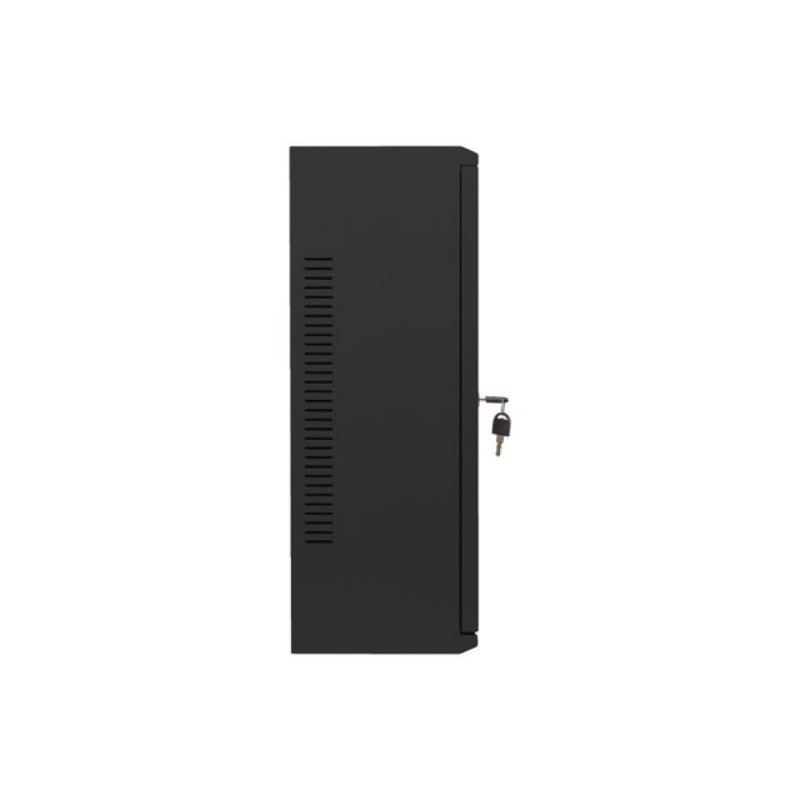

Ventilation holes in the WAF1 RACK cabinet

This ready-to-use WAF1 cabinet is not only an ergonomic and aesthetically pleasing solution, but also provides adequate air circulation. The module's top and bottom panels, as well as its side walls, feature vents that help keep your IT equipment at the right temperature. This way you can be sure that sensitive equipment will not overheat and will work in perfect condition for years to come.

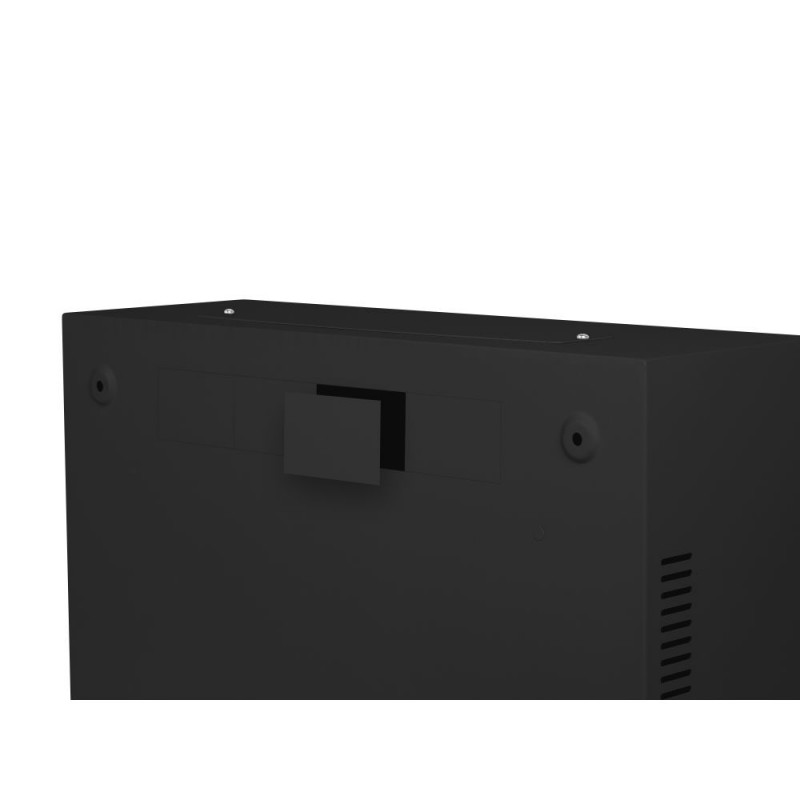

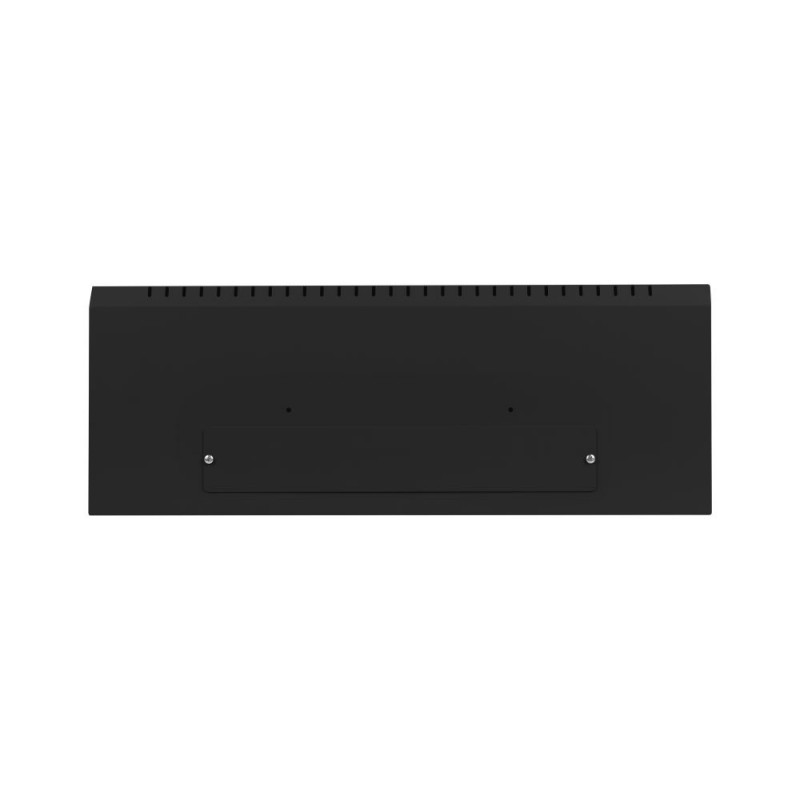

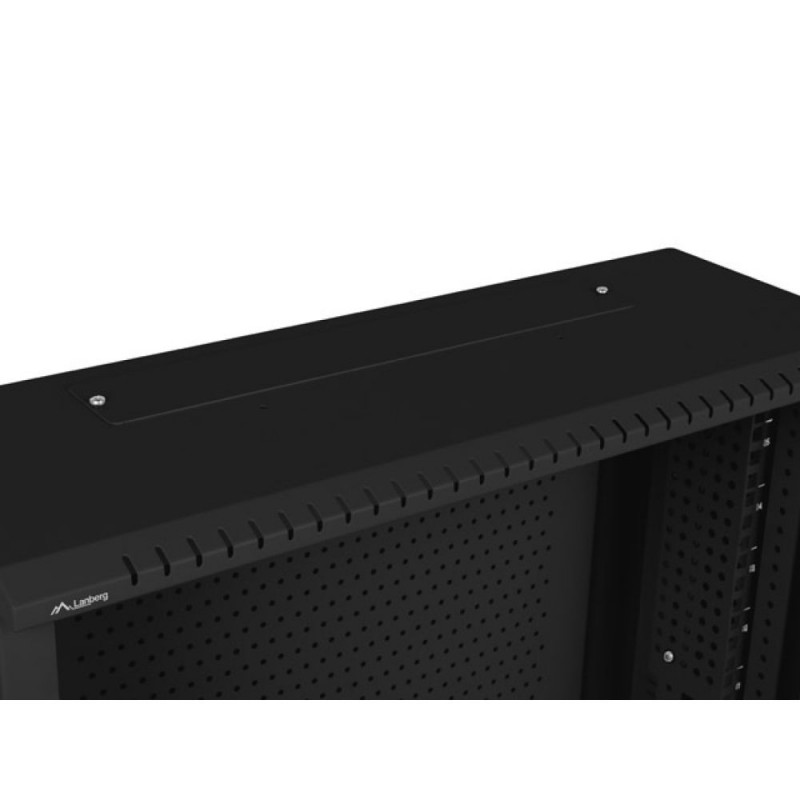

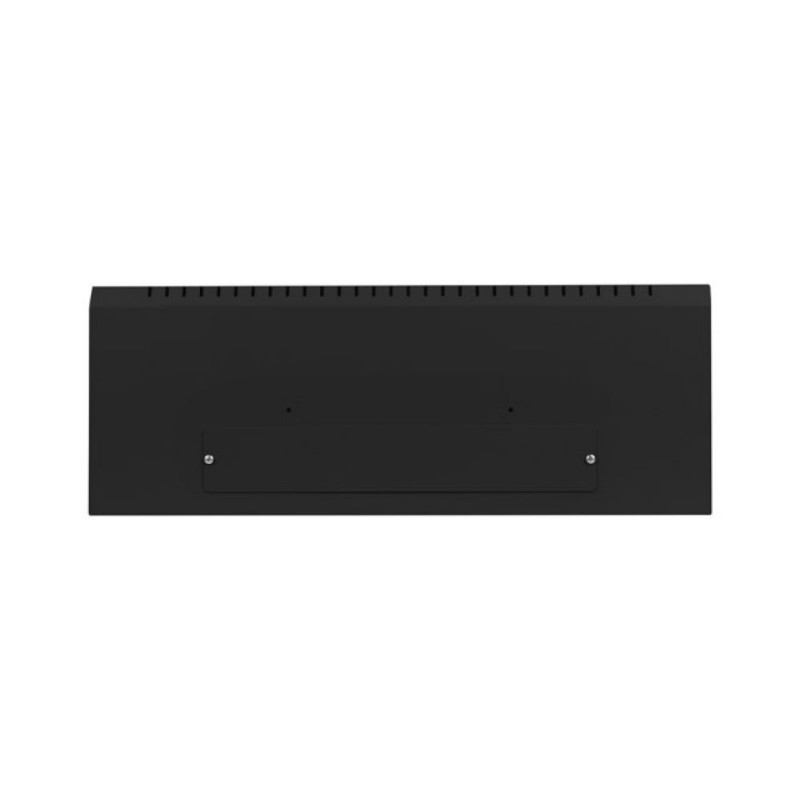

Cable openings in the top and bottom panels

The top and bottom panels of the WAF1 cabinet feature unscrewable cable holes that allow you to easily and conveniently install a Lanberg brand brush panel. This gives you full freedom to customize the cabinet according to your needs and requirements.

These unscrewable cable openings also make it easier to manage wires and cables, which helps keep your IT equipment in order.
Equipment for the medal

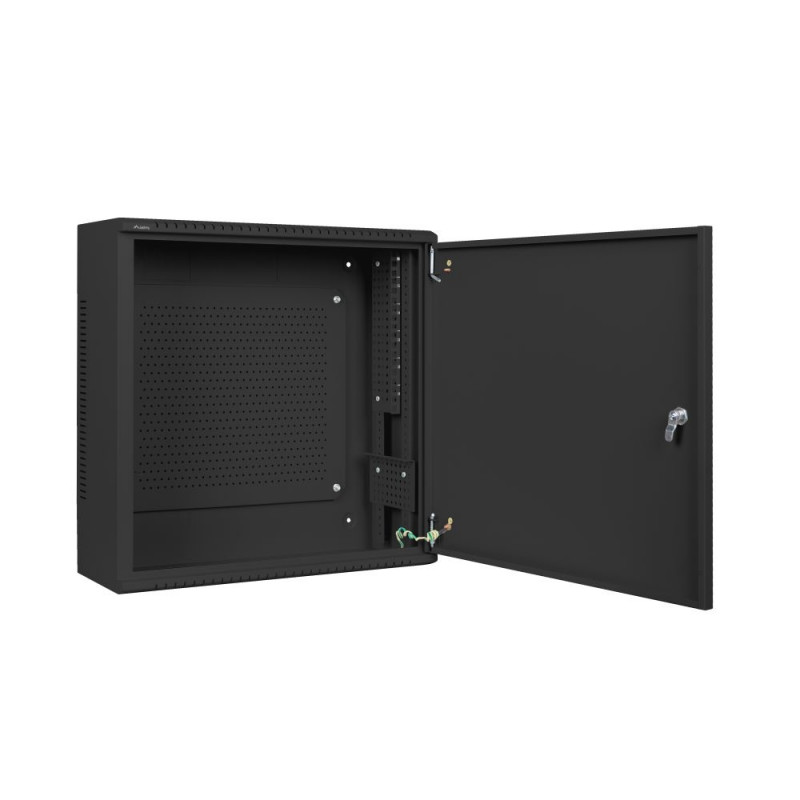

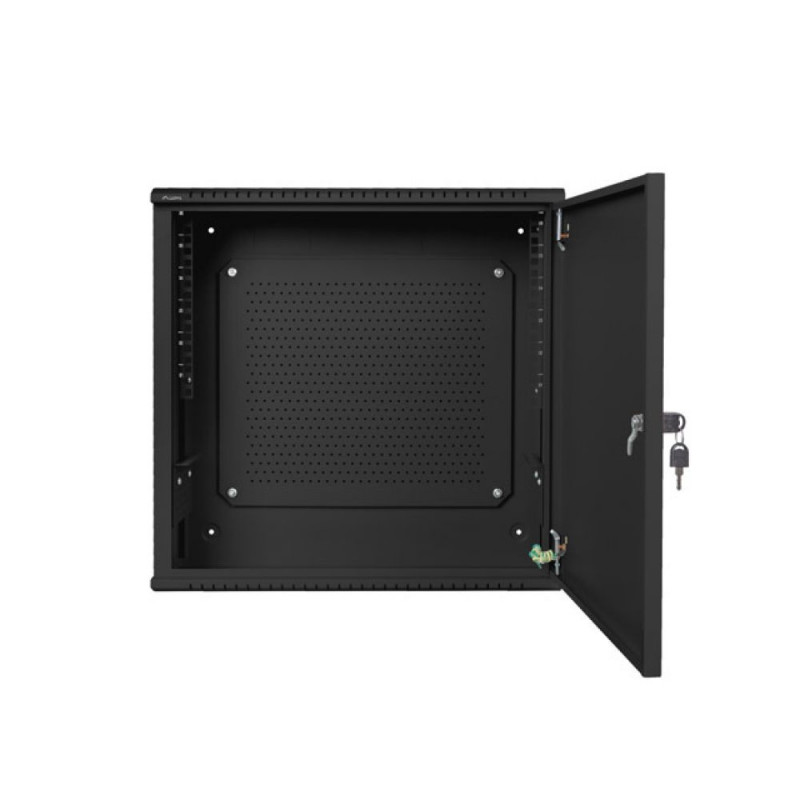

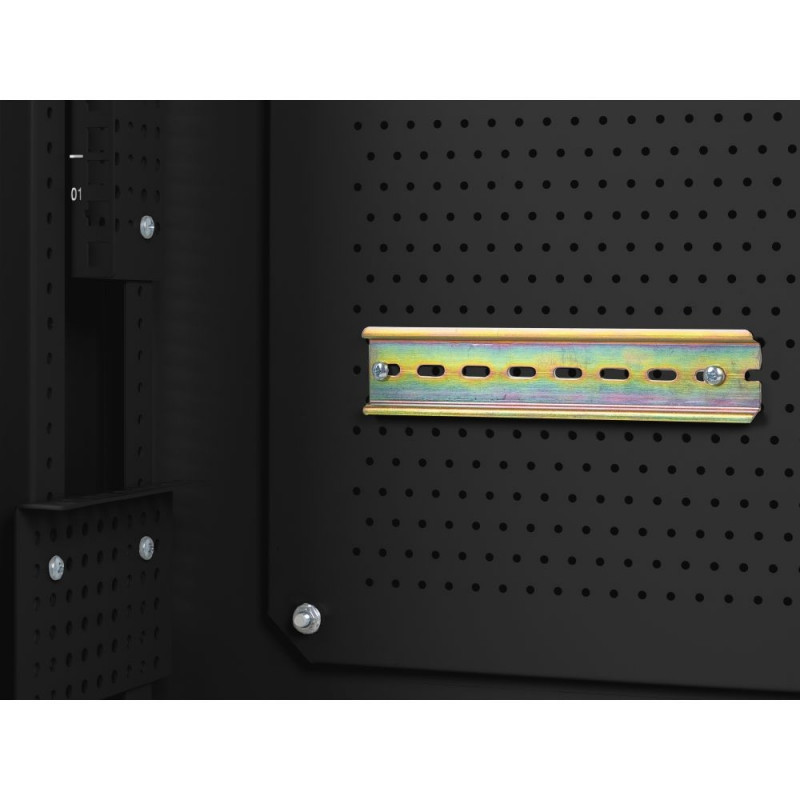

Among other things, the interior of the WAF1 series cabinets has been equipped with a mesh panel on the back wall. With this solution, you can easily attach various components to it with M4 screws, ensuring reliable attachment and organization of your equipment.

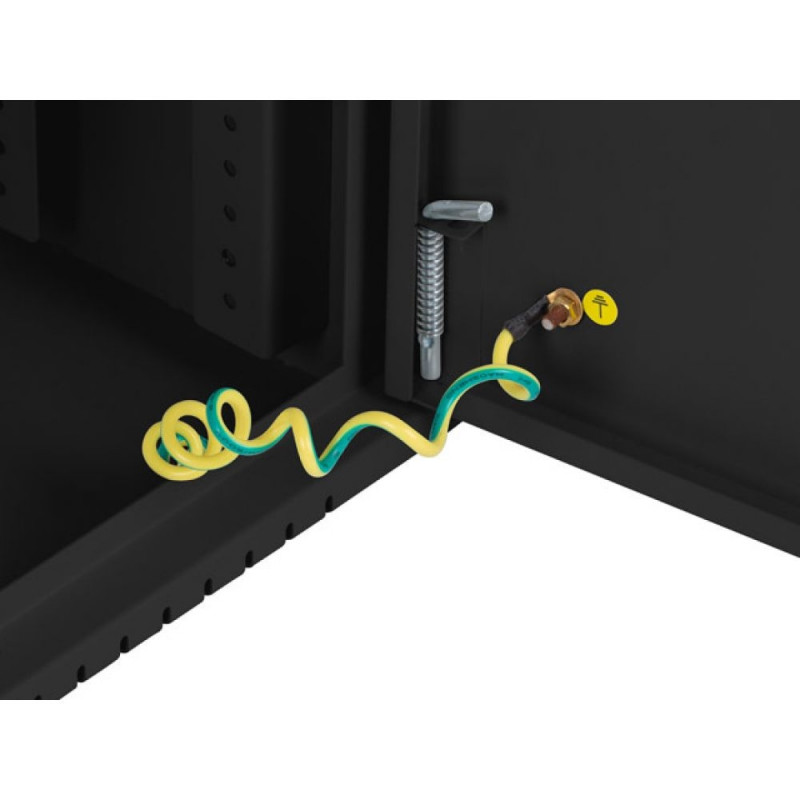

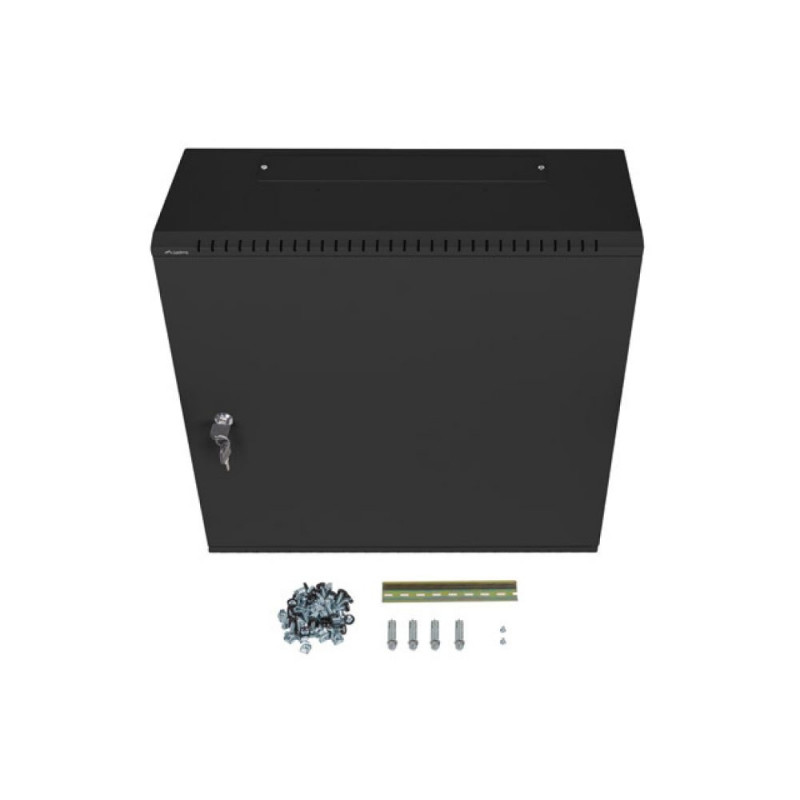

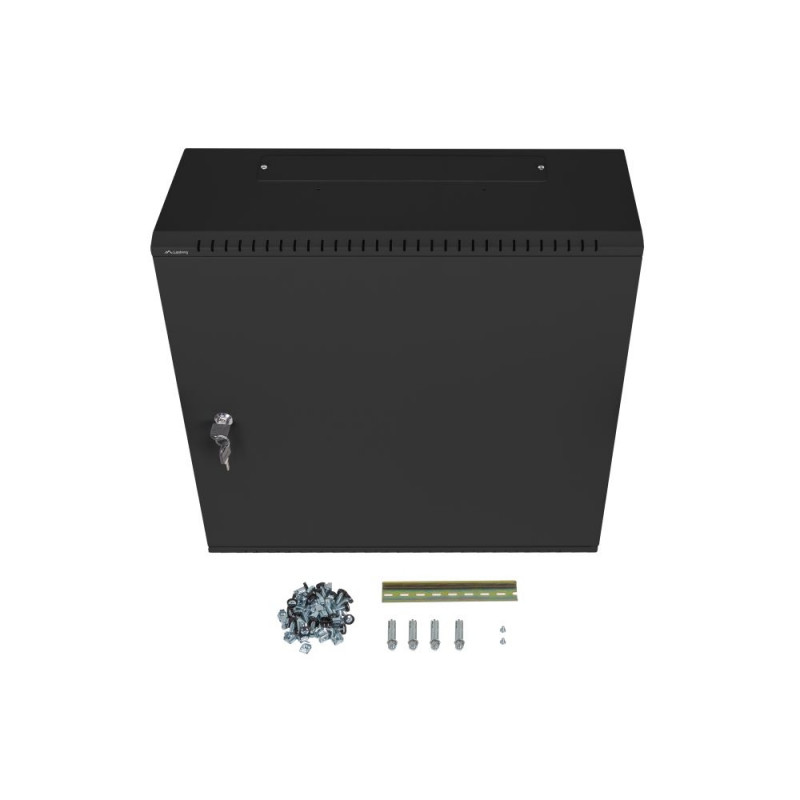

A DIN rail is also included, allowing you to mount and place devices or accessories on it according to your needs. In addition, mounting anchors, a grounding cable and M6 screws guarantee not only stability, but also the safety of your equipment.

Comfort of use and high ergonomics

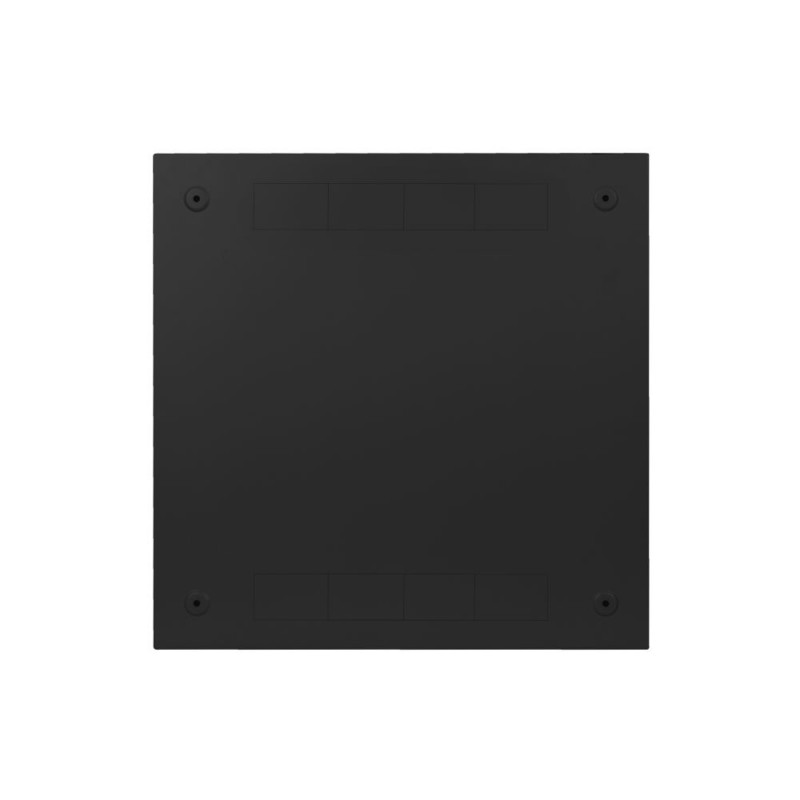

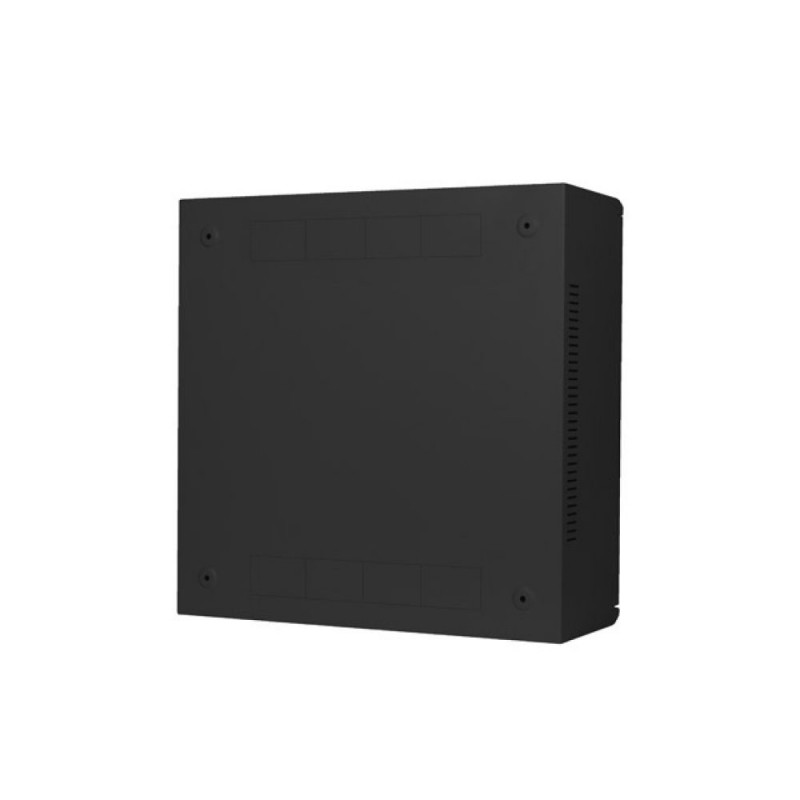

The WAF1 cabinet is designed for maximum convenience of use and flexibility. In its back wall you will find 8 break-out holes that serve as grommets, allowing you to customize the cabinet's interior to your individual needs. It's a solution that allows you to easily install cables, wires and accessories without having to disassemble the cabinet or drill new holes.

These punched holes in the back wall of the cabinet are an efficiency-enhancing feature that ensures your IT equipment is always properly connected and organized. Whether you need grommets for Ethernet cables, power cables, or any other type of cable, our cabinet allows you to adapt to your requirements.
Specifications
Type of cabinet Wall mount
ICT depth 3 U
Size 19"
ICT height 6 U
Assembly type Assembled
Working depth 143 mm
Working height 500 mm
Front door type Metal
Door type Single-leaf
Maximum front door opening angle 220 °
Maximum static load 60 kg
Number of vertical rails 2
Number of horizontal rails 2
Thermostat No
LCD panel No
Colour Black
RAL color RAL9004
Weatherproof rating IP20
Front door thickness 1 mm
Upper & lower panel thickness 1 mm
Side panel thickness 1 mm
Mounting rails thickness 1.5 mm
Frame thickness 1.2 mm
Other elements sheet thickness 1 mm
Depth 200 mm
Width 540 mm
Height 540 mm
Weight 11 kg
Standard ANSI/EIA RS-310-D, IEC297-2:1982, DIN 41491/PART 1, DIN 41494/PART 7, ETSI
Grounding Details Front door, Bottom panel
Included Accessories M6 screws, Front lock, Grounding cable, User Manual, DIN rail TS-35

Mõõtmed ja kaalud

Brutokaal
11 kg
Pakendi laius
54 cm
Pakendi kõrgus
54 cm

Toote koodid

EAN
5901969441697
Tootja kood
WAF1-5203-06-00B
