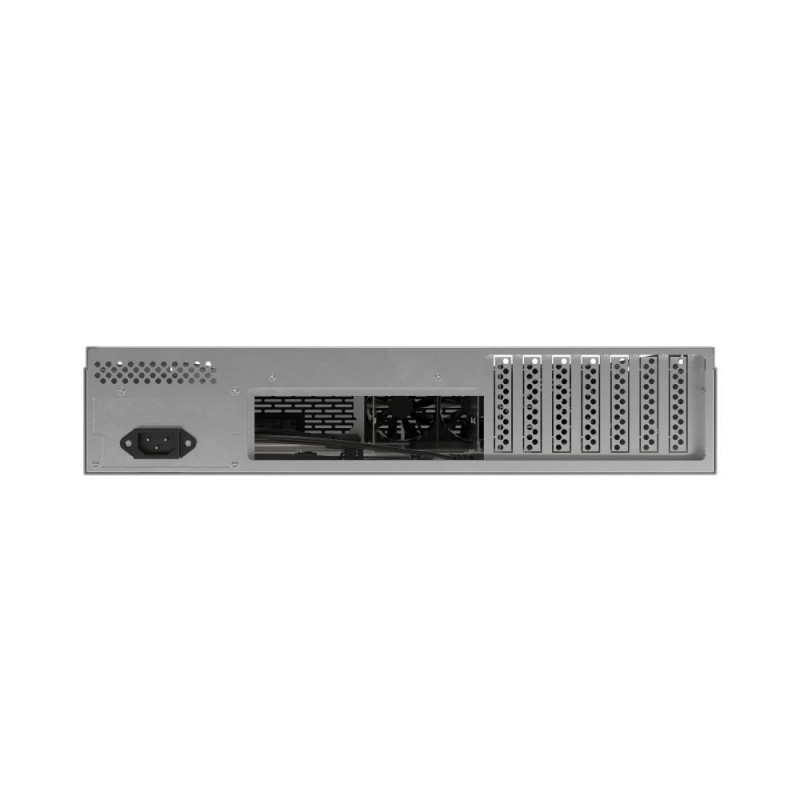

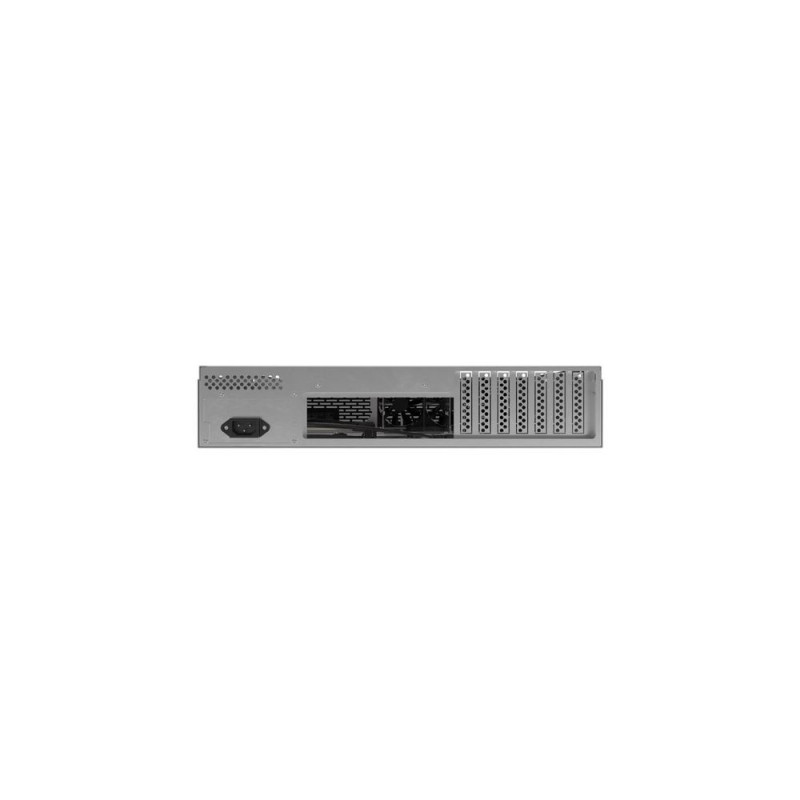

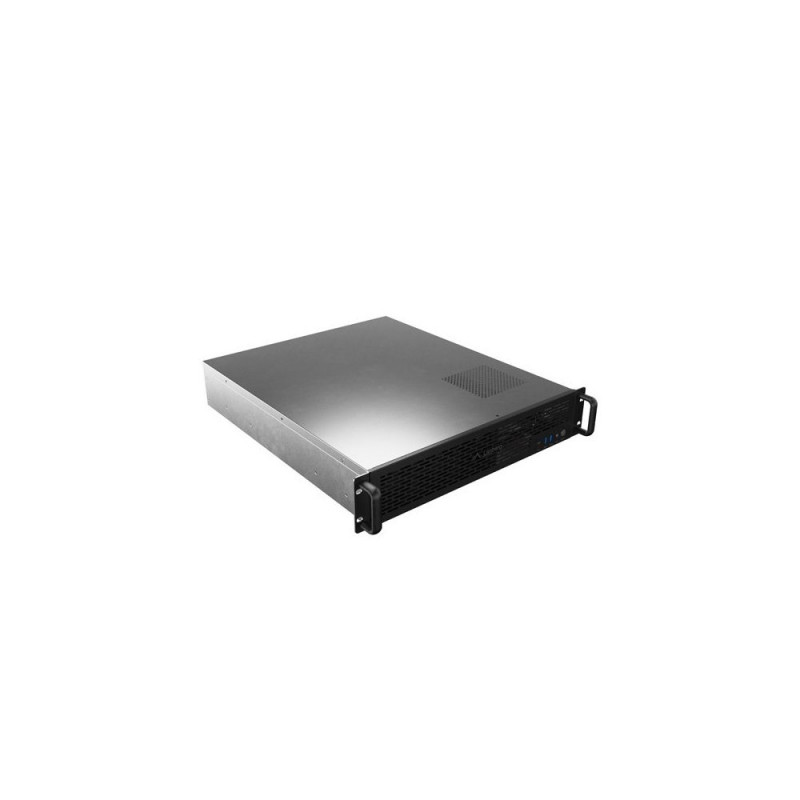

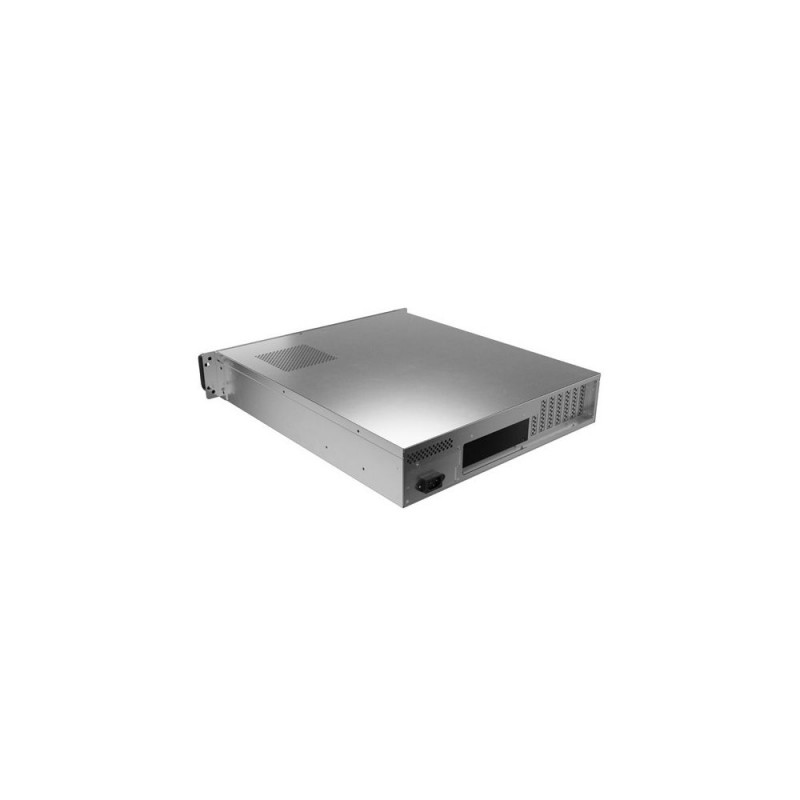

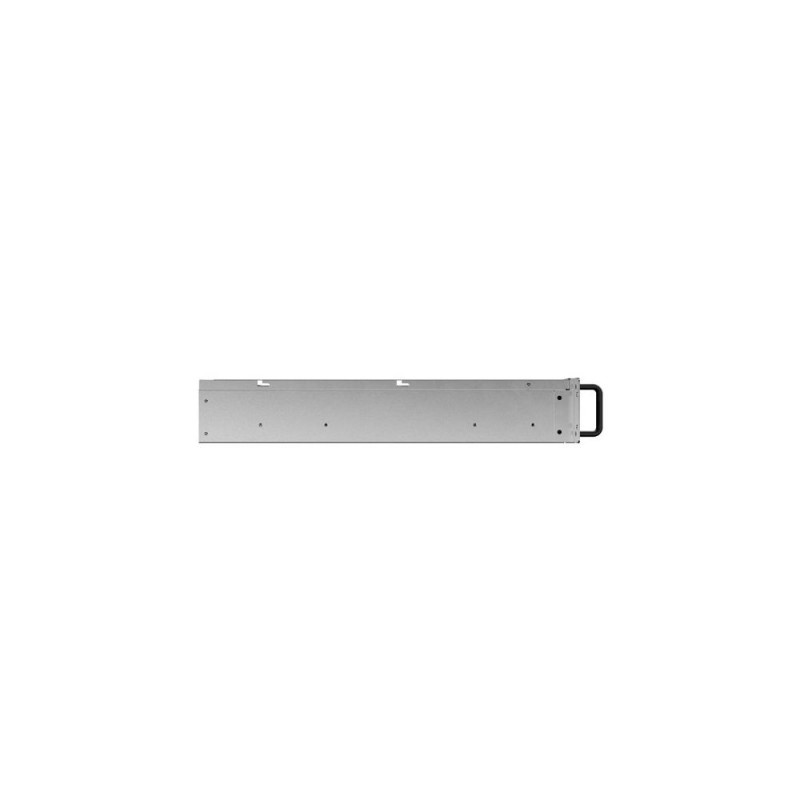

RACKMOUNT SERVER CHASSIS LANBERG ATX 520/12 19"/2U

85,99 €

Järelmaksuga ostes alates 2,57 € kuus

Ava järelmaksukalkulaator

Photopointi järelmaksu kalkulaator

Järelmaksuga ostmiseks lisa tooted ostukorvi ja vali seal makseviisiks järelmaks

Põhiinfo

RACK 19" 2U server cases from LanbergOur 19" RACK server chassis is an excellent choice for both professional data centers and advanced individual users. This 2U case is designed to meet a variety of server construction and operation needs, while hav
Lisa ostukorvi

Tarneaeg 7-10 tööpäeva

Kohaletoimetamine al. 0 €

14 14 päeva tagastusõigus internetist ostmisel

Vabandage, tooteandmed on tõlkimisel. Kui vajate toote võõrkeelse teksti mõistmisel abi, andke sellest palun teada e-posti teel info@photopoint.ee. Saadame teile kiirelt soovitud tõlke.

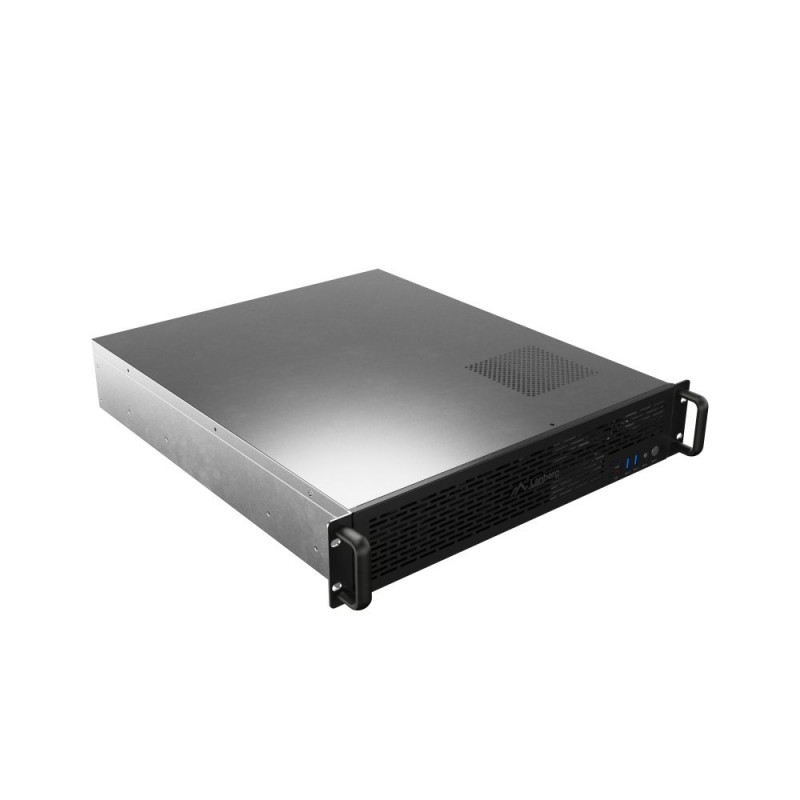

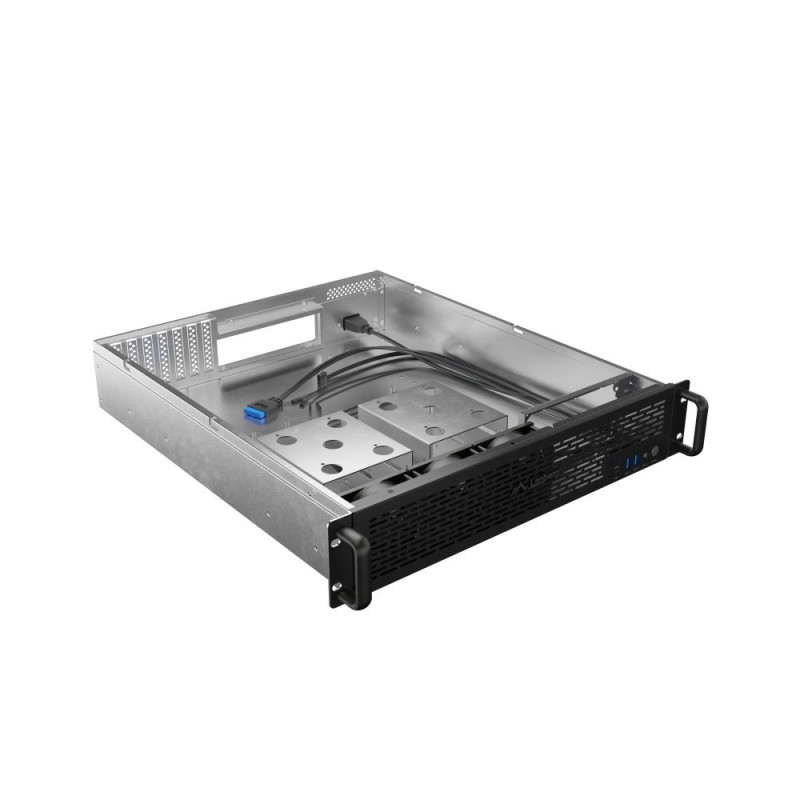

RACK 19" 2U server cases from Lanberg

Our 19" RACK server chassis is an excellent choice for both professional data centers and advanced individual users. This 2U case is designed to meet a variety of server construction and operation needs, while having a real impact on the performance of the entire system. Thanks to its well-thought-out design, it will perform well in business environments where reliability, flexibility and efficient airflow are important.

The new series is an advanced server chassis with a variety of fan configurations and mounting space, making it even easier to expand hardware capabilities. These enclosures are distinguished by their robust construction, space for numerous storage media, and rich I/O panels for quick connection of devices via USB 3.0 ports. Importantly, our models support a variety of motherboard standards, and practical accessories are included for easy installation. As a result, each server can be configured optimally for server operation and flexibly adapted to changing needs.

Supported ATX, ITX, Micro-ATX and SSI CEB motherboards

The SC01-5202-12B server case is compatible with ATX, ITX, Micro-ATX and SSI CEB motherboards. This standard is ideal for servers and workstations based on Intel Xeon and AMD Epyc processors (X399/C600 chipsets). This approach provides a wide range of component choices and allows you to create configurations from basic servers to advanced systems for special tasks. As a result, the chassis can easily find its way both in a corporate environment and in a more private application within a home network.

Impressive cooling: 3 powerful 80 mm PWM fans

Good cooling and free airflow are key features for the proper operation of components. The SC01-5202-12B relies on compact but efficient cooling. The server case is equipped with 3 PWM 80 mm fans with adjustable speed (900-2600 RPM) and low noise level (26.1 dB). Thanks to a perforated front with a replaceable dust filter, air flows freely through the interior, ensuring optimal working conditions in a server room or RACK cabinet.

Easy expansion with space for multiple hard drives and SSDs

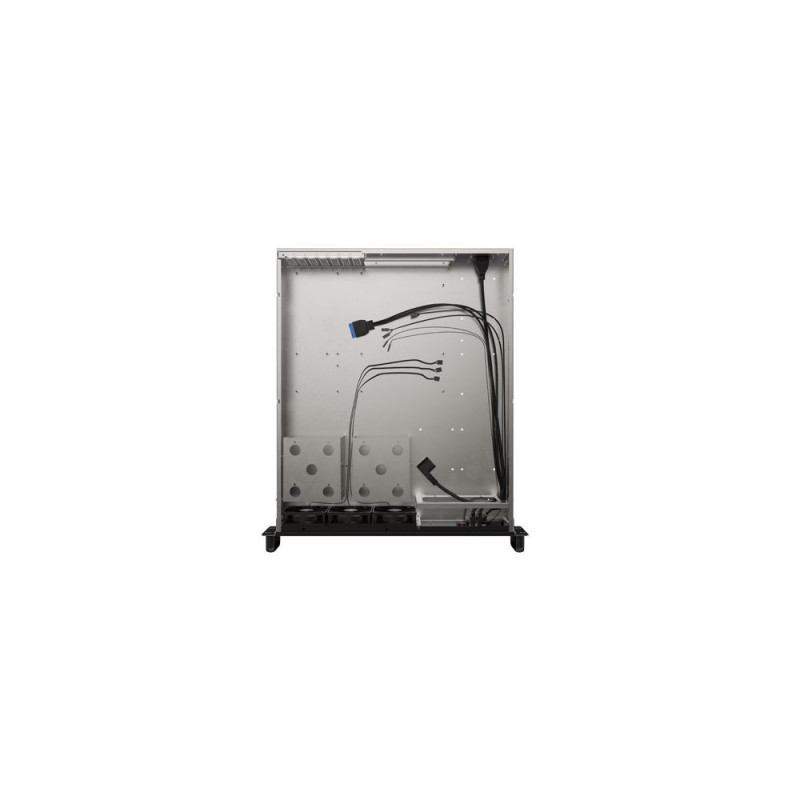

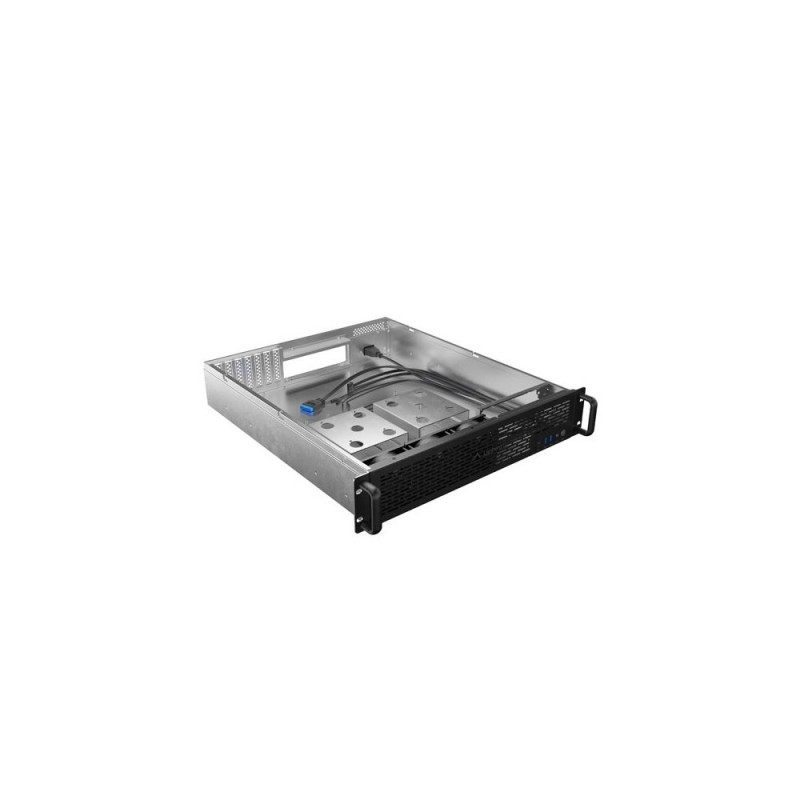

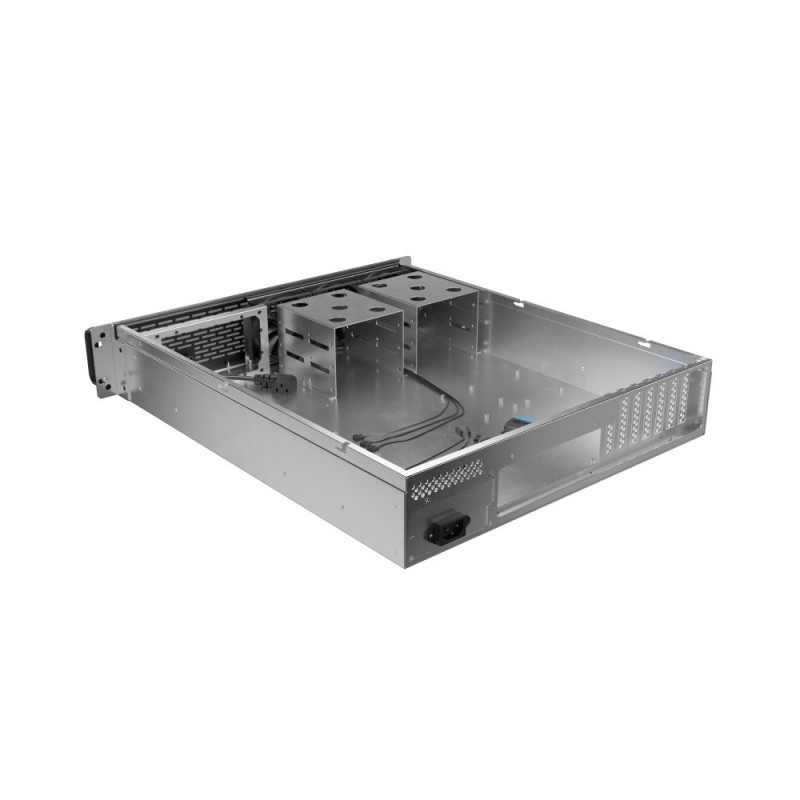

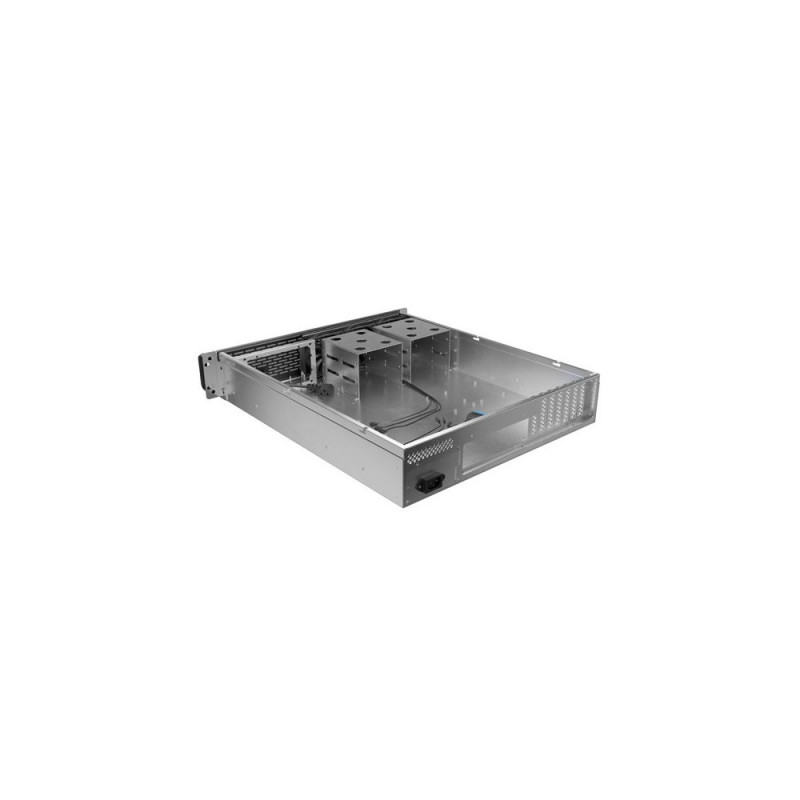

This model, when properly configured, provides space for 4 2.5" drives and 6 3.5" drives, which gives you the possibility to create a really large storage space. Thus, the SC01-5202-12B server case allows you to easily expand the disk configuration without modifying the entire system. For users focusing on scalability and time saving, such a solution proves to be extremely practical.

Solidly constructed server case:
durability and resistance to damage

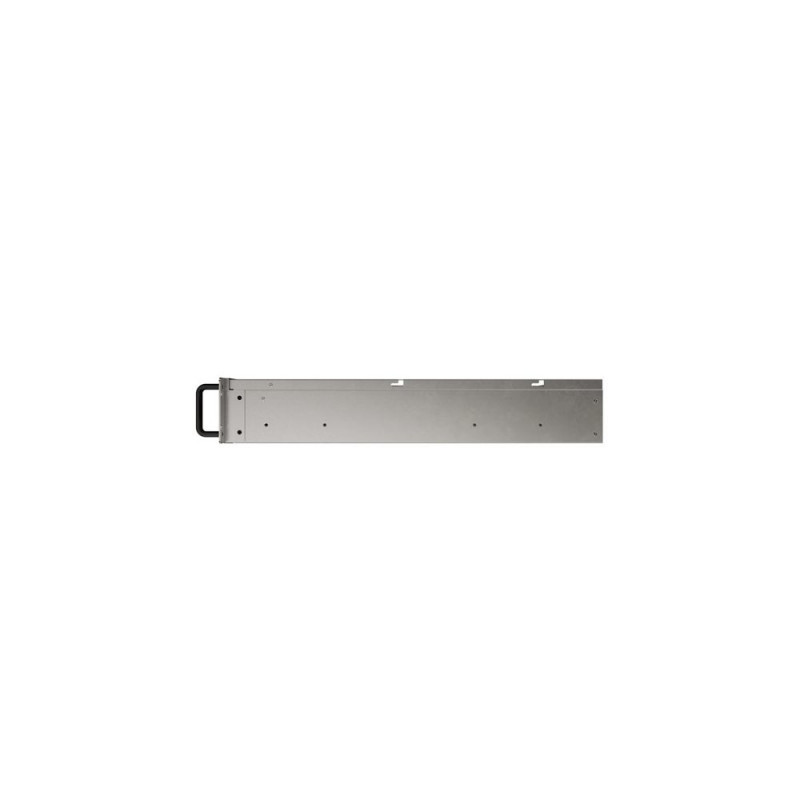

Each Lanberg server case is made of galvanized steel with a thickness of as much as 1.2 mm, which significantly increases its resistance to mechanical damage. Compared to traditional solutions such as home tower server cases or the less well-made some ATX server cases, our RACK cabinet models stand out for their extra structural rigidity. This translates into years of reliability in the operation of any server. As a result, you can rest assured that your investment will bring you long-lasting benefits and remain stable even under heavy loads.

Connect multiple components to a rich I/O panel

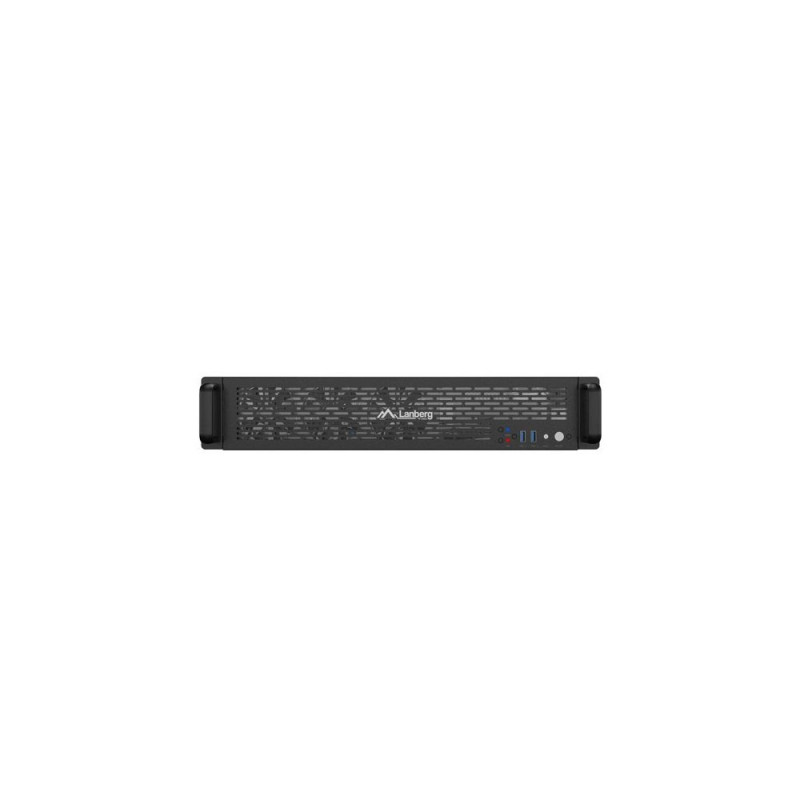

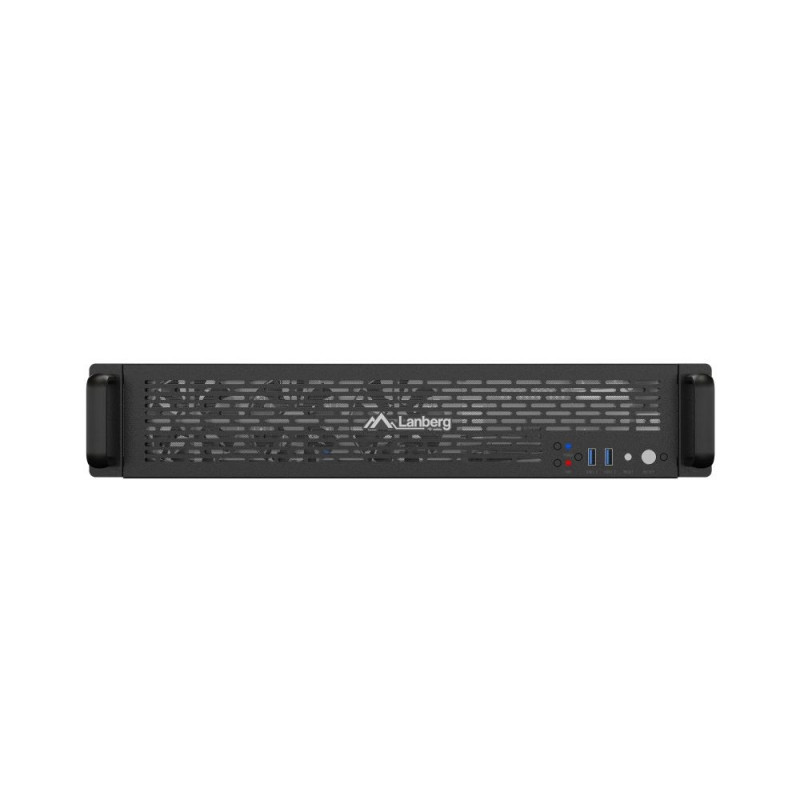

A server and a server case are a duo that requires quick access to the most important ports. That's why you'll find 2 USB 3.0 Type-A ports on the front panel of our RACK models, as well as Power and Reset buttons. This makes server management convenient and intuitive, whether you're working in a professional server room or as part of an extended setup in a small or medium-sized business.

Dedicated accessories for suitable power supply
and mounting in 19" RACK cabinets

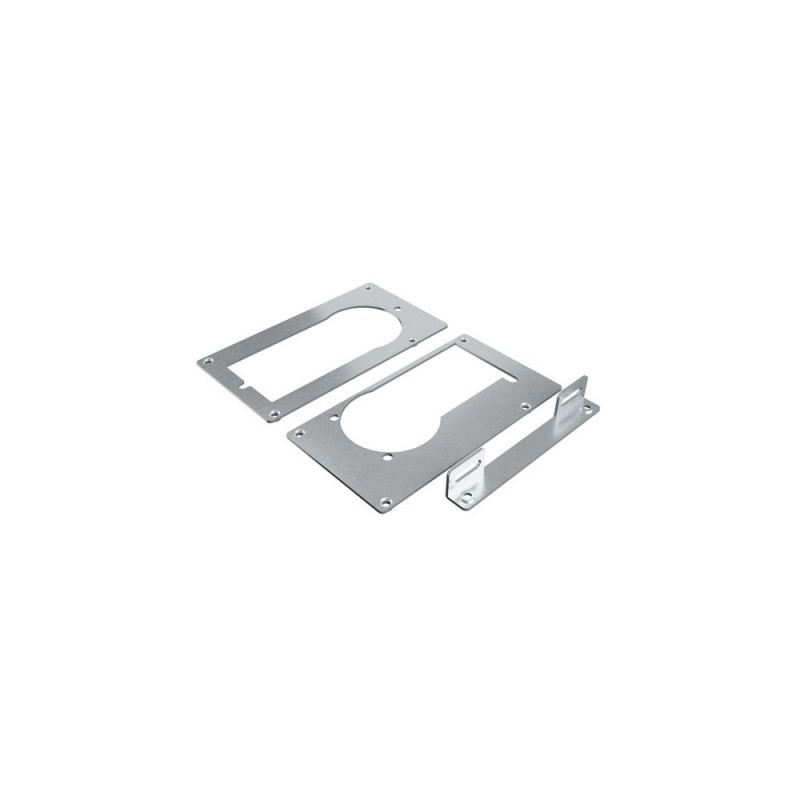

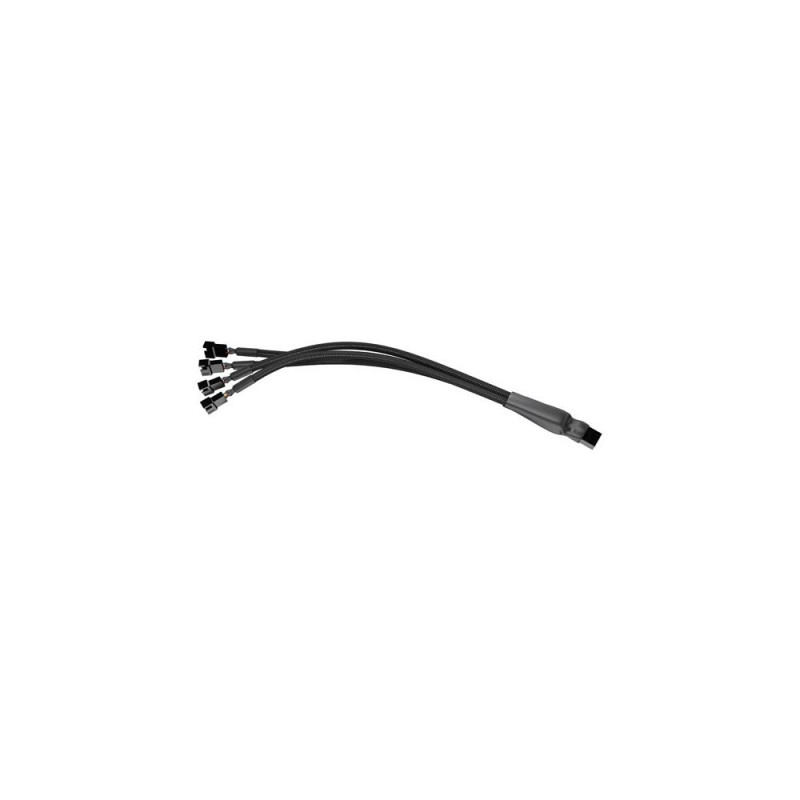

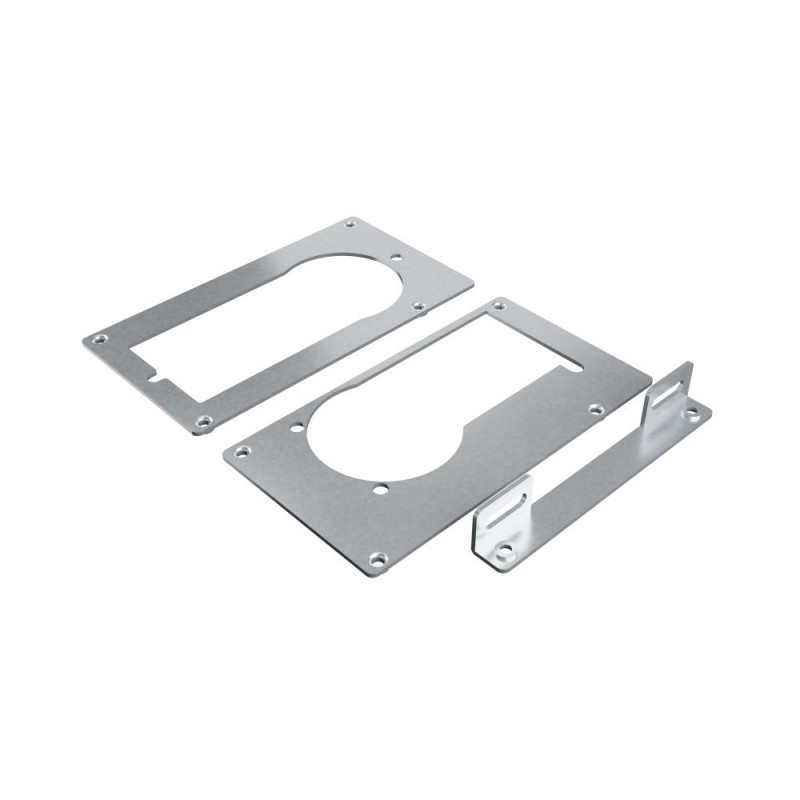

Lanberg cases in this series offer a set of additional accessories: adapters for ATX, SFX and Flex ATX 1U power supplies, 1x PWM splitter and key lock. With these, you can easily mount the server in a 19" rack and customize the power supply. The complete accessory package means that even less experienced users can quickly get their server up and running.

Meet the SC01-5202-12B in action!Specification
ICT height 2 U
Motherboard form factor ATX, ITX, Micro-ATX, SSI CEB
Size 19"
Number of installed fans 3
Installed fans 3x 80 mm PWM
Rotational speed 900 - 2600 RPM
Fan lifetime 50000 h
Maximum CPU cooling height 72 mm
Fan controller PWM
Fan noise level 26.10 dB
Number of 2.5" drive bays (SSD/HDD) 4
Number of 3.5" drive bays (SSD/HDD) 6
Number of expansion slots 7
Compatible power supply standard ATX, FLEX, SFX
Power supply included No
Connectors USB 3.0 Type-A
I/O panel Power & Reset button, USB 3.0 Typ-A x2
Hot-swap No
Work signal LED
Material Steel, Galvanized steel
Colour Black
Environment humidity 35 - 85 %
Working depth 520 mm
Upper & lower panel thickness 1.2 mm
Side panel thickness 1.2 mm
Other elements sheet thickness 1.2 mm
Length 520 mm
Width 430 mm
Height 89 mm
Weight 7.5 kg

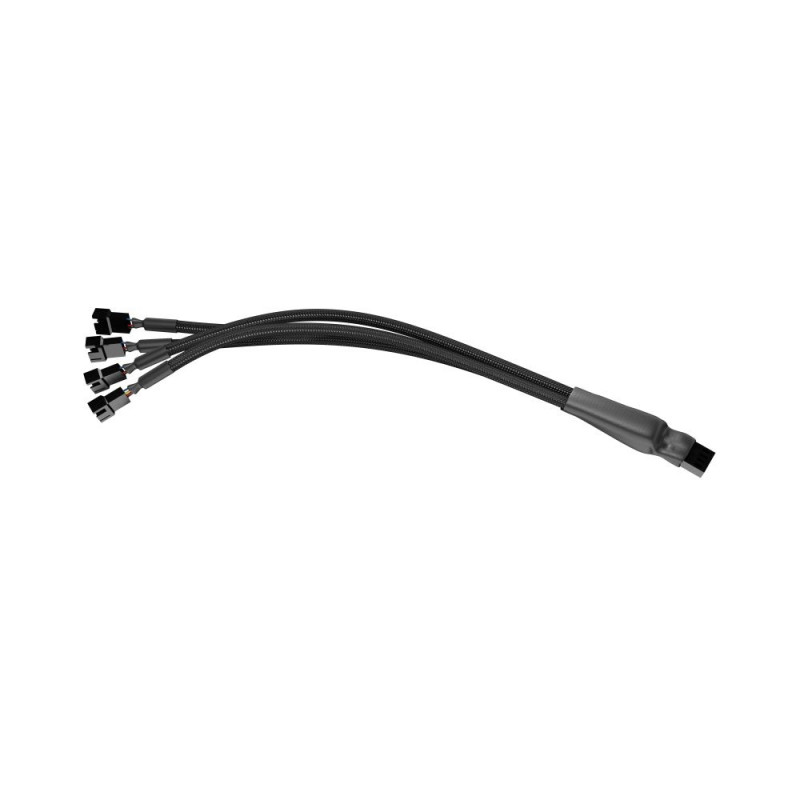

Included Accessories ATX, SFX power supply mounting adapter, Flex ATX power supply mounting adapter, 1U custom power supply mounting adapter (100mm wide), Flex ATX power supply rear mounting bracket, PWM 4-PIN fan splitter, Replaceable front dust filter

Mõõtmed ja kaalud

Brutokaal
7.5 kg
Pakendi laius
43 cm
Pakendi kõrgus
8.9 cm
Pakendi pikkus
52 cm

Toote koodid

EAN
5901969441710
Tootja kood
SC01-5202-12B
