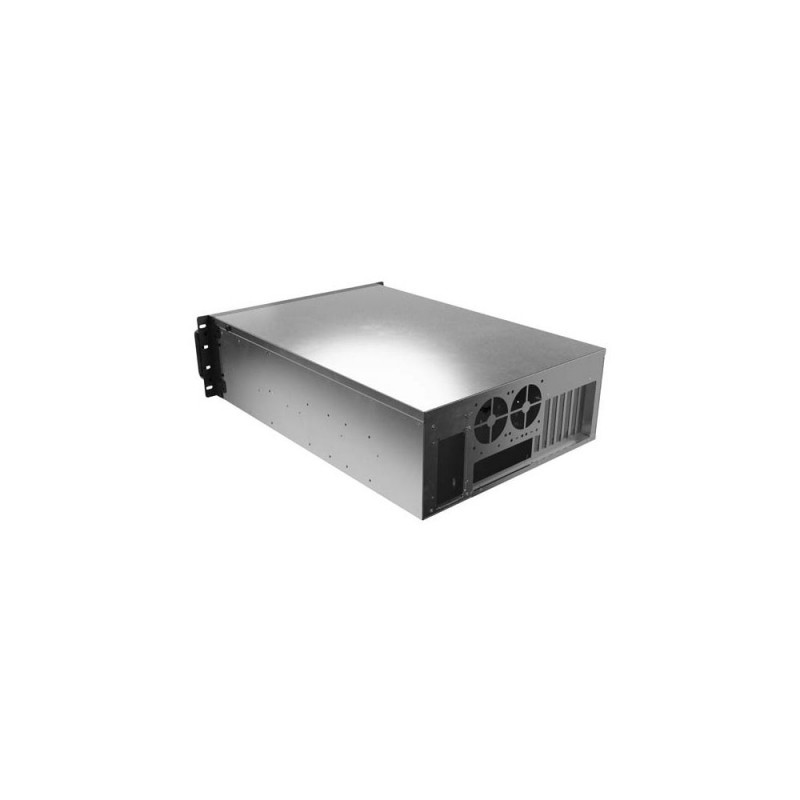

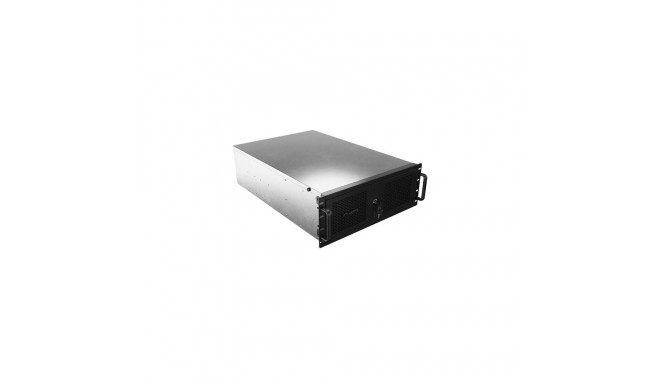

RACKMOUNT SERVER CHASSIS LANBERG E-ATX 650/12 19"/4U

140,99 €

Järelmaksuga ostes alates 4,81 € kuus

Ava järelmaksukalkulaator

Photopointi järelmaksu kalkulaator

Järelmaksuga ostmiseks lisa tooted ostukorvi ja vali seal makseviisiks järelmaks

Põhiinfo

E-ATX 650/12 19"/4U server chassisThe 19” 4U rack server enclosure is a solution designed for high-performance servers, professional workstations and large-scale data storage systems. Its well-thought-out design provides ample installation space, bro
Lisa ostukorvi

Tarneaeg 7-10 tööpäeva

See toode tuuakse sulle tasuta koju kätte

14 14 päeva tagastusõigus internetist ostmisel

Vabandage, tooteandmed on tõlkimisel. Kui vajate toote võõrkeelse teksti mõistmisel abi, andke sellest palun teada e-posti teel info@photopoint.ee. Saadame teile kiirelt soovitud tõlke.

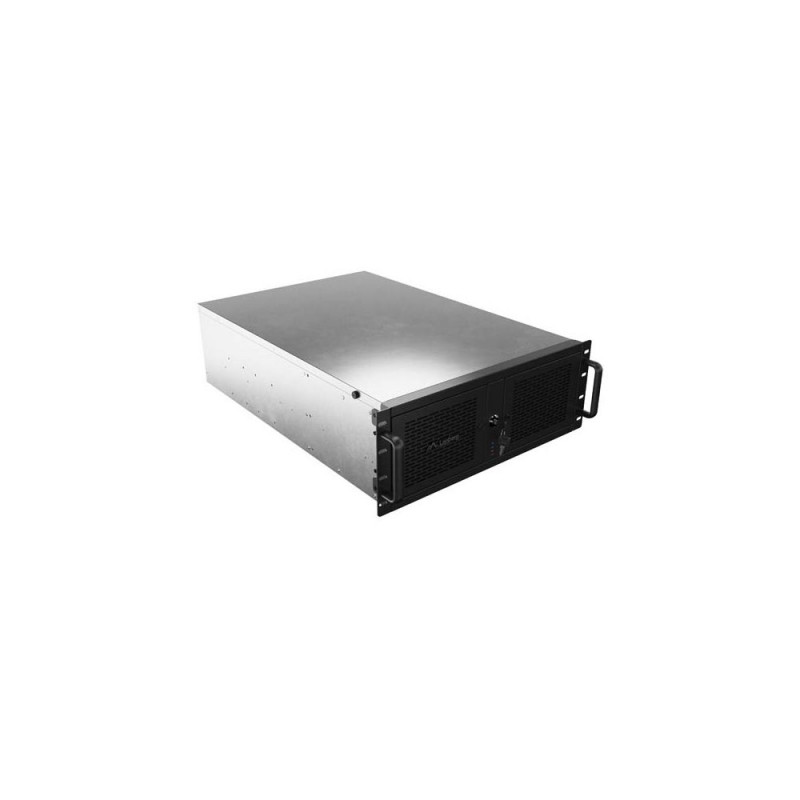

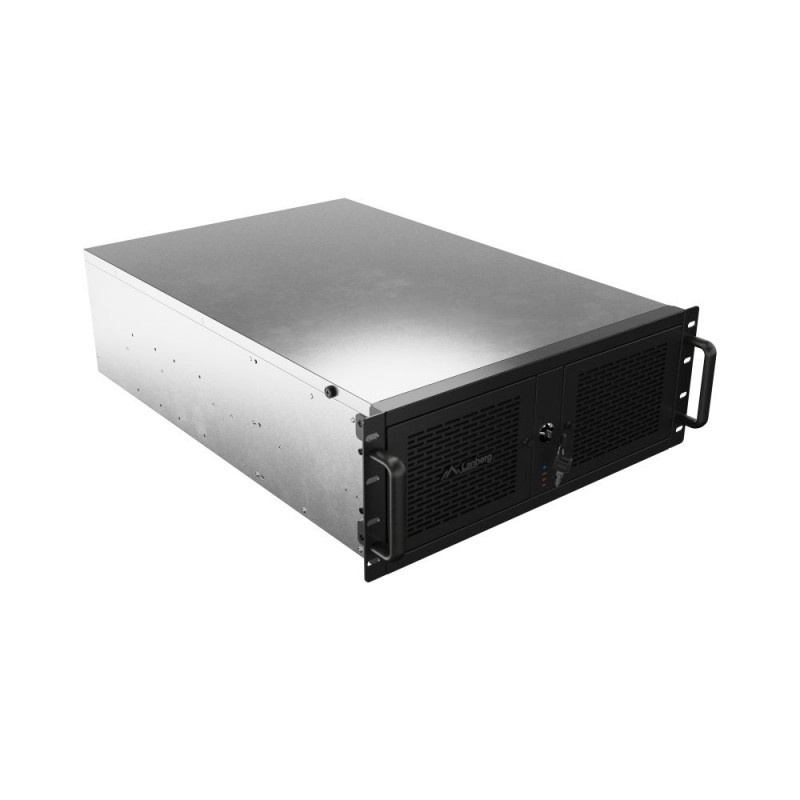

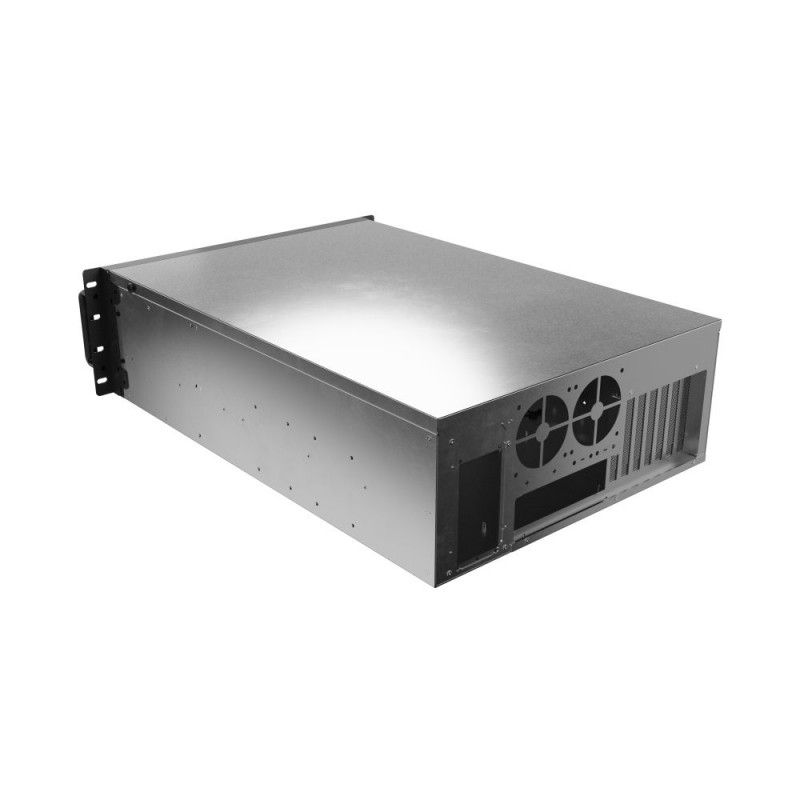

E-ATX 650/12 19"/4U server chassis

The 19” 4U rack server enclosure is a solution designed for high-performance servers, professional workstations and large-scale data storage systems. Its well-thought-out design provides ample installation space, broad compatibility with modern components and effective cooling for components operating under heavy loads.

The 4U format allows for the use of larger CPU cooling systems, long expansion cards and up to 15 storage devices. As a result, the chassis is ideal for use in server rooms and data centres, as well as in corporate IT systems, industrial environments and large-scale data archiving installations.

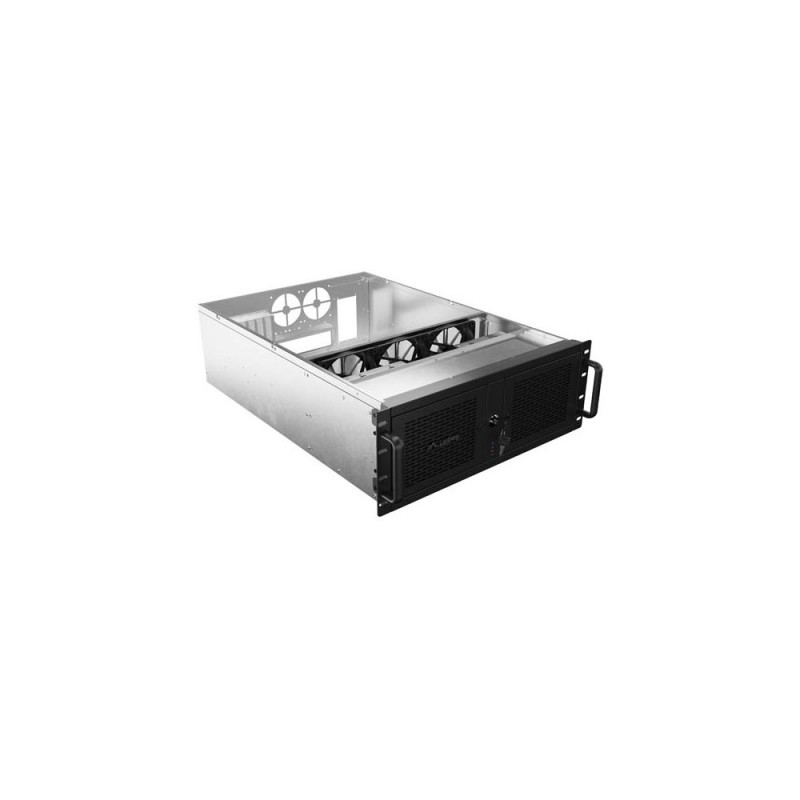

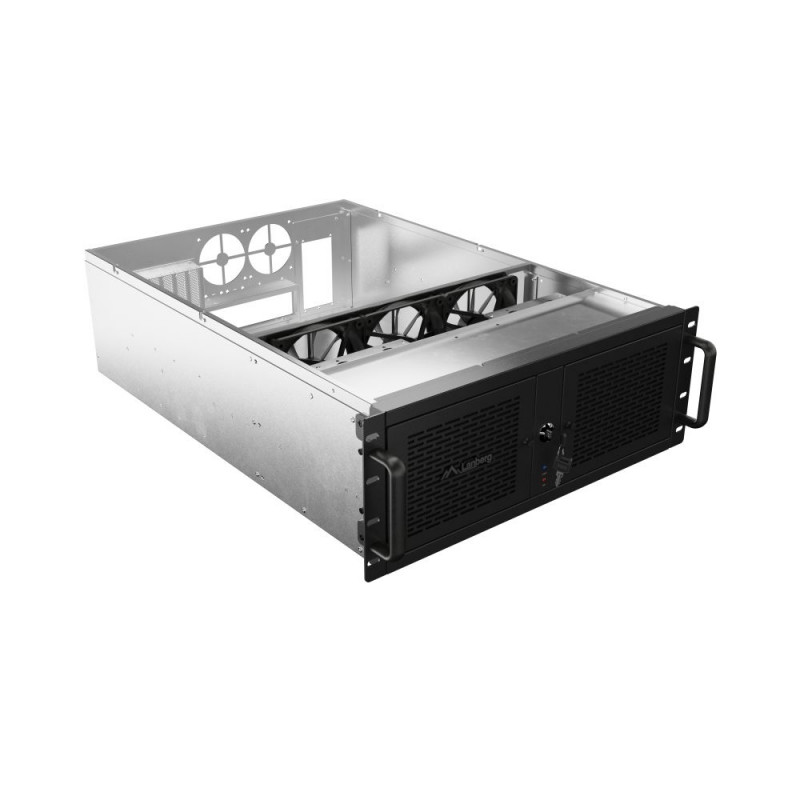

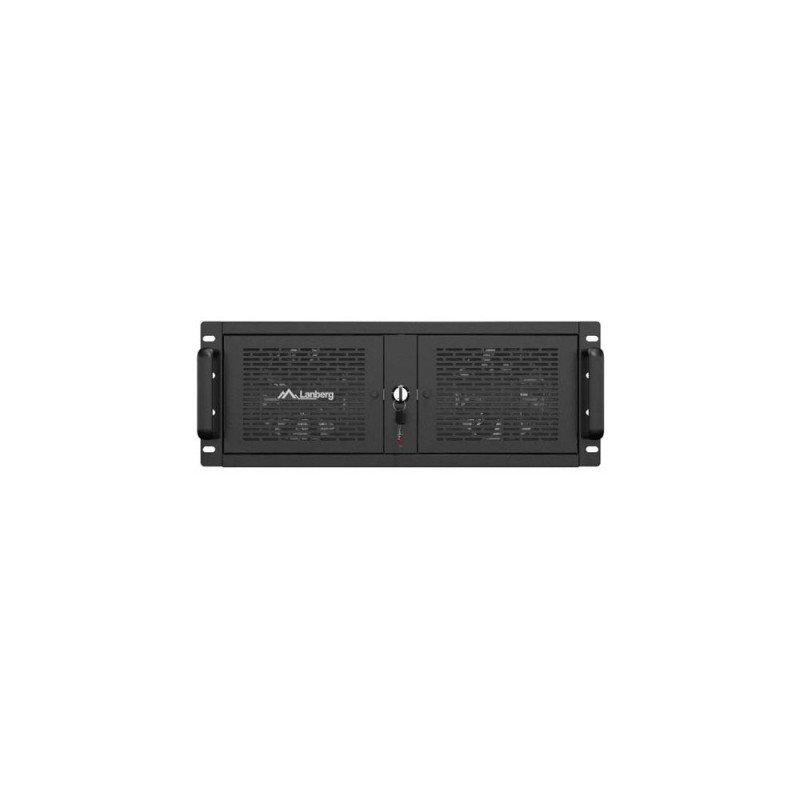

A well-designed 19” RACK in a 4U format

The enclosure has been designed for installation in standard 19” rack-mount server cabinets. Its 4U height provides significantly more space than lower server designs, making it easier to install components, route cables and expand the configuration at a later date.

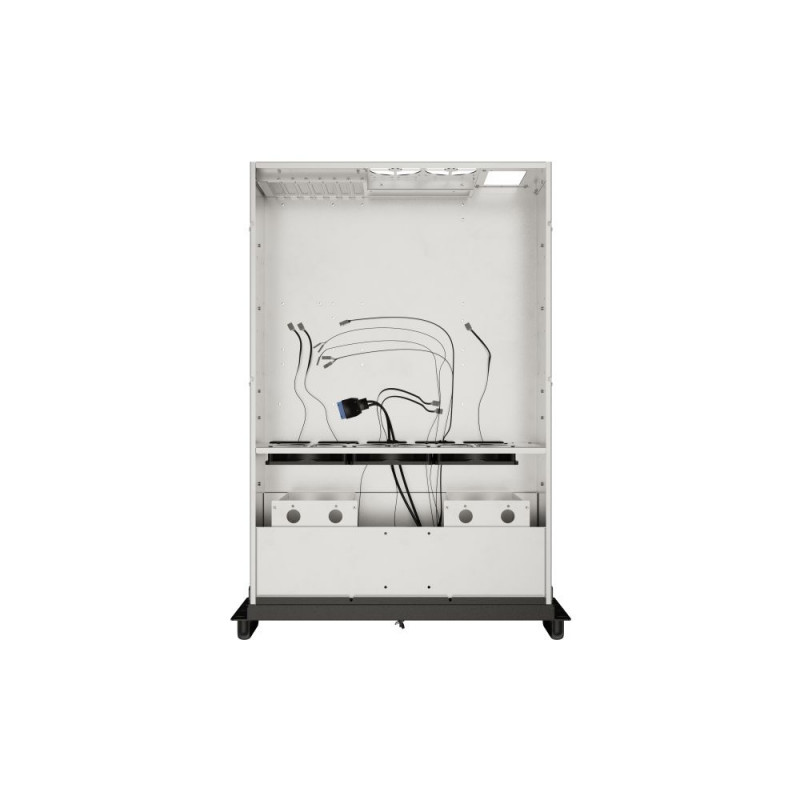

The generous internal space allows you to plan the layout of components comfortably and maintain proper airflow. The case can therefore serve as the basis for both a standard server and a high-performance workstation designed for professional use.

Support for E-ATX and SSI EEB motherboards

The spacious mounting area allows for the installation of motherboards in formats up to E-ATX and SSI EEB. This enables the use of advanced server and workstation platforms equipped with extensive power supply sections, a large number of RAM banks and numerous expansion card slots.

Its compatibility with large motherboards makes this case ideal for building high-performance computing systems, file servers, virtualisation machines, monitoring systems and workstations requiring high computing power.

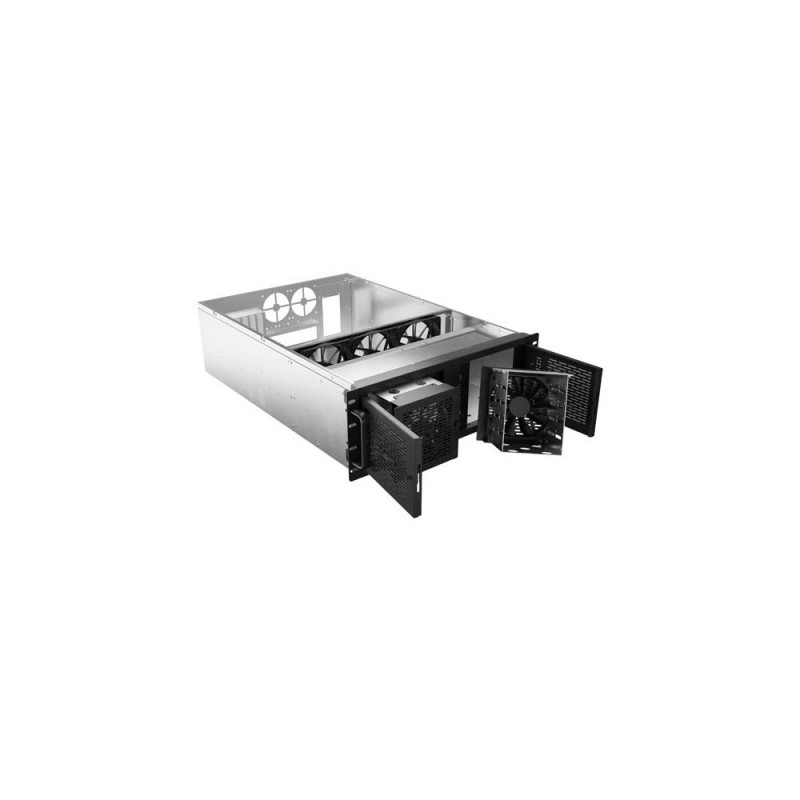

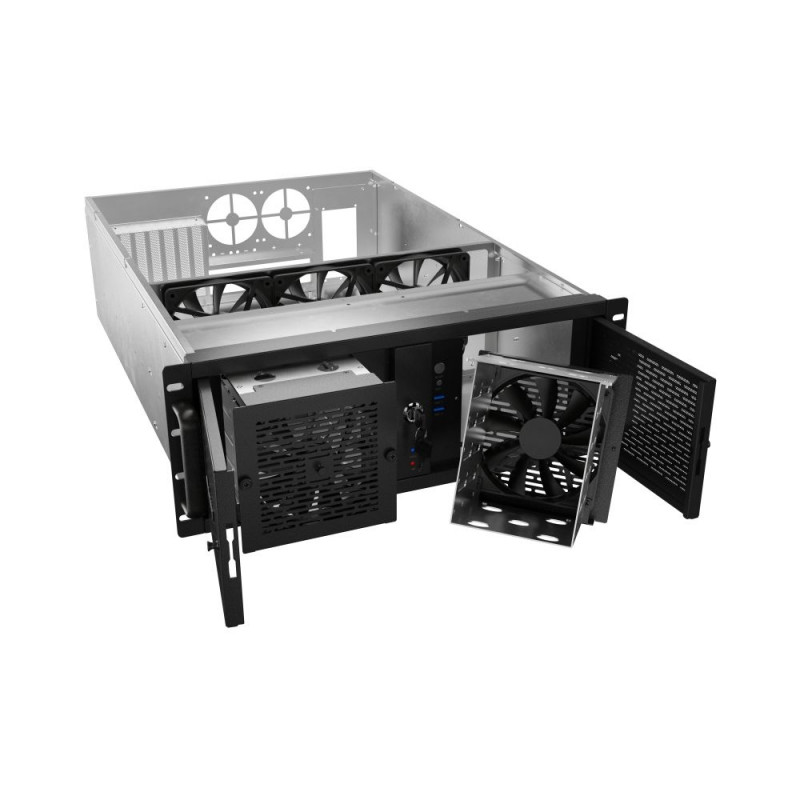

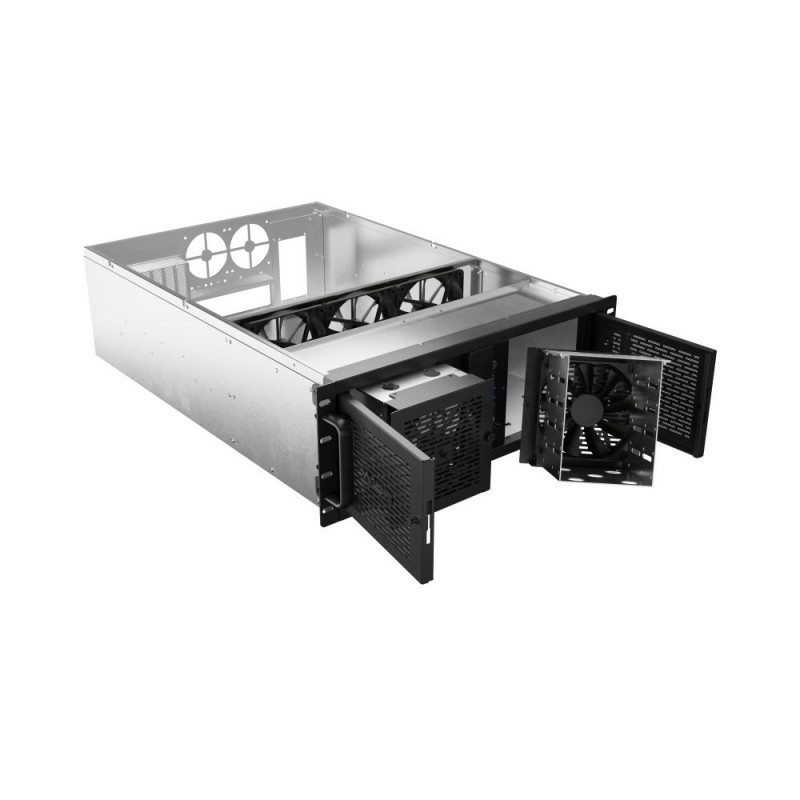

Space for up to 15 HDD and SSD drives

The chassis offers extensive storage expansion options. With the right configuration, it can accommodate up to 10 3.5-inch drives and 5 2.5-inch drives, providing space for a total of 15 storage devices.

Such a large installation capacity allows for the creation of multi-drive arrays, NAS servers, archiving and backup systems, and environments for storing large amounts of data. The ability to combine high-capacity hard drives with fast SSDs makes it easier to tailor the configuration to the requirements of a specific application.

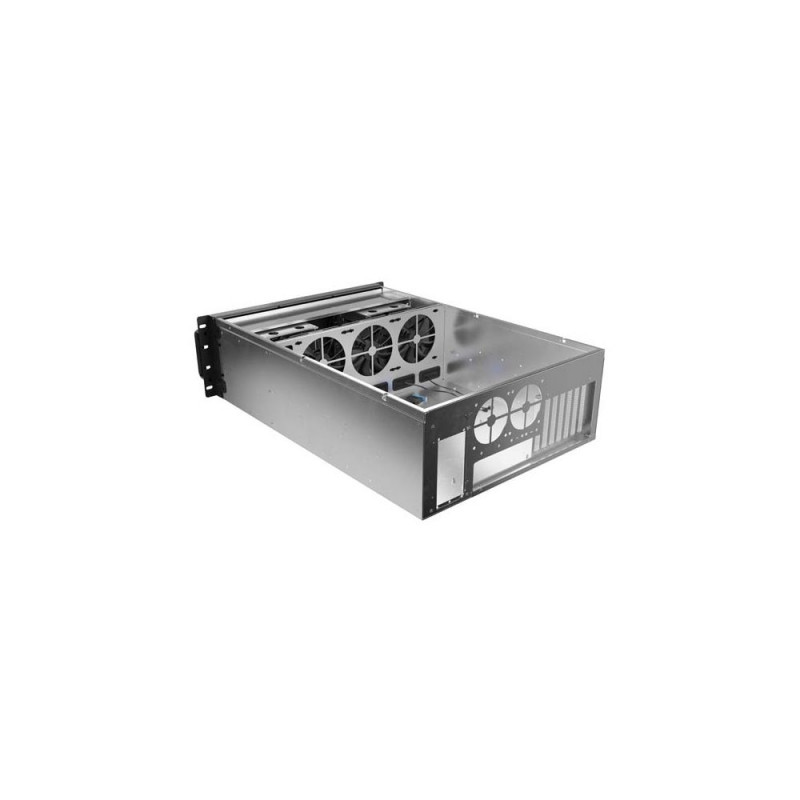

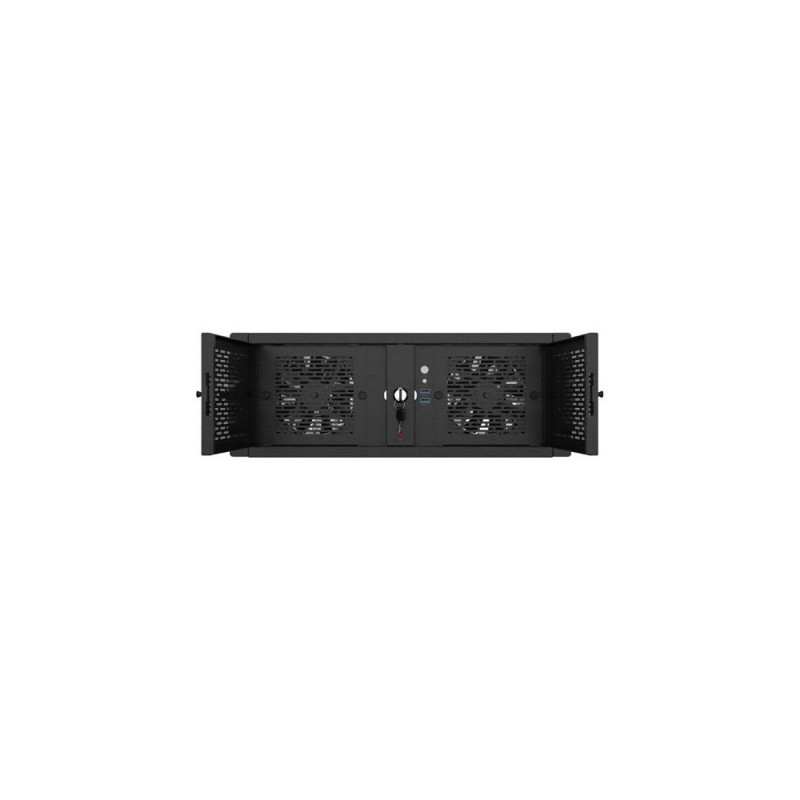

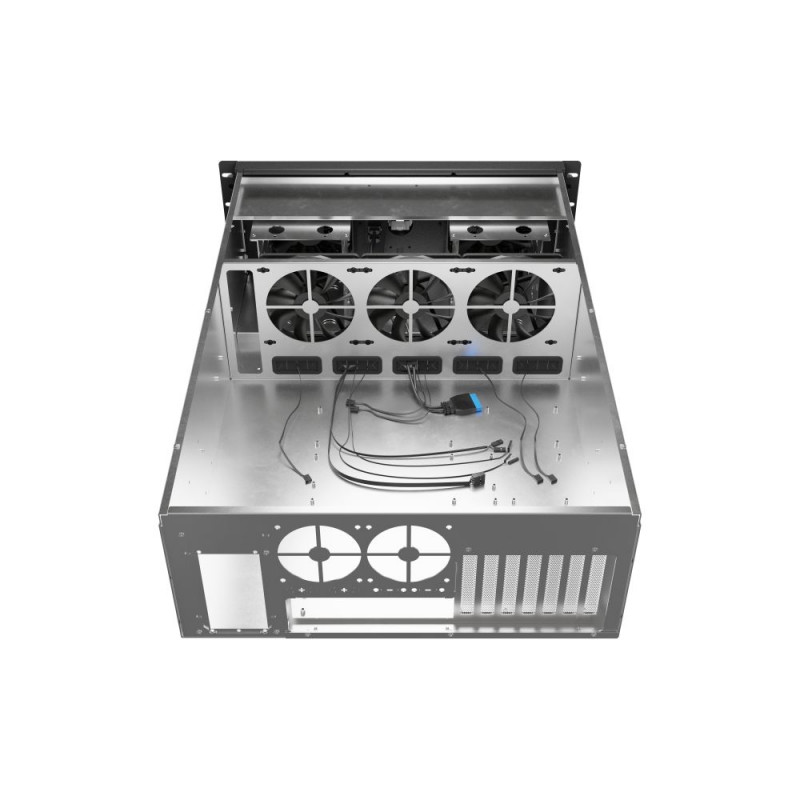

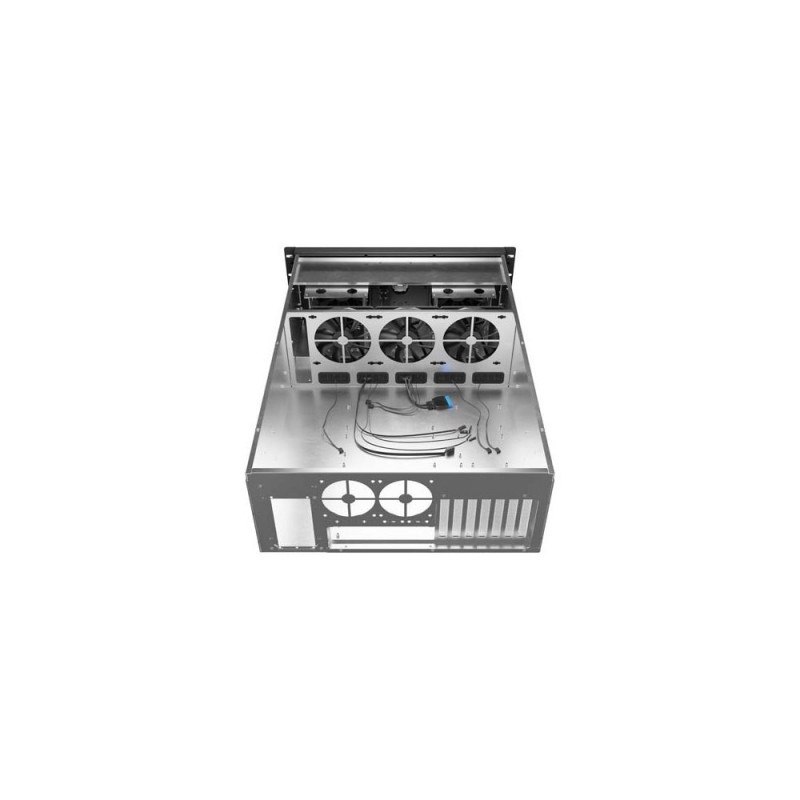

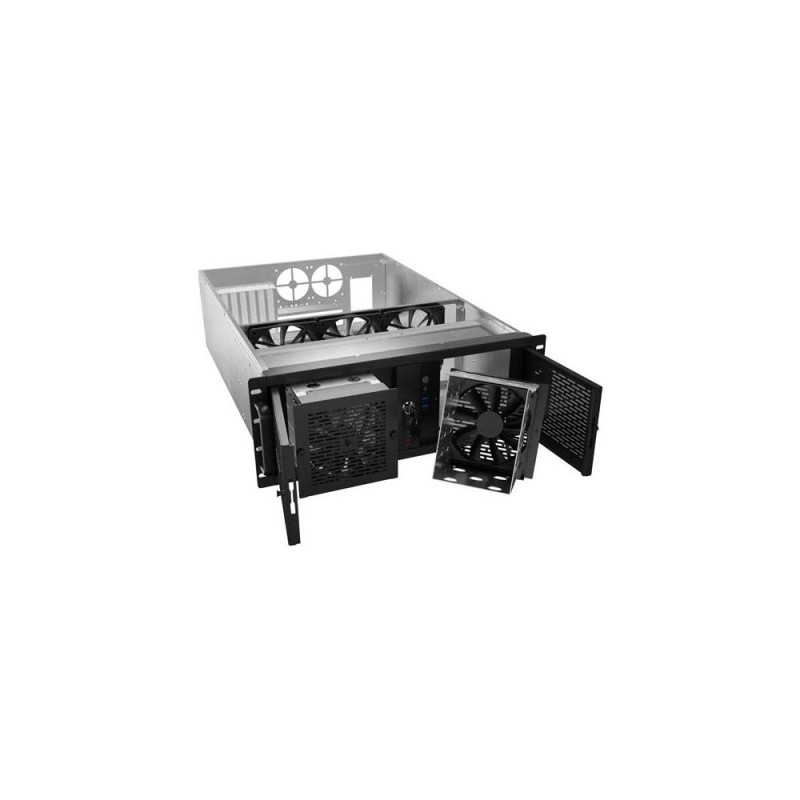

Efficient cooling with 5 x 120 mm PWM fans

Proper airflow is crucial for the stable operation of a high-performance server. That is why the case comes fitted as standard with five 120 mm PWM fans, whose speed can be adjusted according to the current temperature of the components.

The use of large fans helps to efficiently dissipate heat from inside the case, whilst PWM control ensures the right balance between cooling performance and noise levels.

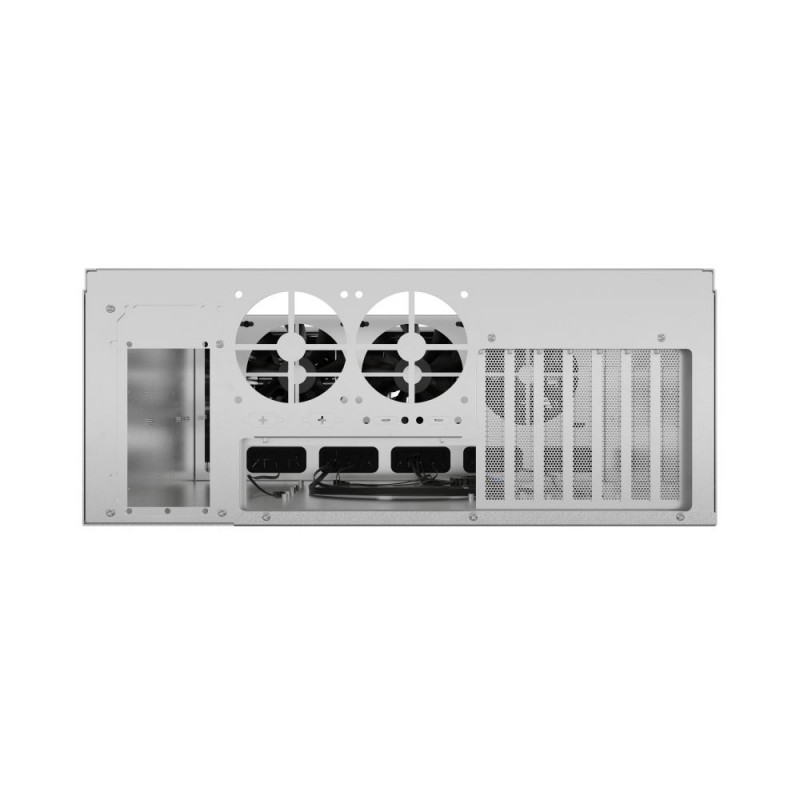

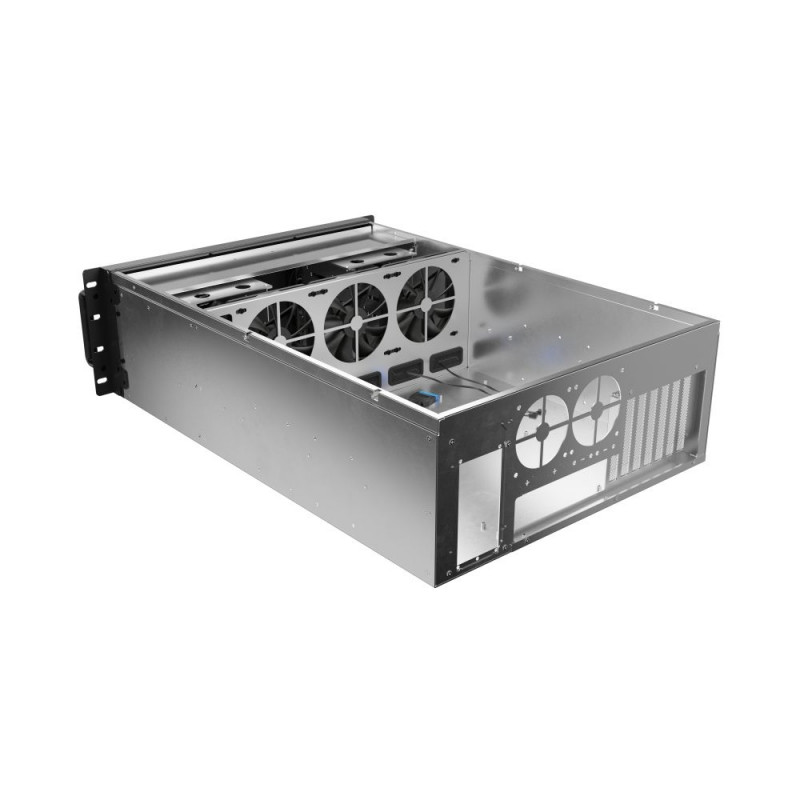

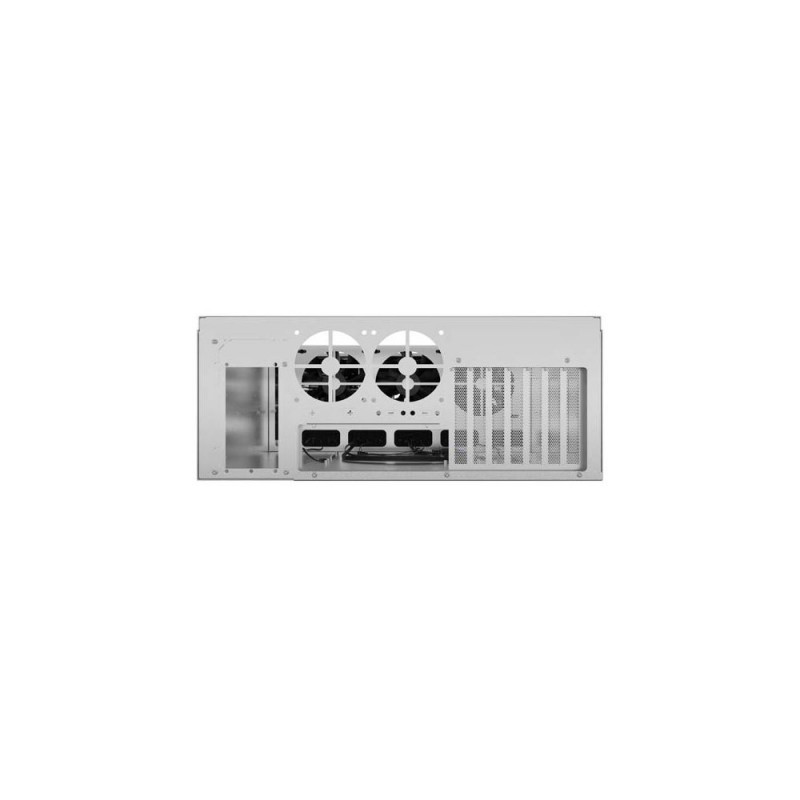

The rear panel also features space for mounting two additional 80 mm fans. These optional fans can further assist in removing hot air and improve airflow throughout the entire unit.

Compatibility with AIO liquid cooling systems

The case also supports all-in-one (AIO) liquid cooling systems. This allows for the use of high-performance cooling solutions designed for modern server and desktop processors, which can generate significant amounts of heat during intensive use.

The option to use an AIO cooling system increases configuration flexibility and makes it easier to build a high-performance workstation or server where stable CPU temperatures are essential, even under prolonged heavy loads.

Wide compatibility with modern components

The 4U format allows for the installation of CPU coolers up to 155 mm in height. This means that users are not limited solely to the low-profile coolers typically used in smaller server chassis.

Expansion cards up to 330 mm in length can also be installed inside. This ensures compatibility with a wide range of modern graphics cards, disk controllers, network cards, computing accelerators and other components used in high-performance servers and professional workstations.

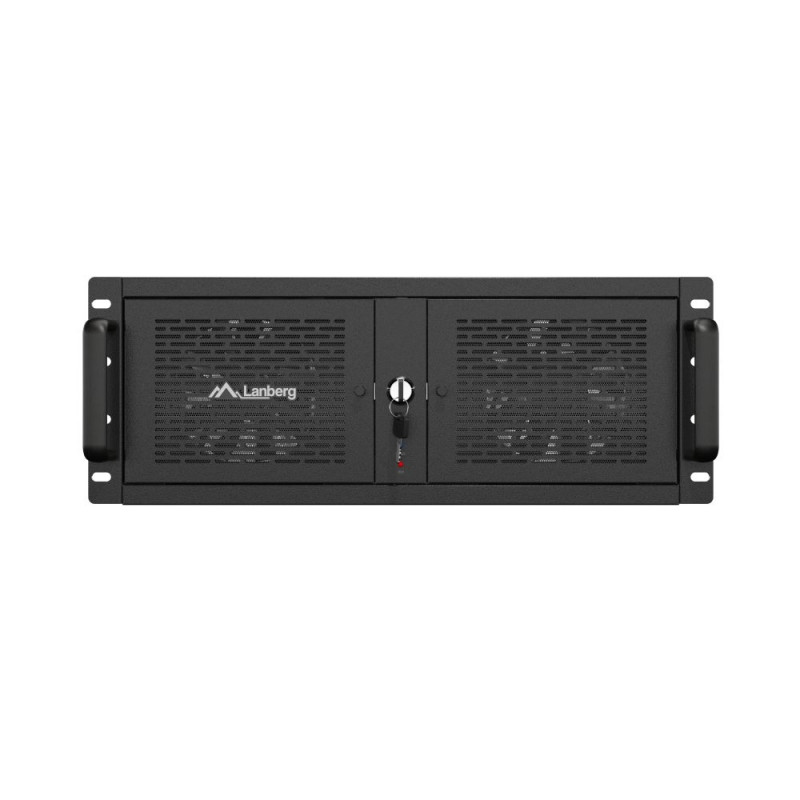

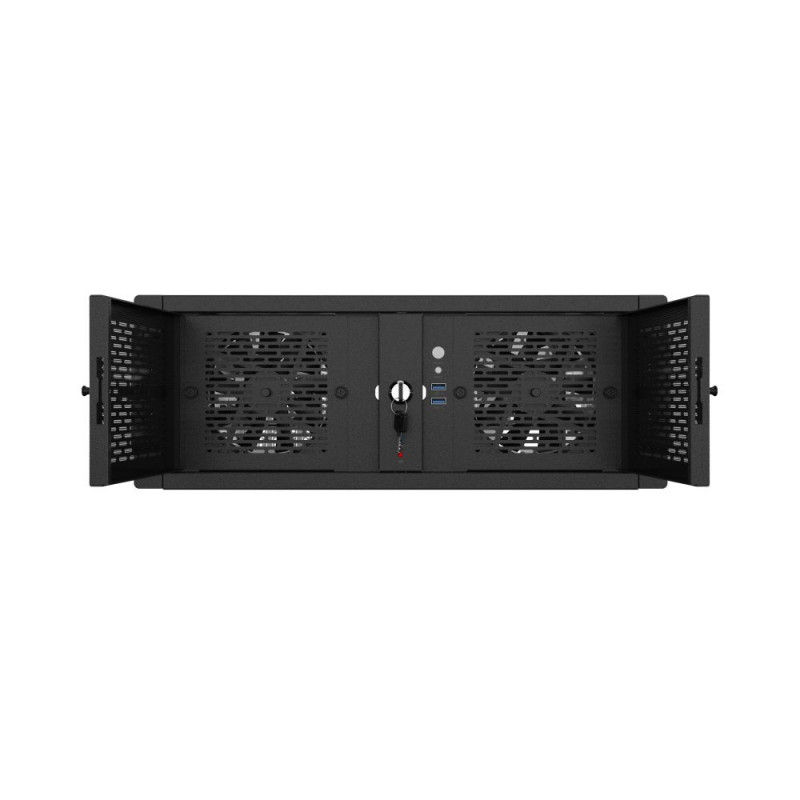

Dust filters designed to make maintenance easier

The housing is fitted with dust filters, which help to reduce the amount of dust entering the interior. The replaceable filter at the front can be easily removed and cleaned, which simplifies regular server maintenance.

Specification
ICT height 4 U
Size 19"
Motherboard form factor ATX, E-ATX, ITX, Micro-ATX, SSI CEB, SSI EEB
Number of installed fans 5
Installed fans 5x 120 mm PWM
Fan lifetime 50000 h
Maximum fan speed +/- 10% 1500 RPM
Maximum fan airflow 36.5 CFM
Fan noise level 12.8 dB
Maximum CPU cooling height 155 mm
Maximum length of expansion cards 330 mm
Number of 2.5" drive bays (SSD/HDD) 5
Number of 3.5" drive bays (SSD/HDD) 10
Number of expansion slots 7
Compatible power supply standard ATX, SFX
The maximum length of the PSU 200 mm
Power supply included No
Protections Anti-dust filters
Connectors USB 3.0 Type-A
I/O panel Power & Reset button, USB 3.0 Typ-A x2
Hot-swap No
Work signal LED
Material Steel, Galvanized steel
Colour Black, Silver
Environment humidity 35 - 85 %
Working depth 700 mm
Upper & lower panel thickness 1.2 mm
Side panel thickness 1.2 mm
Other elements sheet thickness 1.2 mm
Length 650 mm
Width 430 mm
Height 176 mm
Weight 17.4 kg

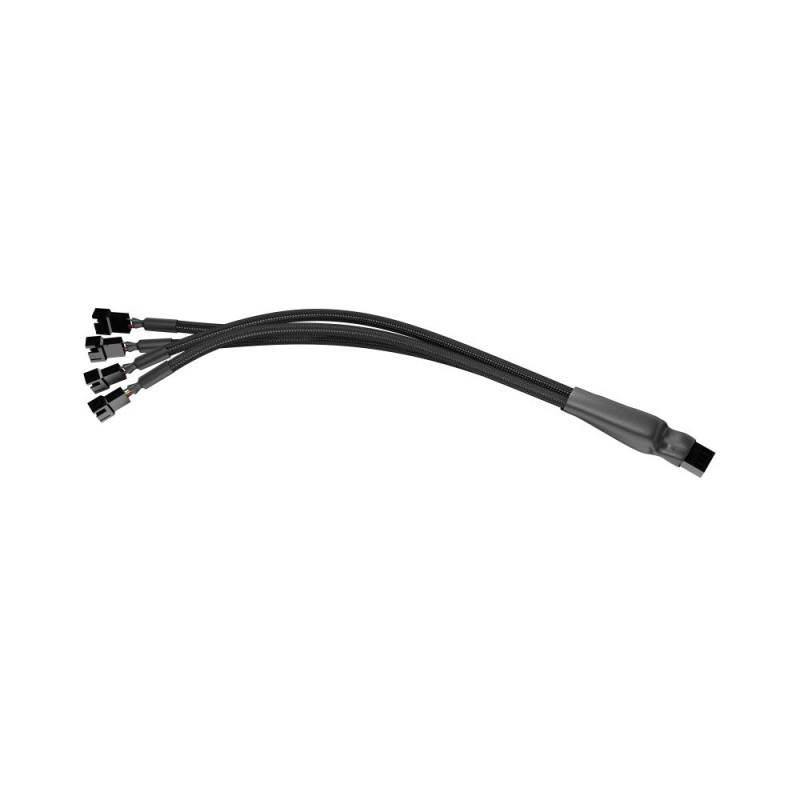

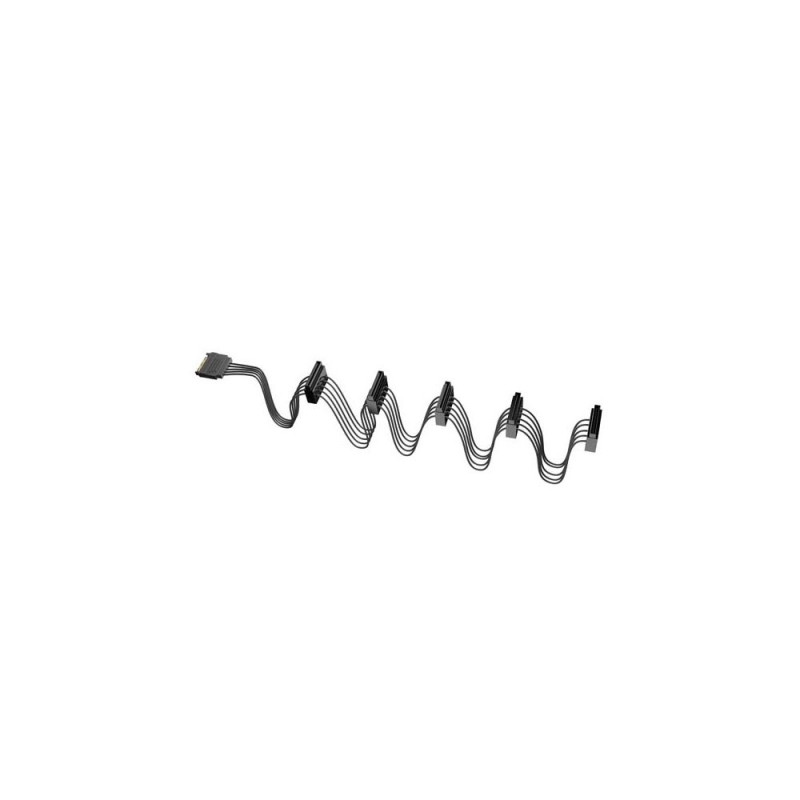

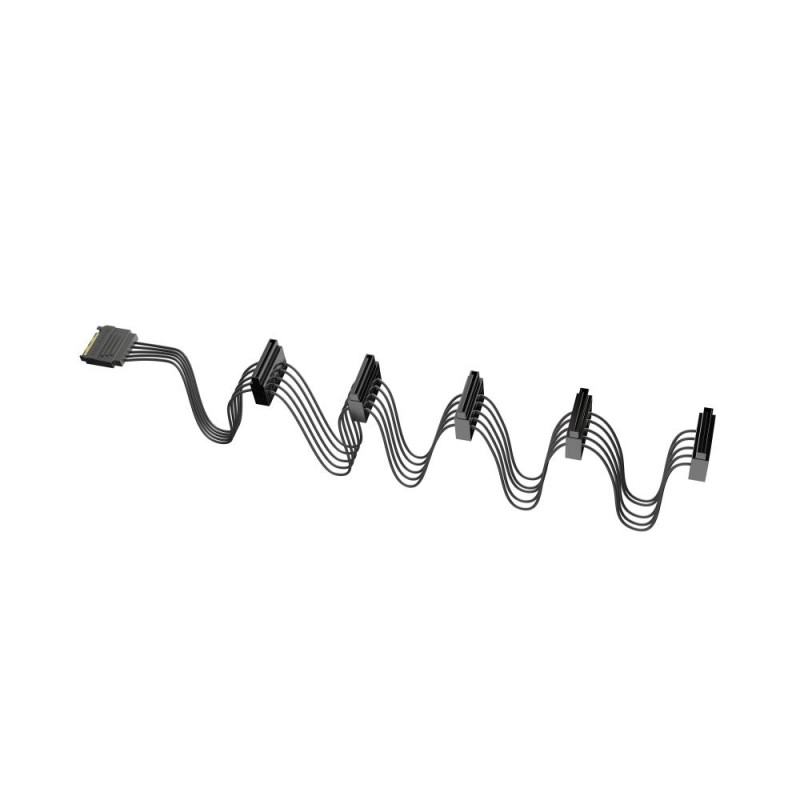

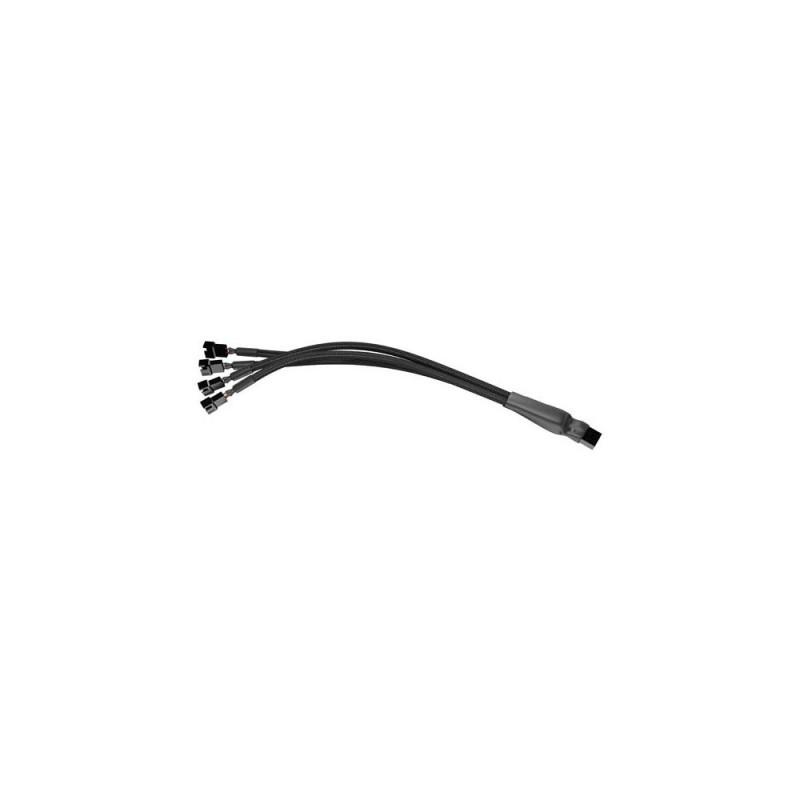

Included Accessories Replaceable front dust filter, 2x PWM 4-PIN fan splitter , 2x power splitter SATA x5

Mõõtmed ja kaalud

Brutokaal
17.4 kg
Pakendi laius
43 cm
Pakendi kõrgus
17.6 cm
Pakendi pikkus
65 cm

Toote koodid

EAN
5901969448818
Tootja kood
SC01-6504-12B
